How to Seal a Garage Door
Learn how to seal a garage door with bottom seals and jamb weatherstripping. This step-by-step tutorial covers materials, measurements, installation, and maintenance for better energy efficiency and comfort.
Seal a garage door by installing a bottom seal and jamb weatherstripping, trimming to fit, and testing for gaps. Start by cleaning edges, removing old seals, and measuring openings. According to GarageDoorAdjust, address the bottom seal first for the tightest fit.
Why sealing a garage door matters
Sealing a garage door is more than just keeping out chilly air. A well-sealed door prevents drafts, moisture, dust, pests, and wind-driven rain from entering the garage. When you tighten the building envelope, you create a more comfortable space adjacent to living areas and reduce energy loss from seasonal temperature swings. The GarageDoorAdjust team notes that a properly sealed door helps maintain stable temperatures year-round and can contribute to lower heating and cooling costs. Beyond energy savings, sealing minimizes condensation on walls and stored items, reduces noise transfer, and protects tools and vehicles from moisture damage. In climates with large temperature differences, a durable seal is a small investment that pays off through consistent comfort and fewer weather-related maintenance issues. A good seal also supports the door’s longevity by reducing wear on fasteners and framing due to temperature-driven expansion and contraction.
Tools & Materials
- Garage door weatherstrip kit (bottom seal)(Choose a bulb or fin seal compatible with your door bottom width.)
- Door jamb weatherstripping (pile or vinyl)(Self-adhesive or screw-on options work; pick the one your door frame accommodates.)
- Utility knife or sharp scissors(For clean cuts; keep a straight edge handy.)
- Measuring tape(Accurate measurements prevent gaps or overhangs.)
- Caulk gun and exterior-grade sealant(Use where small gaps exist around thresholds or jambs.)
- Masking tape(Helpful to hold materials temporarily during installation.)
- Cleaner/degreaser(Wipe surfaces clean and dry before adhesive work.)

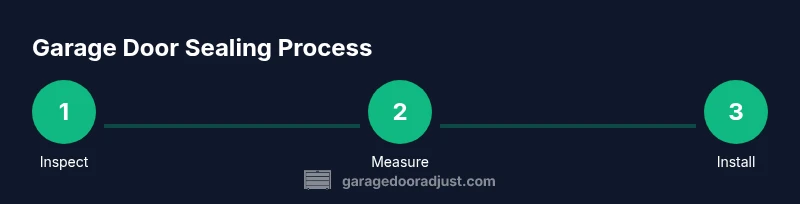

Steps
Estimated time: 60-90 minutes
- 1
Power down the opener and inspect
For safety, unplug the garage door opener or switch off the circuit. Visually inspect the door and frame for damage, rust, or warped sections that could affect sealing. If you find bent tracks or loose components, address those issues before sealing. This prevents sealing from masking underlying problems and keeps the door running smoothly.
Tip: Always confirm the door cannot move by attempting a manual lift with the opener unplugged. - 2
Remove or prepare the old bottom seal
If an old bottom seal exists, remove it or cut it away so you can start fresh. Take note of how the seal oriented itself so you can replicate the setup with the new seal. Clean the door edge where the new seal will contact the frame to ensure strong adhesion or a clean fit.
Tip: Take a quick photo of the prior seal position for reference during installation. - 3
Clean and dry the contact surfaces
Wipe the bottom edge and vertical jambs with a cleaner/degreaser, then dry thoroughly. Remove any old adhesive residue and allow the surface to dry completely. A clean, dry surface improves seal adhesion and longevity.
Tip: Avoid moisture; damp surfaces can prevent proper sealing and adhesive curing. - 4
Measure, cut, and fit the bottom seal
Measure the door width and cut the bottom seal a fraction longer to ensure coverage without overhang. Use a sharp knife and straight edge to get clean, square cuts. Test-fit the seal along the entire bottom edge before final attachment.
Tip: Cut slowly and verify each end aligns with the door corners before final trimming. - 5
Install the bottom seal along the door
Press the seal into place along the bottom edge. If you’re using a fastener-based seal, install screws or clips at regular intervals per the kit instructions. For adhesive seals, apply even pressure along the length for a strong bond and allow any recommended curing time.
Tip: Start at the center and work toward the ends to minimize gaps at the edges. - 6
Attach jamb weatherstripping on vertical edges
Apply or screw in the vertical jamb weatherstripping along both sides of the door opening. Ensure the contact surface runs flush with the door edge, creating a tight seal when closed. Trim excess material and seal any minor gaps with the appropriate adhesive if needed.
Tip: Run a dry fit test first to check that the weatherstripping doesn’t hinder the door’s travel. - 7
Seal gaps, re-test operation, and adjust
Close the door and observe for even gaps along the bottom and sides. Re-cut or reposition seals if you notice gaps, and seal small interior gaps with exterior-grade caulk. Reconnect power and verify smooth operation, listening for any binding or binding noise during movement.
Tip: Test with the door both fully closed and fully open to ensure consistent contact.
Got Questions?
What is the best material for garage door seals?
Neoprene or vinyl seals with UV resistance are common choices for garage doors. They balance durability with flexibility and perform well across a range of temperatures. Choose a material compatible with your climate and door type.
Choose neoprene or vinyl seals with UV resistance for durability and flexibility; pick based on your climate and door type.
Is sealing a garage door a DIY-friendly task?
For most homes, sealing a garage door is a doable DIY task with basic tools. Follow the step-by-step guide, take measurements carefully, and test the door’s operation after installation. If the door malfunctions, consult a professional.
Yes, it’s generally a DIY task if you follow the steps and test the door after installation.
Will sealing improve energy efficiency?
Sealing reduces drafts and heat transfer around the door, contributing to a more comfortable garage and adjacent living spaces. It’s one of the most cost-effective upgrades for weatherproofing a home.
Sealing reduces drafts and heat transfer, making the space more comfortable and efficient.
Can I seal a garage door in winter?
Yes, but adhesive curing may take longer in cold temperatures. Plan installation for a day with mild conditions, or allow extra curing time per the product instructions.
You can seal in winter, but expect slower adhesive curing and plan for extra time.
What if the door still leaks after sealing?
Inspect for hidden gaps around the frame, in the header, or at the top of the door. Consider additional weatherstripping or door insulation in problem areas and verify there are no structural issues that hinder seal contact.
If leaks persist, check for hidden gaps and consider extra insulation or professional assessment.
How long should seals last before replacement?
Seal longevity varies with climate and use. Inspect seals annually for wear, cracks, and compression; replace when gaps develop or the material cracks.
Inspect annually and replace when you see wear or gaps.
Watch Video
Quick Summary
- Assess existing gaps and choose compatible seals.
- Seal bottom first, then the vertical jambs for best results.
- Prepare clean, dry contact surfaces for durability.
- Test and adjust after installation to avoid leaks.
- Schedule seasonal checks to maintain a tight seal.
