Bottom Seal on Garage Door: Inspection, Replacement, and Maintenance
Learn how to inspect, measure, and replace the bottom seal on a garage door to stop drafts, moisture, and pests. This step-by-step guide covers tools, selection, installation, and maintenance for a snug, energy-efficient door.
By the end of this guide you will be able to inspect, measure, and replace the bottom seal on a garage door. You’ll confirm seal profile, trim it to length, clean the track edge, and install a compatible bulb or fin seal. Safety comes first: disconnect power if needed and work calmly to avoid damage.
Understanding the bottom seal on your garage door
The bottom seal, also called a door seal or weather seal, sits at the bottom edge of the door and creates a flexible barrier between the door and the concrete floor. It helps block drafts, moisture, dust, and pests from entering your garage. Many doors use a vinyl or rubber bulb seal that sits in a channel along the door bottom, while some installations use a flexible fin seal that presses against the floor. According to GarageDoorAdjust, the bottom seal on a garage door plays a critical role in energy efficiency and interior comfort by reducing air leakage and moisture intrusion. A well-maintained seal makes the door operate more smoothly and reduces wear on other weather-stripping components. The seal profile matters: if you have a bulb-style seal, you’ll replace it differently than if you have a flexible fin seal. Before you buy, identify your seal profile by inspecting how the seal is mounted and how it sits when the door is closed.
Signs the bottom seal is worn or failing
A damaged bottom seal can manifest in several ways. Look for cracks, tears, or chunks missing from the seal. If the seal is compressed excessively when the door is closed or if you can see daylight when the door is shut, it’s time for replacement. You may also notice increased drafts, cold floors, or moisture accumulation inside the garage after rain. The seal can also become stiff or brittle in cold climates. If you have a small gap but see no obvious damage, the seal may still lose elasticity and require trimming or realignment. GarageDoorAdjust analysis highlights that even small gaps around the seal can contribute to noticeable energy loss and humidity changes inside the garage.
How to measure the seal profile and fit
Begin by removing any loose debris from the door bottom lip and cleaning the sealing groove with a damp rag. Measure the door width and the seal thickness to ensure you choose a profile that fits the existing channel or track. If you have a bulb-style seal, measure the diameter of the bulb and the width of the channel; for a fin-seal, measure the thickness and the height of the fin. When replacing, you’ll typically trim the new seal to match door width, accounting for any slight overhang at the corners. Always cut straight and test fit before final mounting to avoid gaps at the corners. If your door is insulated, consider a seal that complements insulation performance for consistent temperatures inside the garage.
Choosing the right bottom seal type
There are a few common seal profiles: bulb seals (that snap into a track), fin seals (that press against the floor), and vinyl-tube or foam-tipped variants. The right choice depends on your door type, climate, and how the door meets the floor. Bulb seals provide a strong, long-lasting barrier in moderate climates, while fin seals can yield a tighter seal on uneven floors. If you have a concrete floor with irregularities, a flexible fin or foam-tadded seal may compensate better. When selecting a seal, verify compatibility with your door bottom groove and confirm if adhesive or mechanical mounting is needed. The goal is a seal that compresses enough to close gaps without creating binding resistance when the door opens.
Step-by-step replacement overview (high level)
Replacing a bottom seal typically involves removing the old seal, cleaning the mounting surface, measuring and cutting the new seal, and installing it into the channel or against the floor. If the seal is adhesive-backed, you’ll trim to length and press firmly to ensure a good seal. For bulb-style seals, align the bulb with the channel and snap or slide it into place. Always test the door’s operation after installation to ensure the seal does not interfere with movement and that it makes full contact with the floor when closed. This overview is followed by a detailed, step-by-step guide later in the article.
Maintenance tips to extend seal life
Regular maintenance can extend the life of your bottom seal. Clean the seal with mild soap and water to remove dirt that can wear the material. Inspect for cracks or hardening every 3-6 months, especially in extreme temperatures. Lubricate hinges and moving parts as needed, but avoid applying oil directly to the seal, which can degrade some materials. If you have winter weather, keep the seal free of snow and ice buildup and promptly address any moisture intrusion. Prompt replacements prevent moisture damage to floors and cabinetry, and help maintain energy efficiency.
Authority sources and further reading
For authoritative guidance on weatherstripping and door seals, see the following sources:
- https://www.energy.gov/energysaver/weatherstripping-windows-doors
- https://extension.illinois.edu/home-improvement/weatherstripping
- https://www.energy.gov/eere/buildings/articles/weatherstripping-guide
These resources provide official perspectives on weather seals, installation tips, and best practices for maintaining energy efficiency in homes and garages.
Quick-start checklist
- Identify seal type (bulb vs fin) and measure width, thickness, and channel dimensions.
- Gather tools: replacement seal, knife or scissors, cleaner, rag, measuring tape.
- Remove old seal, clean channel, and dry completely.
- Cut new seal to length, install, and test door operation.
- Inspect for gaps and re-adjust if needed. If in doubt, consult a pro.
Safety and maintenance reminders
Always disconnect any power to automatic door openers before working near moving parts. Wear safety glasses when handling sharp edges. Do not attempt a seal replacement if you notice frayed cables or a compromised spring system. If you’re unsure about alignment or seal compatibility, seek professional help to avoid door imbalance or injury.
Authority sources - extended
For a deeper dive into weatherstripping and energy efficiency, consult official resources from government and university extensions. These sources reinforce best practices and safety considerations when selecting and installing door seals.
Tools & Materials
- Replacement bottom seal (bulb or fin profile)(Match your door's seal profile and length.)
- Utility knife or scissors(To trim the seal to length.)
- Rubbing alcohol or mild cleaner(For cleaning the mounting surface.)
- Rags or lint-free cloths(For cleaning and drying.)
- Measuring tape(To measure width, depth, and door height.)
- Masking tape or pins (if required by seal type)(Helpful for staging or securing during install.)
- Adhesive (if seal uses adhesive backing)(Check seal instructions; some seals rely on friction fit.)
- Small screwdriver or pry tool(To remove old seal from channel if stuck.)

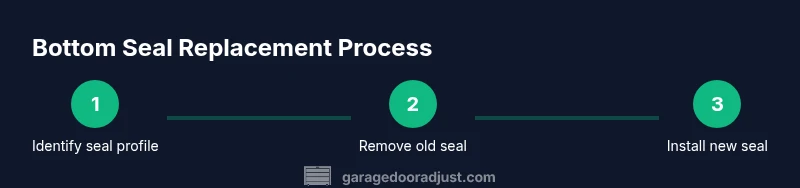

Steps
Estimated time: 45-60 minutes
- 1
Identify and measure seal profile
Inspect the existing bottom seal to determine whether it's a bulb-style, fin-style, or other profile. Use a measuring tape to record the width of the seal, height, and the channel dimensions. This step ensures you buy the correct replacement and avoid returns.
Tip: Take photos of the seal and channel before removal to guide selection. - 2
Remove the old seal
Carefully pry or lift the old seal out of the track or surface. If it’s held by adhesive, score the edge with a utility knife and peel away slowly to minimize damage to the channel. Clean any residue from the mounting surface with rubbing alcohol.
Tip: Work slowly to avoid bending the door edge or damaging the channel. - 3
Prepare the channel and surface
Wipe the channel or contact surface thoroughly to remove dust, oil, and debris. Let the surface dry completely before installing the new seal to ensure proper adhesion or fit.
Tip: A dry, clean surface helps the new seal seat evenly. - 4
Cut the new seal to length
Lay the new seal along the door bottom and mark the exact length. Use a sharp knife or scissors to cut straight, with no frayed edges. For wider doors, cut two pieces if needed to avoid gaps at the corners.
Tip: Allow a slight extra length to accommodate any rounding at edges. - 5
Install the new seal into the channel or against the floor
For bulb seals, align the bulb with the channel and press firmly until it seats. For fin seals, press the fin against the floor from one end to the other, ensuring even contact. If adhesive-backed, remove backing and press along the entire length.
Tip: Work from center outward to ensure even seating. - 6
Test the door operation and seal contact
Close and open the door several times to confirm smooth operation and full contact with the floor when closed. Look for daylight gaps on the sides and at corners; adjust if needed.
Tip: If the door drags, you may have over-tightened the seal or misaligned it. - 7
Finish and clean up
Wipe away any fingerprints or adhesive residue, and store tools in a safe place. Ensure the floor is clear of debris that could interfere with the seal.
Tip: Keep a small maintenance log noting the date of replacement. - 8
Schedule maintenance and inspections
Set a reminder to inspect the seal every 3-6 months, especially after seasonal changes. Replace worn seals promptly to maintain energy efficiency and moisture protection.
Tip: Proactive maintenance saves energy and increases door longevity.
Got Questions?
What is the bottom seal on a garage door?
The bottom seal is a weatherproof gasket that blocks drafts and moisture at the door’s edge. It sits in the door bottom or against the floor and compresses when the door closes to form a tight seal.
The bottom seal is a weatherproof gasket that blocks drafts and moisture at the door’s edge.
How do I know if my bottom seal needs replacement?
Look for cracks, tears, or missing chunks in the seal. If daylight shows when the door is closed or you feel drafts on the floor, the seal likely needs replacement.
If you see cracks or daylight when the door is closed, it’s time to replace the seal.
Can I install a new bottom seal myself?
Yes, with the right profile and basic tools. Follow the manufacturer’s instructions for cutting and mounting, and ensure the door operates smoothly after installation.
Yes, you can install it yourself, just follow the seal’s instructions and test the door afterward.
Which type of seal should I buy for my door?
Choose a profile that matches your door bottom channel—bulb for channels and fins for flat bottoms. Consider climate and floor condition to pick a flexible option if your floor is uneven.
Pick a bulb or fin seal that fits your door bottom and matches your climate and floor.
Will replacing the seal fix moisture leaks when the door is closed?
A new, properly fitted seal dramatically reduces moisture intrusion when closing the door. If leaks persist, inspect the floor edge, seals on side tracks, and the door alignment.
A proper seal can greatly reduce moisture intrusion when the door closes.
How do I maintain the bottom seal after installation?
Regularly clean the seal and edge, inspect for wear every few months, and replace when hardening or cracking occurs. Avoid oil-based lubricants on the seal surface.
Keep it clean, inspect it regularly, and replace when signs of wear appear.
Watch Video
Quick Summary
- Identify seal profile before buying.
- Clean and prep the surface for best fit.
- Test door movement after installation.
- Regularly inspect and replace worn seals.
- Use correct tools to avoid damage.
