Garage Door Seal for Top or Sides: How-To Guide
Learn to seal the top and sides of your garage door for better insulation and weather protection. This guide covers seal types, sizing, installation steps, and safety tips to keep drafts, moisture, and pests out.
Goal: Install or replace the garage door seal along the top jamb and side jambs to stop drafts and moisture. Start by inspecting the existing seal, measure gaps, and select a compatible vinyl/EPDM or foam profile. Then cut to fit and secure with adhesive, screws, or weatherstripping retainers. This quick sequence establishes a tight, durable seal.
Why sealing the top or sides matters
Sealing the top and sides of a garage door is a fundamental step in reducing energy loss, drafts, dust, and pests that can enter the space. The top jamb and side jambs are common gaps where air sneaks in, especially in older doors or doors that have shifted over time. According to GarageDoorAdjust, addressing these gaps not only improves interior comfort but also helps HVAC systems run more efficiently, potentially lowering utility costs over time. A well-sealed garage can also protect stored items from seasonal temperature swings and moisture intrusion, extending the life of tools, sports equipment, and seasonal gear. Moreover, eliminating gaps minimizes the transfer of outdoor noise, making the garage a more useful workspace. When you address the top and sides first, you set a solid foundation for any future weatherproofing, including door insulation upgrades and improved curb appeal.
In practice, the seal you choose for the top and sides should be compatible with your door type and track configuration. A proper seal is more than a simple strip; it should compress evenly, return to shape after compression, and resist degradation from UV exposure and temperature changes. The right seal creates a continuous barrier that reduces air leakage without binding the door or causing it to rub on the frame. If you notice persistent air leaks after installation, re-check mounting height, alignment, and whether the jambs have shifted, which can create new gaps. The goal is a stable, uniform contact along the header and vertical edges when the door is closed.
For DIY homeowners, starting with the top seal is often the easiest and most cost-effective option. Once the top seal is solid, you can extend weatherproofing to the side jambs using compatible profiles that seal along the vertical edges. This approach minimizes the need for professional refinishing and allows you to assess performance before tackling more complex door components like tracks or hinges. Throughout this process, wear protective gloves and safety glasses to guard against sharp edges and adhesive solvents. The GarageDoorAdjust team emphasizes patience and precise measurement to ensure a long-lasting fit.
note”:null},
toolsMaterialsEpochPlaceholder
Tools & Materials
- Measuring tape(At least 10 ft (3 m) long to measure door widths and jamb gaps accurately)
- Utility knife or scissors(For trimming seals to length without fraying)
- Scissors or shears(Preferable for foam profiles to get a clean cut)
- Clean rags and isopropyl alcohol(Clean jamb surfaces before applying adhesive or sealant)
- Adhesive or contact cement compatible with vinyl/EPDM(Check product compatibility with metal and concrete substrates)
- Silicone-based or acrylic weatherseal adhesive(Ensure it remains flexible in temperature range of your area)
- Vinyl/EPDM top seal profile(Choose a bulb, tubular, or edge seal depending on door type)
- Foam side jamb seal (tubular or foam strip)(Select a profile that compresses evenly against the frame)
- Screwdriver or drill with appropriate bits(Only if your seal uses screws or retainers)
- Weatherstripping retainers or end caps(Used for snap-in or screw-in retention systems)
- Gloves(Protect hands when handling sharp edges and solvents)

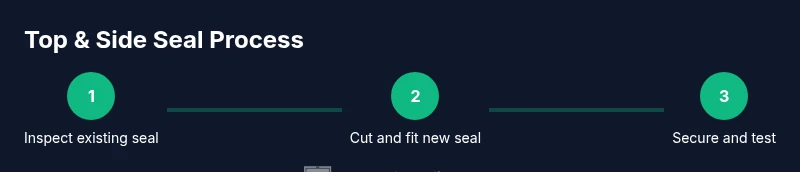

Steps
Estimated time: 60-120 minutes
- 1
Inspect existing seal and assess gaps
Visually inspect the current top and side seals for cracks, cracking, or compression gaps. Look for uneven wear, missing sections, and areas where the door frame contacts the jamb. This initial assessment helps you decide whether to replace the entire profile or only portions. Measure visible gaps with a tape measure and note any low spots on the frame.
Tip: Take photos of the current seal and gaps before removal to guide replacement and reassembly. - 2
Measure and plan cut lengths
Measure the full length of the top header and each vertical jamb. Add 1/4 inch to each measurement to allow for compression and squaring, then transfer these lengths to your chosen seal profiles. Mark cuts with a permanent marker before trimming to ensure clean, square ends.
Tip: Test fit pieces dry before applying adhesive to confirm length accuracy. - 3
Prepare jambs and remove old seal
Clean both the header and jamb surfaces with isopropyl alcohol to remove oils and dust. Gently pry off old seal with a putty knife, taking care not to gouge the metal or wood. Wipe the surfaces again to ensure a clean bonding area for the new seal.
Tip: If old adhesive remains, use an adhesive remover or solvent recommended by the seal manufacturer. - 4
Cut the top seal to size
Cut the top seal profile to the exact header length. Ensure the cut ends are clean and square to ensure a tight seal against the header. If using a bulb seal, align the bulb to face inward toward the door edge to maximize compression.
Tip: Use a straightedge to guide the cut for consistent ends. - 5
Attach the top seal
Position the top seal along the header so the seal makes consistent contact when the door is closed. Use the adhesive or retainers recommended by the seal manufacturer. Allow any solvent-based adhesive to cure as directed before proceeding to the sides.
Tip: Avoid applying adhesive near the roller tracks to prevent interference with door movement. - 6
Install side jamb seals
Trim side seals to length and press them firmly into the vertical jambs, ensuring full contact along the entire height. If using foam, compress gently to avoid an overly tight fit which could hinder door operation.
Tip: Ensure seals are aligned parallel to the door edge to prevent binding. - 7
Seal corners and test fit
Install end caps or corner pieces where your top and side seals meet to prevent gaps at junctions. Close the door slowly and observe contact along the header and sides. Patch any minor gaps with additional sealant or a supplemental strip as needed.
Tip: Test at multiple temperatures if possible, since some materials shrink or expand with temperature. - 8
Final test and adjustments
Close the door and check for uniform compression along the entire seal. Check for drag or binding by opening and closing several times. Clean up residue, and store any extra pieces for future repairs.
Tip: Keep a small spare length of seal on hand for future touch-ups. - 9
Document and monitor performance
Record the seal type, length, and mounting method for future maintenance. Monitor for any new gaps after seasonal temperature shifts and re-seat or replace segments as needed.
Tip: Regular checks every six months prevent small gaps from turning into bigger leaks.
Got Questions?
Do I need to replace the bottom seal along with the top and sides?
The bottom seal is separate and serves a different role, often forming a dust seal at ground contact. If it’s worn, replacing it can improve overall efficiency, but it’s not required to fix top/side gaps. Inspect for wear and replace as needed.
The bottom seal is a separate piece; replace it only if it shows wear or allows drafts at the floor.
How long does installation usually take?
A typical top-and-side seal installation takes about one to two hours, depending on door size and condition of jambs. Allow additional time for curing adhesive and any tweaks.
Most homeowners finish in about one to two hours, plus drying time if using adhesive.
Will this save energy in my garage?
Sealing the top and sides reduces air leakage, which can lower heating and cooling loads. The exact savings depend on climate, door condition, and home insulation. It’s a cost-effective maintenance task with tangible comfort benefits.
Yes, a good seal reduces drafts and can help your HVAC work more efficiently.
Can I install these seals myself, or should I hire a pro?
Most homeowners can install top and side seals with basic tools and careful measurements. If you have door alignment issues, damaged tracks, or suspicious springs, consider professional help to avoid safety risks.
It’s doable for most homeowners, but skip it if you’re unsure about door mechanics.
What if the seal doesn’t fit after cutting?
If lengths are off, re-measure and trim slightly to fit, ensuring clean, square ends. Avoid forcing a seal that’s too long, which can bend or create gaps.
If it’s too long, trim a bit and re-check; if it’s too short, replace with the correct length.
Watch Video
Quick Summary
- Seal top and sides for comprehensive weather protection
- Choose seal type compatible with your door and climate
- Measure carefully and trim squarely for a tight fit
- Secure with appropriate adhesive or retainers to prevent misalignment
- Test across temperature changes and adjust as needed
- Keep spare seal pieces for future maintenance
