How to Remove Battery from a Garage Door Opener: Step-by-Step
Learn the safe, proven method for removing a garage door opener battery. This guide covers power-down procedures, locating the battery, disconnecting safely, and storage or disposal tips to protect your family and home.
You will safely remove the battery from a garage door opener and disconnect power to prevent unexpected operation during maintenance. Before you begin, locate the battery compartment, identify the battery type, and gather basic tools. This guide from GarageDoorAdjust provides a clear, step-by-step approach to remove, secure, and store the battery safely.
Safety and planning before you start
When learning how to remove the battery from a garage door opener, safety is non-negotiable. Begin by minimizing the risk of injury or a surprise door movement. Unplug the opener from the wall outlet or switch off the circuit at the breaker panel. If your opener is connected to a spare battery backup, disconnect that circuit as well. Wear eye protection and gloves when handling batteries, and keep a clear space free of clutter. Read the user manual for model-specific notes, because some openers hide the battery behind covers that require a screwdriver. The goal is to create a controlled, safe workspace so you can perform the task confidently. According to GarageDoorAdjust, a calm, methodical approach reduces errors and lowers the chance of damaging components. As you plan, keep in mind the exact placement of your unit and the location of any warning labels. This step sets the stage for a smooth, safe removal of the battery from your garage door opener.
Before you touch any wiring, make sure you’ve cleared pets and children from the area. Never work on energized circuits, and avoid touching metal surfaces with bare hands when a battery is exposed. If you see corrosion, loose terminals, or leaking fluid, pause the procedure and follow disposal and replacement guidelines. This is also a good moment to confirm you have the right replacement battery if you intend to swap it after removal. A calm start followed by deliberate checks pays off in the long run and minimizes the risk of accidental activations during maintenance.
Identify the battery type and location
Garage door openers vary by model, so locating the battery and identifying its type is a crucial early step in the process. Most common residential openers house a 12-volt battery that sits in a small compartment on the back or side of the opener rail. Some newer models use a sealed rechargeable battery, while older units may employ a traditional lead-acid pack. Look for a label on the battery or inside the compartment listing capacity and chemistry. If you still can’t locate the battery, consult the owner’s manual or search the manufacturer’s support site using your model number. In many cases, the compartment is protected by a plastic cover held in place with screws or clips. Having a flashlight can help you read tiny labels and see connectors clearly. Identifying the battery type ensures you follow correct handling and disposal guidelines, which is a key part of how to remove battery from garage door opener.
Tools & Materials
- Screwdriver set (Phillips and flat-head)(For removing covers or brackets that secure the battery housing.)
- Safety glasses(Protect eyes from potential debris or battery leakage.)
- Work gloves(Grip the battery safely and avoid sharp edges.)
- Non-conductive pry tool or plastic card(Gently lift covers without scratching surfaces.)
- Flashlight(Improve visibility inside the compartment.)
- Labeling tape and marker(Label the battery and connectors for future reference.)
- Fireproof storage bag or container(Safe temporary storage if you’re not replacing immediately.)
- Replacement battery (optional)(If you’re upgrading or swapping batteries after removal.)

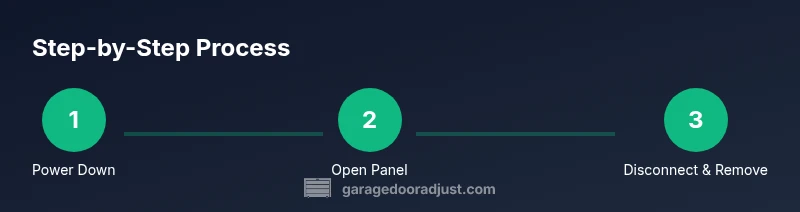

Steps
Estimated time: 15-30 minutes
- 1
Power down and unplug the opener
Confirm the unit is powered down by unplugging the wall plug or switching off the circuit at the breaker. This eliminates the risk of the door moving while you handle the battery. If there is a backup battery, disable that circuit as well. Wait 60 seconds to allow any residual charge to dissipate before you proceed.
Tip: Taking a brief pause helps prevent accidental activations and protects you from sparks. - 2
Open the battery access panel
Locate the access panel that covers the battery compartment. Use a screwdriver if needed to release screws or unclip a protective cover. Gently lift the panel away, keeping track of any screws so you don’t lose them.
Tip: Note the panel’s orientation so you can reassemble it correctly later. - 3
Disconnect the battery harness
Carefully disconnect the battery connectors or harness. Do not pull on wires; grip the plastic connector and pull straight out. Inspect connectors for corrosion or damage and set connectors aside where they won’t snag other components.
Tip: If the connector is stiff, apply a tiny amount of dielectric grease on reassembly to prevent future corrosion. - 4
Remove the battery from its housing
Lift the battery straight up and out of the compartment. If the unit is heavy or awkward to lift, have a second person assist you. Place the battery on a non-conductive surface away from metal edges.
Tip: Keep the battery upright to minimize the risk of leakage. - 5
Inspect, label, and secure the removed battery
Examine the battery for signs of leakage, bulging, or corrosion. If everything looks normal, label the battery with date of removal and model information. If you intend to reuse it later, place it in a fireproof bag or container until you handle disposal or recharge.
Tip: Labeling saves time if you return to maintenance months later. - 6
Decide on storage or disposal
If you’re replacing the battery, seal the old battery in an appropriate container per your local guidelines and prepare the new unit. If you’re storing the old battery, keep it in a cool, dry place away from heat sources and flammable materials. Always follow local regulations for battery disposal.
Tip: Never dispose of batteries with regular trash; use a recycling program or hazardous waste facility.
Got Questions?
Is it safe to remove the battery while the opener is plugged in?
No. Always unplug the opener or switch off the circuit before touching the battery to avoid unexpected door movement or shocks.
No. Make sure the power is cut at the wall or breaker before removing the battery to stay safe.
What types of batteries are used in garage door openers?
Most residential openers use a 12-volt sealed battery or a rechargeable pack. Check the model label for exact chemistry and capacity before removal.
Most openers use a 12-volt sealed or rechargeable battery; verify your model before handling.
How should I dispose of an old garage door opener battery?
Recycle whenever possible. Follow local regulations and use designated battery recycling programs or facilities. Do not throw in regular trash.
Recycle the old battery through a local program; do not trash it with household waste.
What if the battery won’t disconnect from the harness?
Gently wiggle the connector while pulling straight out. If corrosion blocks removal, stop and consult a technician to avoid damaging the opener.
If the connector sticks, don’t force it. Wiggle gently and pull straight, or seek professional help.
Do I need to reinstall the battery after maintenance?
Yes. After any service, reconnect the battery, test the unit with the wall switch, and verify the door responds smoothly before returning it to normal use.
Yes, reconnect and test to ensure everything works properly.
How can I tell if a battery needs replacement?
Look for reduced power, longer door travel times, or error lights on the opener. If in doubt, replace with the manufacturer’s recommended battery.
If the door acts weak or slowly, consider replacing the battery with the recommended model.
Watch Video
Quick Summary
- Power down before touching any components
- Identify battery location and type to avoid damage
- Disconnect connectors gently to prevent arcing
- Store or dispose of batteries safely per local rules
- Label and document the removal for future maintenance
- Avoid mixing old and new batteries in the same system
