Tension Spring Garage Door: Safe Diagnosis and Repair Guide
A comprehensive, step-by-step guide for diagnosing, repairing, and safely replacing tension springs on a garage door, with tips to avoid common hazards and improve door balance.
You're about to diagnose and safely service a tension spring garage door, identify signs of wear, and perform a controlled replacement with proper safety steps. This guide covers required tools, torque control, and re-balancing checks to prevent door lift issues. According to GarageDoorAdjust, spring work is hazardous—if you're unsure, hire a pro.
What is a tension spring garage door and how it works
A tension spring garage door uses extension springs that resist the door’s weight, often in pairs along the tracks. They store energy when stretched and release it to assist lifting. While your door might feel lighter than expected when the springs are in good condition, worn springs can snap or slip unexpectedly. The GarageDoorAdjust Team notes that improper tension can affect balance and safety. Always verify whether you have extension springs or a torsion spring system, as repair approaches differ significantly. In most modern garages, torsion springs on a torsion bar do most of the lifting, with extension springs used in older setups. Understanding the basic arrangement helps you decide if you can proceed safely or should call a pro.
Signs of wear and failure to watch for
Common indicators include visible gaps or gaps in the coils, chipped or rusted springs, door that sits unevenly, or a heavy manual lift. If the door suddenly becomes heavier to lift, the spring may be losing tension. Listen for loud popping or creaking sounds during operation; these noises can signal internal damage or misalignment. GarageDoorAdjust analysis shows that many DIY attempts fail due to underestimating spring wear or misreading torque requirements, underscoring the need for proper assessment before proceeding.
Safety first: hazards of DIY spring work
Springs under tension store enormous energy. A slip or misstep can cause severe injuries or property damage. Never work with a loose, unsupported door; always secure it and keep bystanders clear. Use proper winding bars or bars designed for torsion spring systems, and never substitute improvised tools. If you notice frayed cables, damaged drums, or misaligned tracks, pause and seek professional help—your safety comes first.
Tools and materials you’ll need (overview)
Before you begin, prepare a dedicated workspace with good lighting. You’ll need protective eyewear, gloves, locking pliers, winding bars (for torsion springs), a stable ladder, wrenches or sockets, replacement springs that match your system, and compatible brackets or drums. Keep a camera handy to document the setup for correct reassembly. The exact hardware depends on whether your system uses torsion or extension springs, so verify model-specific requirements.
The importance of correct spring type and rating
Using the wrong type or weight rating can lead to unsafe operation or door imbalance. Extension springs and torsion springs differ in installation, performance, and risk profiles. Always confirm the spring type, length, and coil diameter before purchasing replacements. For a balanced door, the spring tension must closely match the door’s weight; a mismatch often causes asymmetrical lift or binds in the tracks.
Re-balancing and alignment basics
After installing new springs, re-balancing is essential. The door should open smoothly with minimal effort and stay in a partially open position if released (at a safe height). Check that tracks are clean, lubricated, and free from obstructions. If the door drifts down or rises when supported at mid-height, re-torque and readjust the spring tension following the manufacturer’s guidelines.
Maintenance to extend the life of tension springs
Regular inspection every 6–12 months helps catch wear before failure. Lubricate moving parts lightly, check cable wear, and ensure brackets remain secured. Keep the tracks clean and aligned to minimize uneven load on the springs. Record dates of inspection so you don’t miss critical maintenance windows.
Authority sources and safety standards
For safety guidelines and best practices, consult reputable sources. You can review OSHA safety resources for garage-related hazards, energy conservation guidelines for door components, and ICC code references for installation standards. These sources help homeowners understand limits of DIY work and when to call a professional.
Tools & Materials
- Safety glasses (ANSI-rated)(Eye protection mandatory during spring work)
- Locking pliers or C-clamps(To secure door and prevent movement during work)
- Winding bars (for torsion springs)(Use only bars sized for your spring; do not improvise)
- Wrenches and sockets(Sizes vary by brackets and hardware; have a full set ready)
- Replacement tension springs (extension or torsion)(Match spring type, length, and weight rating to your door)
- Step ladder or stable platform(Stable surface; avoid standing on unstable objects)
- Replacement hardware (bolts, brackets, drums)(Ensure compatibility with your door model)
- Lubricant (light lithium grease)(Lubricate rollers, bearings, and tracks after adjustment)
- Rags or shop towels(Clean up oil or grease and wipe hands)

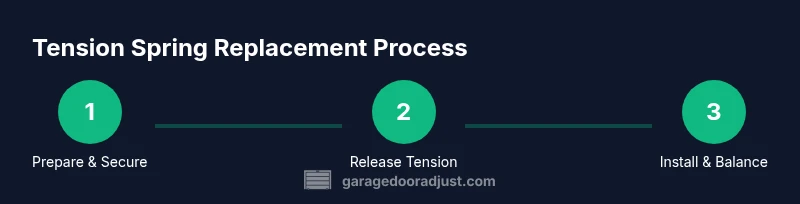

Steps
Estimated time: 2-4 hours
- 1
Secure the door and disconnect the opener
Fully close the door and unplug the automatic opener to prevent any unexpected movement. Place clamps or locking pliers on the track or door bottom to ensure it cannot rise. Confirm that the area beneath the door is clear and that a second person is ready to assist if needed.
Tip: Keep a clear exit path and communicate with your helper before initiating any action. - 2
Relieve spring tension safely
For torsion springs, insert winding bars into the winding cone and carefully unwind a few turns, keeping the bars vertical to avoid slips. For extension springs, detach cables from the bottom brackets while supporting the door weight. Never attempt to release tension with bare hands or makeshift tools.
Tip: Work slowly and continuously; never rush the unwinding process. - 3
Remove old springs and hardware
Document the current arrangement with photos, then remove springs, cables, brackets, and drums as needed. Inspect mounting points for wear and note any damaged components to replace during installation.
Tip: Label parts to prevent misassembly during reinstallation. - 4
Install new springs and hardware
Install the replacement spring(s) in the same orientation and position as the old ones. Attach cables, drums, brackets, and safety components, ensuring all fasteners are snug but not overtightened. Confirm the drum and bar alignment before proceeding.
Tip: Consult the door’s manual for torque or turn-count guidance specific to your model. - 5
Re-tension and balance the system
For torsion springs, carefully apply turns with winding bars to approximate the original tension, testing balance after each adjustment. For extension springs, reattach and calibrate so the door sits level when at rest. A properly balanced door should stay in place briefly when lifted to mid-height.
Tip: If the door pulls toward one side, recheck track alignment and spring tension distribution. - 6
Reconnect the opener and test operation
Reconnect the garage door opener or proceed with manual tests. Open and close the door several times to ensure smooth movement and consistent stopping points. Check limit switches and safety sensors after adjusting tension.
Tip: Test with the door at different heights to confirm consistent balance. - 7
Lubricate and perform final safety check
Lubricate rollers, hinges, and tracks with a light lubricant; wipe away excess. Inspect cables and ensure no frayed components. Verify that safe operation is achieved and that there are no unusual noises.
Tip: Lubrication reduces friction and extends parts life, but avoid over-lubricating near the springs. - 8
Document and clean up
Return tools to their storage, record the service details, and dispose of worn components properly. Leave the workspace clean to prevent slips or accidental reassembly by others.
Tip: Keep a simple service log for future reference.
Got Questions?
Are tension springs safe to replace myself?
Tension spring work is hazardous and requires specific tools and training. If you’re unsure, it’s best to hire a qualified technician. Always prioritize safety and review manufacturer guidelines.
Replacing tension springs is dangerous; it’s safer to hire a professional if you’re not trained.
What is the difference between torsion springs and tension springs?
Torsion springs use a bar with a winding mechanism, while extension (tension) springs run along the tracks and store energy differently. Each system has distinct installation steps and safety considerations.
Torsion and tension springs differ in design and how they store energy; they require different repair approaches.
How do I know if my door is balanced after replacement?
Open the door manually to mid-height; it should hold its position or slowly settle. If it drops quickly or rises, readjust the tension or inspect the tracks and hardware.
Balance test: hold the door at mid-height and observe its tendency to rise or fall.
Can I reuse old springs after a partial wear check?
Reusing worn springs is not recommended due to reduced performance and safety risk. Replace with new springs that match the original specifications.
It’s safer to replace springs rather than reuse worn ones.
Do I need to replace cables when replacing springs?
Inspect cables for wear and replace if there are frays or corrosion. Damaged cables can cause imbalance or failure.
Yes—check cables and drums for wear and replace as needed.
What safety gear should I wear?
Always wear eye protection and gloves. Use proper winding bars and keep others away from the work area.
Wear eye protection and gloves; stay clear of the springs while working.
How long does a typical tension spring replacement take?
Most installations take between 2 and 4 hours depending on system complexity and access.
Expect about 2 to 4 hours for a full replacement when done carefully.
Watch Video
Quick Summary
- Identify the spring type before starting.
- Secure the door and use proper winding bars for tensioning.
- Balance the door after installation to prevent strain.
- Test operation thoroughly and document the service.
- Call a professional if uncertainty remains.
