Torsion Spring Replacement on Garage Door: Step-by-Step
Learn how to safely perform a torsion spring replacement on a garage door with a homeowner-friendly, step-by-step approach. This guide covers tools, safety precautions, step-by-step actions, maintenance tips, and when to call a pro for high-tension springs.
Goal: safely replace a torsion spring on a garage door. This task requires proper tools, a clear plan, and strict safety precautions. You’ll identify the spring type, safely relieve tension, remove the old spring, install a new one, re-tension the system, and test balance. If you’re unsure, hire a pro.
Understanding torsion springs on a garage door
A typical garage door uses a torsion spring system to counterbalance the weight of the door. The spring stores rotational energy on a torsion bar, transferring force through cables and drums to raise and lower the door smoothly. When you hear creaks or notice an unbalanced ride, the torsion spring may be nearing the end of its life. The phrase torsion spring replacement on garage door becomes relevant in this context: replacing worn springs restores safe operation and prevents uneven door movement. Strong, properly installed springs reduce manual effort and protect other components from excessive strain. For homeowners, understanding how these springs work helps set expectations about what the replacement entails, including tensioning accuracy and safe handling practices.
Safety risks and why DIY can be dangerous
Torsion springs are under extreme tension. A slip during winding or unwinding can cause severe injuries or projectile fragments. This is not a routine home repair like lubricating hinges; it involves controlled energy release. Before attempting any work, you should assess your comfort with high-tension hardware, understand the door’s balance, and recognize when to stop and call a pro. Outdated or incompatible springs can fail unpredictably, risking damage to the door or surrounding property. This section highlights why following a methodical, safety-first approach matters, and it sets the stage for the step-by-step process that follows.
Workspace setup and safety gear you’ll need
Set up a clean, well-lit workspace with a clear area around the door. Clear the floor of tools and debris, and ensure pets or children are away from the work zone. Put on ANSI-rated safety glasses and sturdy gloves; wear a long-sleeve shirt to protect your arms. Secure the door in the open position if possible, or prop it with clamps rated for garage-door use. A solid ladder or mounting platform may be required if the door height is high. Working with spring hardware demands precise control and patience, so take breaks as needed and never rush the winding or unwinding process.
Tools and materials you’ll need (overview)
This overview lists essential items before you start. A full tools-and-materials list is provided in the dedicated section below, but knowing what’s required helps you plan. You’ll typically need winding bars, a torque wrench or socket set, locking pliers, a rigid crowbar or pry bar, a sturdy ladder, safety glasses, gloves, a spring replacement kit, cable drums, and lubricants for hardware. Having the right gear reduces the risk of missteps and helps you perform the replacement with greater accuracy.
Step-by-step overview: plan, prep, and perform

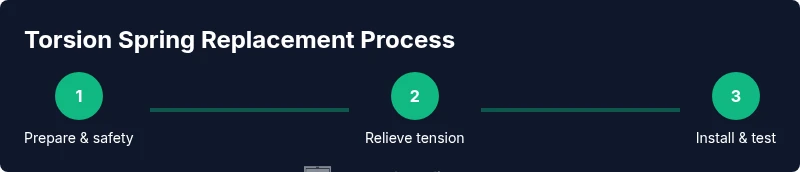

The torsion spring replacement on garage door is a multi-stage process: plan the replacement, safely relieve tension, remove the old spring, install the new spring, re-tension and align the system, and finally test the door’s balance. Each stage is critical for safety and for ensuring the door remains properly balanced after the repair. This overview prepares you for the detailed steps that follow in the formal STEP-BY-STEP section, and it emphasizes why careful inspection of each component matters—worn drums, cables, and cones can compromise the new spring’s performance.
Maintenance tips to extend spring life
After replacing the torsion spring, implement a routine that reduces wear and helps you catch issues early. Lubricate moving parts as recommended by the manufacturer, check for door misalignment, test balance monthly, and inspect cables and drums for wear. Keeping a simple maintenance schedule can extend the life of the entire system and save you from unexpected failures. A well-lubricated, balanced door requires less effort to operate and reduces noise.
Authority sources and safety reminders
For safety and best practices, consult reliable sources before and after performing a torsion spring replacement. The information here is intended to support homeowners in making informed decisions and to help you recognize when professional service is necessary. Public safety guidelines emphasize not attempting repairs when you’re unsure, and to involve a licensed technician for high-tension repairs. International and national safety standards provide general guidance on working with high-tension hardware and on the proper use of tools.
Tools & Materials
- Safety glasses (ANSI Z87.1 rated)(Protect eyes from snapping parts and metal shards)
- Heavy work gloves(Prevent cuts and improve grip)
- Locking pliers or C-clamps(Hold components securely during work)
- Winding bars (winding bars are essential)(Only use the bars designed for tensioning springs)
- Torque wrench or socket set(Apply precise torque to fasteners)
- Torque-rated spring kit (new torsion springs, drums, cones, set screws)(Match the door weight and drum type)
- Rigid ladder or stable platform(Access higher components safely)
- Lubricant (silicone-based or manufacturer-approved)(Lubricate bearings and moving parts after replacement)
- Measuring tape(Verify hardware dimensions and drum spacing)
- Pen and masking tape(Label components and record torsion direction)
Steps
Estimated time: 60-120 minutes
- 1
Secure the door and prepare workspace
Begin by unplugging the door opener and locking it out if possible. Position clamps to hold the door securely in the open position, and set up your ladder for safe access. This initial preparation prevents accidental movement during tension release and spring removal.
Tip: Double-check the door is fully supported and that there are no bystanders nearby before you touch the spring. - 2
Relieve spring tension safely
Insert winding bars into the winding cone and slowly unwind the spring in small increments. Do not use power tools on the spring; all tension should be released by hand with the proper bars. If you encounter resistance beyond control, stop and reassess.
Tip: Only rotate bars in the direction specified by the spring’s orientation and count turns to avoid over-relaxation. - 3
Remove the damaged spring
With tension fully relieved, detach any securing screws or set screws and slide the spring off the torsion shaft. Inspect the end bearings and drums for wear. Remove the old spring and set aside in a safe location.
Tip: Place a protective cloth over the drum to prevent metal shards from scattering. - 4
Inspect and replace worn components
Check drums, cables, cones, and bearings for wear. If any component shows signs of cracks or fatigue, replace it along with the spring. A worn component can cause imbalance and premature failure of the new spring.
Tip: If you’re unsure about component condition, replace questionable parts rather than risking safety. - 5

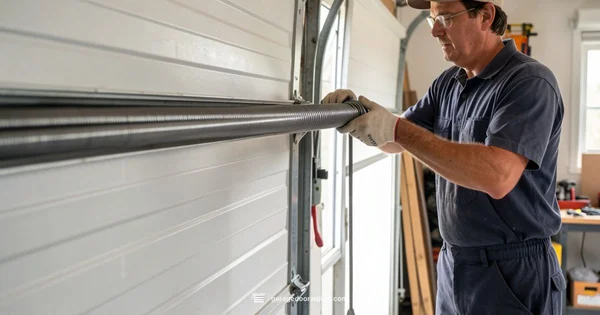

Install the new spring and secure hardware
Slide the new spring onto the shaft with the correct orientation. Reconnect the winding cone and tighten any set screws to manufacturer specifications. Ensure the spring sits correctly in the center and alignment is maintained.
Tip: Follow the exact orientation and alignment marks—incorrect installation leads to improper balance. - 6
Re-tension and level the system
Re-tension the spring using the winding bars while watching the door balance. The door should stay at the chosen height without becoming nonfunctional or overly heavy. Adjust the drums so the door is level.
Tip: Make small successive adjustments and test balance intermittently rather than forcing a large turn count at once. - 7
Reconnect safety features and test
Reattach cables, test therope or cable connections, and verify that the safety stops and the photo-eye sensors function. Remove clamps slowly and confirm the door moves smoothly in both directions.
Tip: Test several cycles with power-off opener to confirm manual operation before reactivating the opener. - 8
Final inspection and routine maintenance
Check for any unusual noises, inspect for wear, and apply lubricant to moving metal parts as recommended by the manufacturer. Keep a maintenance schedule to monitor spring wear and door balance over time.
Tip: Document the replacement date and spring weight to guide future service decisions.
Got Questions?
Is torsion spring replacement dangerous for a homeowner?
Yes. Torsion springs are under high tension and can injure you if released improperly. It is crucial to use proper tools and follow a safe procedure, or hire a professional for high-tension work.
Yes, it’s dangerous if you don’t follow safety steps. Use the right tools and consider a pro for high-tension work.
Can I replace only one spring, or should I replace both springs at once?
If your system has two springs, replacing only one can cause uneven tension and premature failure of the other. It’s generally recommended to replace springs in matched pairs.
If you have two springs, replace them in matched pairs to keep balance and safety.
How do I know if the spring is worn out or broken?
Signs include visible gaps, excessive gaps in winding, uneven door movement, or noisy operation. Do not attempt to diagnose by prying or twisting when the door is unstable.
Look for gaps, loud noises, and uneven movement; don’t force or test with the door open if it seems off.
What maintenance can extend the life of torsion springs?
Regular lubrication of bearings and tracks, periodic balance checks, and timely replacement of worn drums or cables can extend spring life. Keep the system clean and monitor for signs of wear.
Lubricate moving parts, check balance, and replace worn components early to extend spring life.
When should I call a professional for torsion spring work?
If you are uncertain about tensioning or if the door is heavy to lift manually after removing the spring, contact a licensed garage door technician. High-tension repairs are best left to pros.
Call a professional if tensioning isn’t clear or the door remains heavy after removing the spring.
Are there safety considerations for electric openers during spring replacement?
Disconnect the opener to prevent accidental movements. Keep hands away from moving parts, and verify the opener’s sensors are functioning after reassembly.
Unplug the opener during work, and check sensors after finishing.
Watch Video
Quick Summary
- Understand the torsion spring system and its role in door balance
- Follow strict safety steps to relieve tension before replacement
- Replace worn parts and re-tension with precision to ensure balanced operation
- Test door function carefully and establish a routine maintenance schedule
