Garage Door Spring Set Up: A Homeowner’s Step-by-Step Guide
Learn a safe, thorough garage door spring set up with our step-by-step guide for homeowners. Tools, safety, balancing checks, and when to call a pro—all in one practical how-to.
This guide provides a practical, safe approach to a garage door spring set up for homeowners. It covers how to identify spring type, gather the correct tools, secure the door, relieve and re-tension springs, verify balance, and perform final safety checks. Use this plan to restore proper door operation while minimizing risk to you and your family.
Understanding Garage Door Springs and Why Proper Set Up Matters
A garage door spring set up is the heart of how your door lifts and stays balanced. Most homes use either torsion springs above the door or extension springs along the sides. The right tension ensures smooth lifting, keeps the door from dropping, and reduces wear on cables and tracks. A correct setup also minimizes the risk of spring failure, which can cause sudden, dangerous releases of stored energy. When homeowners learn the basics of the spring system and follow a careful step-by-step process, they improve safety and extend the life of their garage door. This guide emphasizes the practical, repeatable steps for a reliable garage door spring set up, with a focus on safety, correct tools, and deliberate testing. GarageDoorAdjust’s guidance helps homeowners approach this task with confidence and clarity.
Safety First: Personal Protective Equipment and Precautions
Working with garage door springs involves stored energy that can strike with surprising force. Always wear safety glasses and heavy gloves, and keep bystanders away during setup. Disconnect the garage door opener and lock it out so it cannot operate while you work. Never place your body under a spring-loaded assembly or rely on improvisation to hold tension. If anything feels uncertain or if you notice damage to tracks, cables, or brackets, pause and reassess before proceeding. By prioritizing safety, you reduce risk and create a solid foundation for a successful garage door spring set up.
Tools and Materials Needed for Garage Door Spring Set Up
Before you begin, assemble a clear toolkit: a sturdy ladder, two winding bars sized for your spring type, locking pliers or C-clamps, an adjustable wrench or socket set, a tape measure, a marker, safety glasses, and work gloves. You’ll also need replacement springs if you’re performing a replacement, plus lubricant for moving parts and a torque wrench if required by your system. Double-check that you have the correct springs for your door weight and type. Proper preparation reduces delays and lowers the chance of a misstep during the crucial tensioning phase. This is the moment where garage door spring set up decisions truly matter for longevity and safety.
Preparing Your Door: Locking, Measuring, and Supporting the Door
Position the door closed and secure the track with clamps or locking pliers to prevent movement. Measure the door height, inspect the tracks for bends, and verify that all fasteners are intact. If you’re replacing springs, take photos or notes of the existing installation to guide reassembly. Ensure the door is evenly balanced by manually testing its weight with the opener disconnected. A well-prepped setup reduces surprises during tensioning and helps ensure the door will stay level when operated manually or by the opener.
Step 1: Relieving Tension Safely (for torsion springs)
If you’re dealing with torsion springs, begin by securing the door and applying the manufacturer’s recommended procedure to relieve tension. Use winding bars to carefully back off tension, keeping your hands clear of the winding cone and bars at all times. Do not attempt this step with improvised tools or without proper safety equipment. This stage is critical; a misstep can release energy unexpectedly. Take it slow, verify that tension is fully relieved, and proceed only when you are certain the spring is no longer under load.
Step 2: Detaching the Old Springs (if replacing)
With tension released, detach the old springs from their anchors and track brackets according to the door type. For torsion springs, remove mounting brackets and unwind any springs from the torsion shaft, labeling parts as you go. For extension springs, unhook the springs from the track pulleys and safety cables. Always keep a clear workspace and avoid twisting or bending components beyond their intended geometry. If the springs show cracks, breaks, or significant wear, plan for replacement rather than repair.
Step 3: Installing New Springs and Balancing the Door
Install the new springs in their correct positions, following the door’s weight rating and the spring manufacturer’s instructions. Reattach to the torsion shaft or track as required, ensuring the wind direction matches the original setup. Apply lubricant to pivots and bearings as you go, but avoid getting lubricant on the winding cones. With the springs in place, carefully align the door and brace essential components so the door sits level. A properly installed spring set up will help the door balance with minimal effort.
Step 4: Re-tensioning and Safety Checks
Re-tension the springs to the manufacturer’s specification and verify the tension by manually lifting the door. Check for a smooth, vibration-free operation and listen for any rubbing or binding in tracks. Reconnect the opener and test for consistent movement through its full travel range. If the door feels heavy or unbalanced, stop and re-check alignment and fasteners. This final tuning ensures reliable performance and reduces future maintenance needs.
Common Mistakes to Avoid During Garage Door Spring Set Up
Avoid common errors such as over-tightening springs, using mismatched components, or skipping safety checks. Do not attempt to measure tension with makeshift tools or improvise parts. Working without proper winding bars or without securing the door can lead to severe injuries. Always follow the spring manufacturer’s guidelines and consult a professional if any aspect feels beyond your experience level. Thorough preparation and careful steps are your best defense against mistakes that could compromise safety and door operation.
When to Call a Pro
If you notice persistent misbalance, unusual noises, or difficulty in controlling the door, stop and call a qualified technician. A professional brings specialized tools, accurate tension measurements, and the right safety practices to ensure a safe, durable garage door spring set up. Homeowners should seek help for single-spring replacements, high-tension torsion systems, or doors heavier than typical residential loads. Investing in professional support can prevent injury and protect your door’s longevity.
Maintenance and Regular Checks
After completing a garage door spring set up, establish a maintenance routine that includes periodic inspections of springs, cables, and tracks. Lubricate moving parts as recommended by the manufacturer, monitor for changes in door balance, and tighten loose hardware. Regular checks can extend spring life, reduce unexpected failures, and keep your door operating smoothly. Record dates of service and any parts replaced so you can track wear patterns over time.
Final Verification: How to Test the Door Balance
Perform a final balance test by manually lifting the door halfway and letting go. If the door stays put, balance is good; if it rises or falls, readjust tension and alignment. Repeat with the door fully closed and fully open to confirm consistent operation. If you observe binding, uneven travel, or the door drifting, revisit the steps and fix issues before re-connecting the opener. A well-balanced door will feel easy to move by hand and will stay in place at any position.
Tools & Materials
- Ladder(Stable, tall enough to reach spring area without overreaching)
- Safety glasses(Impact-resistant safety goggles)
- Work gloves(Grip and hand protection)
- Winding bars (2)(For torsion springs; use correct size)
- Adjustable wrench or socket set(Loosen bolts and brackets)
- Locking pliers / C-clamps(Secure components during work)
- Tape measure(For length and alignment checks)
- Marker or chalk(Label alignment points)
- New springs (matching door weight)(Ensure correct spring type and rating)
- Garage door lubricant (silicone or white lithium)(Lubricate moving parts)
- Torque wrench (optional)(If required by springs)

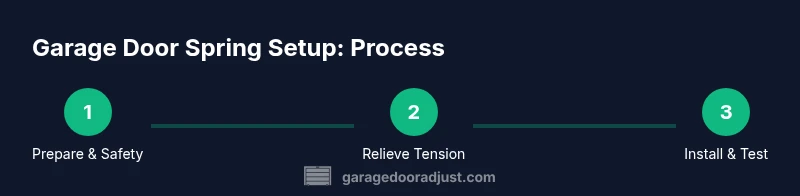

Steps
Estimated time: 2-6 hours
- 1
Prepare workspace and power down
Clear area, verify door locked, and disconnect the opener. Confirm all bystanders are clear and ready. This ensures a safe baseline before touching any springs.
Tip: Mark your intended work zone and keep tools within arm’s reach. - 2
Secure the door and inspect components
Clamp tracks or use locking pliers to hold the door in place. Inspect tracks, bracing, and cables for wear before starting the spring work.
Tip: A stable door prevents dangerous movement during tensioning. - 3
Relieve spring tension with winding bars
Using the winding bars, carefully back off tension from torsion springs per manufacturer guidance. Maintain control and keep bars perpendicular to the spring axis.
Tip: Never use improvised tools; improper bars can slip and cause injury. - 4
Detach old springs if replacing
With tension relieved, unbolt or unwind springs from anchors and shaft. Label components to assist reassembly.
Tip: Keep tracks and anchors aligned; misalignment causes binding later. - 5
Install new springs and align
Position new springs on anchors and shaft, matching the original wind direction. Verify bearings and brackets are clean and properly seated.
Tip: Double-check alignment before final tightening. - 6
Re-tension springs to spec
Reapply tension according to spring rating and door weight. Use winding bars while keeping your body out of the line of fire.
Tip: Refer to manufacturer figures for exact turns if provided. - 7
Lubricate and reassemble components
Lubricate pivots, bearings, and moving parts, avoiding the winding cones. Reassemble brackets and ensure all fasteners are snug.
Tip: Lubrication reduces wear and extends spring life. - 8
Test and verify balance
Manually lift the door to halfway, ensure it stays in place, then test with opener. Confirm smooth travel and balanced load.
Tip: If door drifts, recheck tension and track alignment.
Got Questions?
Is it safe to set up garage door springs yourself?
DIY spring setup can be dangerous due to high stored energy. If you’re not experienced, consider consulting a professional. Always prioritize safety gear and proper tools when attempting any spring work.
DIY spring setup can be dangerous due to high energy. If unsure, consult a professional. Always wear safety gear and use the correct tools.
What tools are essential for garage door spring set up?
Key tools include two winding bars, locking pliers, adjustable wrench or socket set, tape measure, marker, safety glasses, and gloves. For torsion springs, winding bars are especially critical.
Two winding bars, locking pliers, adjustable wrench, tape measure, marker, safety glasses, gloves are essential. Winding bars are critical for torsion springs.
How can I tell if my door is properly balanced?
A properly balanced door stays in place when raised halfway and moved through its travel with smooth operation. If it drifts or feels heavy, recheck tension and alignment before using the opener.
If the door holds halfway, it’s balanced. If it drifts or is heavy, recheck tension and alignment.
Can I reuse old springs or should I replace them?
In most cases, old springs should be replaced if they show wear, fatigue, or damage. Reusing springs can lead to unexpected failure and safety risks. Always follow manufacturer guidance.
If springs show wear or damage, replace them. Reusing worn springs is risky and can fail suddenly.
What are signs of a failing torsion spring?
Signs include difficulty lifting the door, unusual noises, gaps in the spring housing, or visible wear. If any sign appears, stop and have the system evaluated by a pro.
Difficulty lifting, strange noises, or visible wear are signs of a failing torsion spring. Stop and get a professional evaluation.
Watch Video
Quick Summary
- Identify spring type before starting garage door spring set up
- Use proper winding bars and safety clamps throughout
- Aim for a balanced door with smooth travel in test runs
- Know when to call a pro and avoid dangerous improvisations
