Garage Door Bottom Seal Retainer Replacement Guide
Learn to diagnose, select, and safely replace a garage door bottom seal retainer to stop drafts and moisture intrusion. This step-by-step guide covers tools, measurements, installation, and maintenance for long-lasting weather resistance.
In this guide you will learn how to diagnose wear on your garage door bottom seal retainer, choose a compatible profile, and safely replace the retainer to restore a tight weather seal. You’ll gather the right tools, measure precisely, and follow a safe, step-by-step process to reduce drafts, prevent moisture intrusion, and improve door performance. This plan emphasizes correct fit, careful installation, and testing to ensure a lasting seal.
Why the garage door bottom seal retainer matters
The bottom seal retainer is more than a cosmetic piece; it shapes how well your garage keeps out drafts, moisture, and pests. For homes in climates with freezing winters or hot summers, a worn or misaligned retainer can create continuous air leaks, leading to higher energy bills and more frequent doorwear. A tight fit around the bottom edge also reduces wind uplift and helps the door close with a solid seal. In this guide we focus on the garage door bottom seal retainer—the metal or plastic bar that holds the weather seal in place and gives the door edge something to seal against. When the retainer is damaged, you may notice water pooling on the floor, dirt or leaves tracked into the garage, or an ill-fitting seal that drags on the floor. According to GarageDoorAdjust, maintaining the bottom retainer is a simple, affordable maintenance task that homeowners can tackle safely with the right steps.
Different retainer profiles and compatibility considerations
There isn’t a single retainer style that fits every door. Retainers come in several profiles—U-channel, V-channel, T-slot, and clip-on varieties—each designed to hold a specific weather seal and to fit a particular door edge thickness. Before buying, measure both the door width and the edge thickness where the seal sits. Look for compatibility notes from the manufacturer and compare them to your door model. If you’re unsure, bring a photo of the bottom edge and the current retainer to a hardware retailer or consult the door manufacturer for recommended profiles. The wrong retainer can cause gaps, binding, or premature wear, so taking precise measurements is essential.
Step-by-step diagnostic: is your retainer worn or damaged?
Begin by inspecting the entire bottom edge for visible cracks, bending, rust, or missing screws. If the retainer stud or clip is loose, damaged, or the screws won’t seat, it’s a sign the whole retainer may need replacement. Check the seal itself; a compressed, cracking, or torn seal indicates the pair (retainer + seal) needs attention. Also run a hand along the edge to feel for gaps when the door is fully closed. If drafts or moisture are noticeable near the floor, the retainer may not be seating correctly. Document any damage before removing parts so you can match replacements precisely.
Removing the old retainer safely
Safety first: unplug the garage door opener or disable the door’s operator to avoid accidental movement. Secure the door in the closed position with clamps to prevent it from dropping. Remove screws or clips holding the retainer in place, keeping fasteners organized. If the retainer is a channel that slides along the edge, gently lift it free while supporting the door edge. Do not force pieces loose; inspect for corrosion or warped mounting holes that may require patching or a new mounting strip.
Preparing the groove and measuring your replacement
With the old retainer removed, clean the groove thoroughly to remove dirt, old seal residue, and corrosion. Use a mild detergent and a cloth; let it dry completely. Measure the door edge width at multiple points to account for any irregularities, then select a replacement retainer profile that matches both the edge height and length. When cutting a seal, be conservative: cut slightly longer and trim to fit after installation. Keep spare screws or clips in case the originals strip during removal.
Installing the new bottom seal retainer
Position the new retainer along the door edge, aligning screw holes with existing mounting points. Start a couple of screws by hand to lock the piece in place, then tighten in a crisscross pattern to keep the retainer flat and evenly seated. Avoid overtightening, which can strip holes or bend the edge. If your retainer uses clips, snap each clip into place before securing final screws. Double-check that the retainer sits flush and the bottom seal will sit evenly inside the groove.
Fitting the weather seal and ensuring proper seating
Insert the weather seal into the new retainer, working from one end to the other. Trim the seal ends flush with the door edge to prevent interference with track or hardware. Press the seal into the retainer so it sits evenly against the floor when the door is closed, creating a continuous barrier against drafts and moisture. If the seal feels stiff, allow it to acclimate to room temperature for a few minutes before final seating. Re-check alignment after the door completes its first few cycles.
Testing, adjustments, and what to do if problems arise
Reconnect power to the opener and run the door through a full cycle several times. Observe how the bottom seal engages the floor and whether there is any light leakage at the bottom gap. If gaps persist, re-check the retainer alignment, seal seating, and screw tightness. Small adjustments—like nudging the retainer slightly or trimming the seal a bit more—can make a big difference. If you notice binding or excessive resistance, stop and reassess mounting holes or track alignment.
Maintenance and long-term care
Periodically inspect the retainer and seal as part of seasonal maintenance. Clean the groove to remove debris, lubricate any moving parts per manufacturer guidelines (avoid oil on rubber seals), and replace worn components before they fail completely. Keep an eye on screws for loosening and address rust early with appropriate treatment. Regular maintenance reduces drafts, extends door life, and keeps your garage comfortable year-round.
Authority references and further reading
- U.S. Department of Labor OSHA safety guidelines for door operation and handling: https://www.osha.gov
- U.S. Department of Energy tips on weather-stripping and energy efficiency: https://www.energy.gov
- University extension resources on weatherproofing and door seals: https://extension.illinois.edu
These sources provide safety and best-practice context that complements the hands-on steps in this guide. GarageDoorAdjust recommends reviewing these references when performing home repairs and maintenance.
Tools & Materials
- Bottom seal retainer (correct profile)(Choose the profile that matches your door edge and seal type (U-channel, clip-on, etc.). Match length to door width.)
- Replacement weather seal (bottom seal)(Select a seal compatible with your retainer profile and climate needs.)
- Measuring tape(Measure width at several points along the edge.)
- Pliers(For removing clips or stubborn fasteners.)
- Screwdriver set (Phillips and flathead)(Needed to remove and install retainer screws.)
- Utility knife or scissors(Trim seal ends precisely to fit without protrusion.)
- Putty knife or plastic scraper(Clean out debris from the groove.)
- Gloves(Protect hands from sharp edges and metal parts.)
- Clamps or locking pliers(Secure the door in the closed position during work.)
- Cleaning supplies (soap, cloth)(Clean groove and edge before installation.)
- Silicone sealant (optional)(Use if you detect minor gaps around the seal.)
Steps
Estimated time: 40-75 minutes

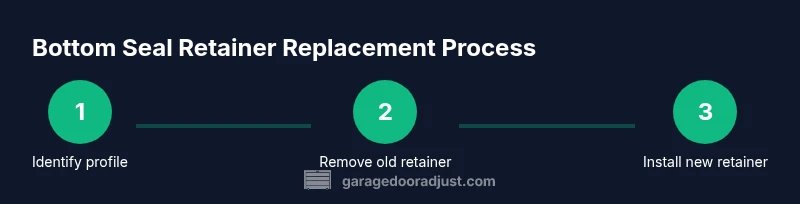

- 1
Identify door and seal type
Carefully inspect the bottom edge to determine whether you have a U-channel, clip-on, or other retainer profile. Verifying the correct profile now prevents wasted trips to the store and incorrect replacements later.
Tip: Take a photo of the current setup to reference the profile when shopping. - 2
Disconnect power and secure the door
Unplug the automatic opener or disconnect the power to prevent unintentional movement. Prop the door in the closed position with clamps or locking pliers to keep it stable while you work.
Tip: Always double-check that the door is fully supported before removing components. - 3
Remove the old retainer
Loosen screws or unclip fasteners holding the retainer. If it slides out of a channel, gently lift it away while supporting the edge of the door.
Tip: Keep all fasteners in a labeled container to avoid misplacing small parts. - 4
Inspect bottom edge for damage
Look for bent metal, rust, deep scratches, or warped mounting holes. If the edge is damaged beyond repair, you may need to replace the entire bottom panel or the mounting strip.
Tip: If you see severe damage, consult a pro before proceeding. - 5
Measure and cut the new seal
Measure the door edge width at multiple points. Cut the new seal slightly longer than needed, then trim for a precise fit after seating.
Tip: Use a sharp blade to ensure a clean cut and prevent fraying. - 6
Install the retainer and secure
Place the new retainer along the door edge, align holes, and start screws by hand. Tighten in a crisscross pattern to seat evenly without cracking the edge.
Tip: Avoid overtightening; it can strip holes or warp the edge. - 7
Insert the weather seal and trim ends
Work the seal into the retainer from one end to the other. Trim ends flush with the door edge to prevent interference with tracks or hardware.
Tip: If the seal resists bending, let it acclimate at room temperature for a few minutes. - 8
Test and adjust
Reconnect power and run the door through several cycles. Check for gaps at the bottom and adjust retainer or seal as needed.
Tip: Make small iterations rather than forcing the seal into a misaligned retainer.
Got Questions?
What is the function of a garage door bottom seal retainer?
The bottom seal retainer holds the weather seal at the bottom edge of the door, forming a seal against drafts, moisture, and pests. It also provides a stable mounting point for the seal so the door closes evenly.
The bottom seal retainer holds the weather seal at the door’s bottom edge and helps create a tight seal against drafts and moisture.
Can I replace the retainer without removing the door from the track?
In many cases you can replace the retainer while the door is mounted, but you should not perform this if the door is unbalanced or the springs or cables show signs of damage. Proceed with caution and support the door securely.
Yes, you can often replace the retainer without removing the door from the track, but only if the system is balanced and safe to work on.
How do I know which retainer profile I need?
Compare the edge thickness and width to the available profiles (U-channel, clip-on, etc.). Use the manufacturer’s guidance or bring a photo of the current setup to an accessory retailer for matching.
Match the profile to your door by taking measurements and referencing the manufacturer’s guidance.
Are there safety concerns when replacing the bottom seal retainer?
Yes. Work only with the door fully closed and the opener disconnected. Do not attempt repairs if you feel unsafe or if springs look damaged.
There are safety concerns; always disconnect power and ensure the door is secured before starting.
How long does a replacement typically last?
Lifespan varies with climate and usage. Regular inspection and timely replacement of worn parts can extend the door’s weather resistance considerably.
It depends on use and climate, but regular checks help ensure it lasts as long as possible.
Should I hire a professional for this task?
If you are uncomfortable with tools, wiring, or heavy door parts, hiring a pro is wise. A technician can also verify overall door balance and safety.
If you’re unsure about safety or door balance, consider getting a professional.
Watch Video
Quick Summary
- Identify the correct retainer profile before buying.
- Accurate measurement prevents gaps and leaks.
- Install with even tightening to avoid edge damage.
- Test the door after installation for proper sealing.
- Maintain seals seasonally to extend life.
