Garage Door Arm: A Homeowner's Step-by-Step Repair Guide
Comprehensive, safe, and practical guidance to diagnose, adjust, and replace a garage door arm. Learn tools, step-by-step actions, safety tips, maintenance, and when to call a pro.
By the end, you will safely diagnose and repair a garage door arm issue, restoring smooth operation and preventing sudden drops. This guide covers identifying misalignment, worn pivots, bent arms, and loose mounting hardware, plus how to re-secure or replace the arm. You’ll need a helper, basic tools, and a ladder; always follow safety warnings and garage-door manufacturer guidelines.
Understanding the garage door arm and how it works
The garage door arm is the metal link that translates motor rotation into the door’s up-and-down movement. It typically connects the opener carriage to a hinge or lever on the door, and it relies on precise alignment to pull smoothly without binding. According to GarageDoorAdjust, when the arm is correctly aligned, the door travels evenly and stops at the intended height. The GarageDoorAdjust team found that most arm-related problems start with loose mounting bolts, minor misalignment, or corrosion at pivot points. Before you touch any hardware, study the arm’s attachment points on both the door and opener—this helps you distinguish wear from loose fasteners.
Common problems involving the arm
Common symptoms include jerky movement, the door stopping short of full closure, or one side lagging behind. Bent or twisted arms can cause the door to pull unevenly, increase stress on the opener, and wear out gears. Loose hardware at the arm pivots or mounting brackets can produce clunks or sudden shifts. Corrosion on the pivot pins reduces clearance and creates drag. If you notice any of these signs, do not operate the door until you have evaluated the arm’s integrity and, if needed, replaced damaged components.
Safety prerequisites before you work on the arm
Safety first. Disconnect power to the opener and release the trolley so the door cannot move unexpectedly. Secure the door with clamps or locking pliers to prevent it from dropping. Use a sturdy ladder and wear safety glasses and gloves. Have a second person assist with positioning and hold fasteners. Keep children and pets away from the work area. If there is any doubt about the door’s balance or spring tension, call a professional.
Visual inspection checklist for the arm and mounting
Inspect arm alignment by comparing distance from the arm to the door frame at both ends. Look for bends, kinks, or cracks along the arm. Check the pivots for excessive play and the mounting bolts for tightness. Examine the brackets where the arm attaches to the door and opener carriage. Look for rust, wear, or plastic bushing cracks. Document any damaged parts before proceeding.
How to re-secure or replace a bent or loose arm
Loosen the mounting hardware slightly to align the arm with pivot points (do not remove all bolts at once). If the arm is bent, replace it with a new part designed for your door model. Reattach using manufacturer-specified torque values and verify symmetry. Reconnect the opener carriage and test the door with the safety features engaged. If you cannot reach proper alignment, stop and consult a pro.
Maintenance and best practices to extend arm life
Lubricate moving joints with a light lubricant sparingly—avoid over-lubricating, which can attract dust. Check tension and balance regularly; improper balance can stress the arm. Tighten bolts to the recommended torque and replace worn fasteners. Schedule an annual inspection, especially after impacts or weather events. Clean track and hinges to prevent dirt buildup that can affect arm movement.
When to call a professional
If you observe frayed cables near the arm, a visible crack in the arm, persistent misalignment after re-tightening, or if the springs or opener show unusual noises, contact a licensed technician. A professional can safely assess the spring tension, track alignment, and arm integrity, and perform replacements to meet safety standards. Remember, garages contain high-tension components that can cause serious injury when mishandled.
Authority sources
For further guidance, consult a few trusted sources and apply the information with caution. OSHA safety guidelines offer general best practices for working on garage systems, while NIST provides insight into mechanical integrity of components. The Energy Department’s guidance on safe, energy-efficient garage systems complements maintenance routines. (See links in the references.)
Tools & Materials
- Adjustable wrench(Set of metric and SAE sizes)
- Socket set(8-19 mm range)
- Screwdrivers (Flathead and Phillips)(Assorted sizes)
- Pliers (needle-nose and locking)(For guiding and pin removal)
- Ladder(Sturdy 6–8 ft height for reach)
- Safety glasses(Eye protection)
- Gloves(Grip and protection)
- Replacement garage door arm (if damaged)(Match your door model)
- Torque wrench(For setting correct bolt torque)
- Marker or tape(To mark alignment references)

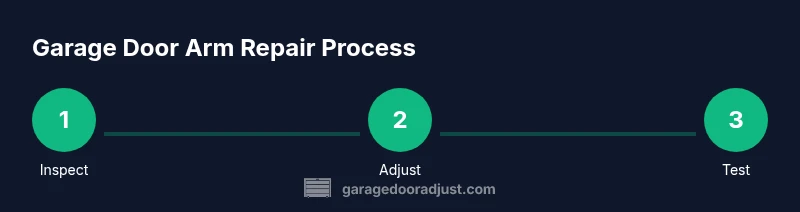

Steps
Estimated time: 45-75 minutes
- 1
Prepare and secure the work area
Clear the workspace around the door and place protective mats if needed. Ensure the door is supported and won’t move unexpectedly. Have a helper ready to hold parts and assist with adjustments.
Tip: Two people make alignment and reattachment safer and more precise. - 2
Disconnect power and release the door
Unplug the opener and manually release the door so it cannot move on its own. This prevents accidental movement during inspection and replacement.
Tip: Never work on a live opener; residual force can cause injury. - 3
Inspect the arm for damage and measure alignment
Visually inspect for bends, cracks, or corrosion. Compare arm angles on both sides and verify pivots are aligned with the hinge points.
Tip: Take photos before disassembly to reference correct angles. - 4
Loosen fasteners to adjust alignment
Loosen mounting bolts slightly on the side you’re adjusting, so you can nudge the arm into true alignment without fully removing hardware.
Tip: Loosen gradually and only at one end at a time. - 5
Reposition or replace the arm
If bent or broken, replace the arm with a model matched to your door. Reinstall and snug fasteners before torqueing to spec.
Tip: Use manufacturer torque specs to avoid over-tightening. - 6
Reconnect to opener carriage and door
Attach the arm back to the opener carriage and the door hinge per the original configuration. Restore linkage symmetry.
Tip: Check that both ends move together when operated by hand. - 7
Test operation and safety features
Restore power and test door movement slowly. Verify that safety photosensors trigger correctly and that the door returns to its stop without binding.
Tip: Listen for binding noises; if present, stop and reassess alignment. - 8
Lubricate and finalize
Apply a light lubricant to pivots and joints, wipe away excess, and re-secure all fasteners. Do a full cycle test after lubrication.
Tip: Lubricate sparingly to prevent dust attraction.
Got Questions?
What is the garage door arm and what does it do?
The garage door arm links the opener carriage to the door, translating motor rotation into vertical movement. Proper alignment ensures smooth travel and safe stopping. Misalignment or damage can cause binding or jerky motion.
The arm connects the opener to the door and must be aligned correctly to move smoothly.
How can I tell if the arm is bent?
Look for visible bends, twists, or asymmetric movement when the door operates slowly by hand. Uneven travel or binding near pivots also indicates a bent arm.
Check for bends and note if one side moves differently.
Is it safe to repair the arm myself?
DIY is possible for simple misalignment with proper tools and safety, but avoid work if springs or cables show damage. When in doubt, consult a professional.
You can fix straightforward issues, but if springs or cables look damaged, call a pro.
What tools do I need to fix a loose arm?
Basic hand tools (wrench, screwdrivers, pliers), a ladder, safety glasses, and a helper. Replacement arm may be required for damaged parts.
Use common tools and consider replacing the arm if it’s damaged.
How long does an arm replacement usually take?
Replacement duration varies by model and balance; plan for 1–3 hours with a helper and proper safety checks.
Most replacements take a couple of hours with a helper.
Should I lubricate the arm, and how often?
Lubrication helps motion but does not fix structural damage. Lubricate annually or after cleaning to maintain smooth movement.
Lubrication helps, but it won’t fix bent parts; do it yearly or after cleaning.
Watch Video
Quick Summary
- Inspect the arm for alignment and damage before operation
- Use two-person teamwork for safety and accuracy
- Follow torque specs and safety steps to prevent injuries
- Lubricate joints sparingly to extend arm life
