LiftMaster Garage Door Opener Installation Guide
Learn how to install a LiftMaster garage door opener with a step-by-step approach, safety checks, wiring, programming, and testing tips from GarageDoorAdjust.
This guide walks you through safely installing a LiftMaster garage door opener—from mounting the rail and trolley to wiring safety sensors and programming remotes. You’ll learn how to align the track, connect the opener to power, configure the wall control, and test safety features. Basic electrical skills and a helper are recommended for a smooth, safe installation.
Understanding LiftMaster Opener Installations and Why They Matter
Installations of LiftMaster garage door openers are more than mounting a motor and a rail; they set the foundation for safe, reliable door operation. LiftMaster models vary, but the core concepts—rail alignment, trolley travel, header bracket mounting, and sensor placement—remain consistent. According to GarageDoorAdjust, a deliberate planning phase improves performance and reduces service calls. In this section we cover model choices, compatibility with your door, and what to expect before you lift a finger. If your door is older or misbalanced, address that first; a new opener can mask underlying issues but won't fix them. A well-planned install minimizes noise, improves safety, and extends the life of springs and tracks. You will need basic tools, a helper for heavy lifting, and a calm work area free of curious pets and children. The goal is a secure mount, precise alignment, and a clean wiring setup that you can test safely after installation.
Safety Essentials for Garage Door Opener Installations
Safety first is not just a slogan—it prevents injuries and protects your equipment. Wear safety glasses and gloves, and ensure the garage is well-lit and free of bystanders during installation. Disconnect power to the circuit before handling any live wiring, and verify there is no residual voltage. LiftMaster openers rely on precise sensor alignment and safe-closure reversal; misplacement can cause false alarms or unsafe operation. Keep a second helper on site for heavy lifting and to assist with alignment and holding components in place while you secure brackets. Finally, consult the user manual for model-specific cautions, as some LiftMaster kits use different mounting patterns or sensor placements.
Compatibility, Measurements, and Preparations
Before you begin, confirm that your door and hardware are compatible with the LiftMaster model you’re installing. Note the door height, width, and spring type, as incorrect springs or misaligned tracks can place extra load on the motor. Measure the distance from the header to the door to determine proper rail length, and check ceiling height to ensure the opener will clear mounting points and the door when opening. A balanced door is essential; a door that sticks or binds increases opener strain and may shorten component life. Have a helper on hand to assist with heavy sections and to hold pieces steady as you position them. Finally, organize your workspace so all tools and parts are within reach, reducing the risk of accidental drops.
Tools, Parts, and Workspace Setup
A clean, organized workspace speeds installation and reduces mistakes. Start by laying out the LiftMaster rail segments, mounting brackets, and the opener itself on the floor where you have ample space. Keep a clean floor to prevent components from rolling away, and use a level to verify that the rail is straight during assembly. Identify all fasteners and wiring harnesses before you start; misplacing a connector can halt the job. If you’re unsure about certain parts, refer to the LiftMaster manual or GarageDoorAdjust guidance to confirm compatibility. Finally, ensure your power outlet near the garage door is accessible and meets electrical code requirements.
Mounting the Rail, Bracket, and Initial Alignment
The gunmetal rail and steel brackets must be mounted securely to support the opener’s weight. Begin by attaching the header bracket into solid joists in the ceiling, not just dry wall, then loosely hang the rail to allow for minor alignment. Use a level across the rail to check for plumb and ensure the rail is parallel to the door opening. Misalignment here leads to noisy operation and premature wear on the trolley and tracks. After marking the mounting points and confirming alignment, tighten the brackets and recheck level. A helper helps you maintain steady position while you secure all fasteners. Take your time at this stage to avoid buckling or sagging that can affect operation.
Mounting the Opener to the Rail and Installing the Trolley
With the rail securely in place, lift the opener assembly and align it with the trolley carriage. Attach the mounting bracket to the opener and slide it onto the rail, then tighten the fasteners per the manufacturer’s torque specs. The trolley should move smoothly along the rail with no binding. Confirm that the belt or chain runs evenly and that the pulley wheels rotate cleanly. If the door is heavy, use a second person to help raise and align the package. A careful, steady setup reduces vibration after the first test run.
Installing and Aligning Safety Sensors and Wiring
Safety sensors are critical for preventing injuries and ensuring reliable operation. Install the infrared sensor eyes on opposite sides of the door, about 6 inches off the floor and aligned so their lenses face each other directly. Use the provided mounting brackets and keep the wires neatly routed away from the moving parts. Connect the safety sensor wires to the opener’s sensor terminals, ensuring correct polarity where required. A loose connection can cause sensor failures or false triggers; double-check each wire and secure with cable clips. After wiring, test the sensors to ensure a clear path and responsive shutoff when obstructed.
Wall Control, Keypad, and Remote Programming
Mount the wall control at a convenient height for household members, typically near the door but out of reach of small children. Install the wall control and connect it to the opener as directed by the manual. If your LiftMaster kit includes a keypad, mount it in a dry location with a clear line of sight to the garage door. Program remotes by following the pairings steps: press the Learn button on the opener, then hold the remote control until the LED blinks. Repeat for additional remotes or keypads. Keep remotes out of reach of children and away from potential interference devices.
Calibration, Travel Limits, and Safety Tests
Calibration sets how far the door travels, how fast it moves, and how the auto-reverse feature responds. Use the limit screws on the opener to set the down and up travel so the door closes completely without crushing objects on the floor. Then perform a test: with the door closing, place an object on the floor and confirm that it stops and reverses. Repeat with the door opening to ensure smooth travel and no binding. Finally, use the wall control to operate the door through several cycles, observing for irregular noises or wobbles. If anything seems off, recheck alignment, sensor operation, and cable connections.
Maintenance, Troubleshooting, and Common Pitfalls
Once the LiftMaster opener is installed, establish a routine for lubrication and inspection. Wipe down the rail and moving parts with a dry cloth, and lightly lubricate the roller wheels and springs where recommended by the manufacturer. Inspect weatherstripping and seals to maintain energy efficiency. Common pitfalls include misaligned sensors, incorrect limit settings, loose mounting hardware, and using incompatible remotes or keypads. If a problem arises, consult the manual's troubleshooting section, verify wiring connections, and re-test safety features. Regular checks extend the life of the opener and reduce unscheduled repairs.
Tools & Materials
- ladder or scaffold(Stable, tall enough to reach mounting points)
- drill/driver with bits(Phillips and driver bits for mounting screws)
- level(For rail alignment)
- tape measure(Door width, rail length, mounting points)
- stud finder(Locate joists for header bracket)
- wrench set and/or sockets(Torque hardware to spec)
- wire stripper/cliers(Electrical wiring tasks)
- safety glasses(Eye protection)
- screwdrivers (Phillips/flat)(General assembly)
- voltage tester(Verify circuit is de-energized)
- pencil/marker(Mark mounting points)
- LiftMaster compatible rail kit(Model-agnostic rail kit for LiftMaster)
- safety sensor kit(IR sensors and mounting hardware)
- cable clips/zip ties(Neat wire management)
- optional helper(Assist with lifting and alignment)

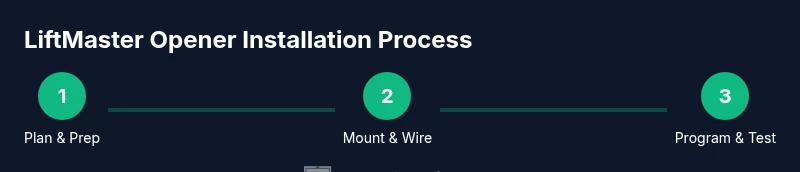

Steps
Estimated time: 90-150 minutes
- 1
Prepare the workspace and verify compatibility
Clear the area, inspect the door for balance, and confirm LiftMaster compatibility with your door. Verify the door opens and closes smoothly by hand before introducing the opener.
Tip: Have a helper assist with heavy lifting and alignment. - 2
Disconnect power and secure the garage
Turn off the circuit breaker or unplug the existing unit if applicable. Remove any nearby items that could snag wiring during installation.
Tip: Verify power is truly off with a tester before touching any wiring. - 3
Unbox and assemble rail sections on the floor
Lay out the rail segments, join them as per the manual, and ensure the trolley wheel assembly is free of debris before mounting.
Tip: Keep track of screws and small parts to avoid misplacement. - 4
Install the header bracket into ceiling joists
Locate solid joists, mark the points, and fasten the header bracket securely. Check that the bracket is level to prevent misalignment later.
Tip: Use a stud finder to confirm joist locations and avoid drilling into drywall-only spots. - 5
Hang the rail and align with the door
Lift the rail assembly into place and position it so it mirrors the door opening. Re-check level and parallel alignment with the door.
Tip: A helper holding the rail while you secure it helps avoid kinks. - 6
Mount the opener to the rail and attach the trolley
Secure the opener to the rail using the supplied brackets, then attach the trolley and ensure smooth travel along the rail.
Tip: Do not overtighten; follow torque specs from the manual. - 7
Install safety sensors and route wiring
Mount sensors on opposite sides of the door at a height that keeps them clear of tracks. Connect wires to the opener terminals and secure with clips.
Tip: Test sensor alignment by crossing them with your hand in front of the beam; the opener should stop when blocked. - 8
Program remotes, keypad, and wall control
Follow the Learn/Program steps to pair remotes, keypad, and wall control with the opener. Label all remotes for easy identification.
Tip: Keep original remotes in a safe place for future use or resale. - 9
Calibrate limits and test operation
Set up travel limits, test auto-reverse, and run multiple open/close cycles. Confirm the door closes completely and reverses on obstruction.
Tip: Repeat tests after any adjustment to confirm stability.
Got Questions?
Is it safe to install a LiftMaster opener myself, or should I hire a pro?
Installing a LiftMaster opener can be done by a skilled homeowner, but it involves high-tension springs and electrical work. If you lack experience with wiring or lifting heavy components, consider professional installation.
You can do it if you’re comfortable with wiring and lifting, but if you’re unsure, hire a pro.
Do I need to disconnect power before starting?
Yes. Always disconnect power to the existing system before handling wiring or mounting components to prevent shock or injury.
Yes, always cut power first to stay safe.
Will my existing springs affect the LiftMaster installation?
The door springs must be balanced and in good condition before installing a new opener. A misbalanced door can overwork the opener and shorten its life.
Balance the door first to ensure the opener lasts longer.
How do I program remotes and keypad?
Press the Learn button on the opener, then press and hold the remote until the LED blinks. For remotes and keypad, repeat the process as directed in the manual.
Use the Learn button and hold the remote until it pairs.
Can I install LiftMaster on more than one door?
LiftMaster kits are typically designed for one door per opener. You can install separate openers for multiple doors if needed.
Multi-door installations require separate kits and mounting points.
What should I do if the sensors won’t align or stay on?
Double-check mounting height and ensure the beams face each other directly. Re-seat connectors and test again. If problems persist, inspect wiring and consult the manual.
Recheck alignment and wiring if sensors fail to stay on.
Watch Video
Quick Summary
- Plan before you start and verify compatibility.
- Safety sensors and proper wiring are critical for safe operation.
- Calibrate limits carefully to ensure smooth, safe door travel.
- Program remotes and keypad correctly for reliable access.
- Regular maintenance extends hardware life and reduces failures.
