Door Seal for Garage Doors: Your Complete DIY Guide
Learn how to inspect, select, measure, cut, and install a door seal for your garage door. This comprehensive guide covers weather-stripping, insulation, and best practices to improve energy efficiency and keep pests and drafts out.
You will install a door seal for your garage door by removing old weatherstrip, cleaning the frame, selecting a compatible gasket, cutting to size, and securing it with screws or adhesive. Then test for drafts and adjust compression for a tight seal. This quick task can reduce energy loss, improve door operation, and prevent drafts, dust, and pests from entering.
Why a door seal for garage door matters
A door seal for garage doors plays a pivotal role in energy efficiency, pest prevention, and overall climate control inside the garage. A good seal minimizes warm or cool air escaping, reducing the load on heating and cooling systems. The GarageDoorAdjust team notes that even small gaps around the bottom and sides of a garage door can contribute to noticeable drafts over time. By installing the right seal and maintaining it, homeowners can create a more comfortable space, reduce dust intrusion, and extend the life of the door hardware by reducing wind-driven wear. This section outlines the reasons sealing matters, practical outcomes, and how a quality seal fits into a broader maintenance plan. As you read, keep in mind that a proper seal also protects against moisture and small critters that might invade through gaps.
Types of garage door seals
Garage door seals come in several varieties, each tailored to different door designs and climate conditions. The most common are bottom bulb seals for sectional and roll-up doors, fin seals that bend with the door edge, and foam or neoprene edge seals that provide a flexible barrier. Some seals are designed for extreme temperatures, while others emphasize noise reduction and smoother operation. When choosing, consider the door type (sectional, tilt, or roll-up), the thickness of the door bottom, and the level of exposure to wind and rain. The right seal pairs well with a clean, dry mounting surface and regular maintenance to prevent compression fatigue.
How to choose the right seal for your door
To pick the correct seal, start by identifying your door type and the climate where you live. For cold or wet environments, thicker rubber or neoprene seals that resist cracking perform better. If your door has uneven gaps, a flexible bulb seal or a fin seal can accommodate irregularities. For doors with a recessed bottom groove, a bulb-style seal that snaps into place is often easiest to install. Consider material longevity, UV resistance, and compatibility with your existing weatherstripping. Finally, ensure the seal length matches the door width with a small margin for trimming.
Measuring and preparing the door area
Accurate measurements prevent waste and ensure a snug fit. Start by measuring the width of the door bottom and the height of any gaps along the sides. Clean the mounting surface with a degreasing cleaner or isopropyl alcohol to remove grease, dust, and old adhesive. A dry run of the seal will reveal any corners or protrusions that require trimming or bending. If you notice rust or damaged fasteners, address those issues before proceeding. A clean, dry, and smooth surface yields the best adhesion or mechanical fit and reduces the risk of seal misalignment.
Cutting and fitting the seal
Most door seals are designed to be cut with a utility knife or heavy scissors. Measure the door width, subtract a small allowance (1–2 cm) for expansion, and mark the cut line clearly. When trimming, cut squarely for a clean edge that seats evenly. Test-fit the seal along the door bottom to confirm a continuous seal without gaps. If the seal needs bending at corners, make gentle kinks rather than sharp bends to prevent cracking. Finally, align the seal so the interior edge sits flush with the door material to avoid snagging.
Installation methods: screws, adhesive, or dry-fit
There are several ways to install a door seal, depending on the seal type and door design. Bottom bulb seals with predrilled holes can be mounted using screws or rivets; adhesive-backed seals rely on a strong contact adhesive. Some seals are designed for a dry-fit during which you temporarily press the gasket in place to verify fit before permanent attachment. If you use adhesive, apply evenly and allow the recommended curing time before testing. For screw-mounted seals, evenly space screws to prevent warping.
Testing and adjusting for a perfect seal
After installation, test with a simple draft check: close the door on a piece of paper or a lighted tissue and observe where it holds. If you feel drafts, adjust the seating by ensuring the bottom edge is level across the entire width. Check for pinch points that could prevent a tight seal and trim if necessary. In windy conditions, stand by the door to feel air movement and verify that the seal compresses uniformly. A properly installed seal should minimize light and airflow while still allowing smooth door operation.
Maintenance and long-term care
Regular maintenance extends seal life and performance. Clean the seal with mild soap and water, avoid harsh solvents, and inspect for cracks, tears, or compression fatigue every season. Lubricate any moving hardware per the manufacturer’s recommendations to reduce friction that can degrade seals. Replace worn seals promptly to prevent energy loss, moisture problems, and pest intrusion. Store spare seals in a cool, dry place and keep fasteners organized to simplify future replacements.
Authoritative sources and guidance
For further reading and safe practice, consult trusted sources such as Energy.gov on weatherization and weather-stripping, as well as OSHA guidelines on tool use and personal safety when handling materials and cutting. University extension publications often provide practical, localized advice on door weatherproofing and energy efficiency. These resources help ensure your installation aligns with best practices and safety standards.
Authoritative sources
- Energy.gov – Weatherstripping and door insulation guidelines (gov)
- OSHA.gov – Safety guidelines for hand tools and personal protective equipment (gov)
- University extension publications on weather sealing and energy efficiency (edu)
Tools & Materials
- Garage door seal kit (bottom weather seal)(Choose a model compatible with sectional, tilt, or roll-up doors and the door thickness.)
- Measuring tape (25–30 ft)(Accurate width measurement is critical for a proper fit.)
- Utility knife or sharp scissors(For trimming seals to length.)
- Screwdriver or drill with screwdriver bit(Needed if your seal uses screws or fasteners.)
- Silicone or acrylic weatherproof sealant (optional)(For sealing small gaps at the threshold after seal installation.)
- Marker or chalk(Mark cut lines clearly on the seal.)
- Cleaner (mild soap and water) or isopropyl alcohol(Prep the mounting surface for adhesion.)
- Safety gear: gloves and eye protection(Protect hands and eyes during cutting and installation.)
- Masking tape(Use to hold seal in place temporarily during fit testing.)

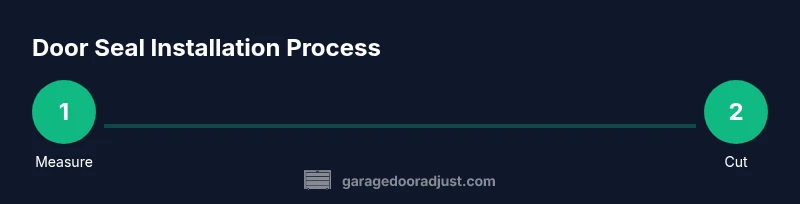

Steps
Estimated time: 60-90 minutes
- 1
Prepare the door area
Clear the door bottom and sides. Remove any old weatherstripping and clean the mounting surface with a mild cleaner or isopropyl alcohol. A clean surface ensures the new seal adheres or seats properly and reduces the chance of misalignment.
Tip: Wear gloves to protect hands when removing old seals and handling sharp edges. - 2
Measure the door width
Use a tape measure to determine the total width of the door bottom. Note any irregularities or protrusions at corners. Record measurements for cutting the seal to the correct length.
Tip: Measure at multiple points and use the smallest measurement to avoid overhang. - 3
Cut the seal to length
Transfer the measurement onto the seal and cut with a sharp utility knife or scissors. Cut straight across for a clean edge. If the seal has pre-formed curves, mimic them during cutting to avoid binding.
Tip: Cut slightly shorter than your measurement if you plan to compress the seal during fit testing. - 4
Test-fit the seal
Place the seal along the door bottom without attaching to confirm fit. Check for overlaps, gaps, or warping and adjust as needed before final mounting.
Tip: Use masking tape to hold the seal in place temporarily during the test fit. - 5
Attach the seal
Secure the seal using screws or the adhesive specified by the manufacturer. Start at one corner and work toward the opposite end, ensuring even seating and no twists.
Tip: If using adhesive, follow the cure time and apply even pressure across the entire length. - 6
Seal corners and gaps
Address any small gaps at corners by bending the seal carefully or adding a small strip of sealant where needed. Ensure the seal performs without binding the door.
Tip: Avoid over-stuffing small gaps; too much material can obstruct door movement. - 7
Test the seal again
Close the door and check for drafts by feeling with your hand or using a simple paper test. Re-check all fasteners and seating.
Tip: Test in a windy environment if possible for a more accurate assessment. - 8
Final checks and clean-up
Wipe away any adhesive residue, store leftovers, and document the date of installation for future maintenance.
Tip: Take a photo of the final setup for reference during next year’s maintenance.
Got Questions?
What is the best type of seal for a cold climate?
A thicker rubber or neoprene bottom seal with good flex is typically more durable in cold weather. It should resist cracking and stay flexible at lower temperatures.
For cold climates, choose a thicker rubber seal that remains flexible in low temperatures to maintain a good seal.
Can I install a door seal myself without pro help?
Yes. With careful measurement, cutting, and secure mounting, this is a DIY-friendly task. Follow manufacturer instructions for your specific seal.
Yes, you can do it yourself by following the seal's instructions and using the right tools.
How do I fix leaks at corners or transitions?
Seal small gaps with additional sealant or a corner-specific seal, ensuring the main seal remains free to move with the door.
Use extra sealant for small gaps and avoid obstructing the door's movement.
How often should I replace garage door seals?
Replace worn seals when you notice cracks, tears, or persistent drafts. Regular visual inspections help determine replacement timing.
Check seals periodically for wear and replace when you see cracks or gaps.
Should I remove existing weatherstripping before installing a new seal?
Yes, remove old material to ensure a clean mounting surface. If remnants remain, clean thoroughly before applying the new seal.
Yes, remove old weatherstripping and clean the surface before installing the new seal.
Do I need special tools for installation?
Basic hand tools, a utility knife, and tape measure are sufficient for most DIY installations. Follow the seal’s instructions for any specialized steps.
Usually just basic tools, a knife, and a tape measure are enough.
Watch Video
Quick Summary
- Measure carefully before cutting seal length.
- Choose a seal type that matches climate and door design.
- Dry-fit first, then secure with screws or adhesive.
- Test for drafts and adjust seating for a tight seal.
- Perform seasonal checks to maintain energy efficiency.
