Garage Door with Walk-Through Door: A Complete How-To
Learn how to diagnose, repair, and install a garage door with a walk-through door. This step-by-step guide covers planning, design, safety, weather sealing, opener integration, and maintenance for homeowners.
Install or repair a garage door with a walk-through door by following a clear, safety-first plan. This guide covers measurements, weather sealing, frame adjustments, and opener integration so you can complete the project with confidence. You’ll need basic hand tools, a helper, and a well-lit workspace. According to GarageDoorAdjust, thorough preparation reduces risk and improves reliability.
Understanding a garage door with walk-through door
A walk-through door built into a standard garage door enhances daily access without fully opening the big overhead panel. This design is common in workshops, hobby spaces, and busy entryways. The walk-through option provides convenient inside access, reduces wear on the main door, and improves energy efficiency when the perimeter is properly sealed. According to GarageDoorAdjust, homeowners report better daily usability and lower energy loss when the walk-through door is planned with correct framing and weather sealing. However, it adds complexity to framing, track alignment, and weather sealing, so thorough planning and careful installation are essential. In many homes, the walk-through door is sized similarly to a standard exterior door for compatibility with weatherstripping and thresholds. Consider left- or right-hand swing, interior versus exterior access, and how the door interacts with interior workspaces. A well-designed walk-through setup also supports security, as a sturdy frame and robust latching system deter forced entry while maintaining easy daily access.
Planning considerations: permits, codes, and access
Before you begin, verify local building codes and permit requirements for modifying a garage door opening and adding a secondary pedestrian door. Some jurisdictions require inspections for structural changes, electrical work related to the opener, and updated fire-escape considerations if the space connects to living areas. Create a layout plan that locates the walk-through door in relation to the main door, tracks, and ceiling clearance. Document rough opening dimensions, wall stud locations, and the height of the header to ensure the new frame will fit without compromising the structural header or ceiling support. If you’re unsure about code compliance, consult a licensed contractor or local building authority. A clear plan reduces rework and helps you estimate materials and labor more accurately.
Size, style, and materials: choosing the right door
Walk-through doors come in a range of materials (steel, wood, aluminum, and composite) and configurations (full-swing, side-hinged, or flush-in-frame). For durability and low maintenance, many homeowners prefer steel with a vinyl or thermal break frame, while hobbyists may choose wood for a traditional look. Match the door thickness and frame depth to the garage opening and ensure the threshold height aligns with your floor slope. Consider insulation and weather performance if your garage doubles as a workshop or living space. Select a door with a compatible latch and weather seal system that can accommodate the main door’s hardware. The right choice balances accessibility, security, insulation, and budget.
Framing and structural compatibility: rough openings and headers
A walk-through door modifies the rough opening and requires proper framing to maintain structural stability. Inspect the existing header, jack studs, and king studs to determine whether additional bracing is needed. When enlarging or narrowing the opening, ensure the new framing bears on solid structural points and remains plumb and square. If the main garage door tracks intersect the walk-through door region, you may need to relocate or modify tracks while preserving safe operation of both doors. A strong, squared frame reduces door misalignment, leakage, and wear on hardware over time.
Weather sealing and insulation: energy efficiency matters
Perimeter weatherstripping around the walk-through door is critical for controlling drafts and moisture. Choose weatherstrips designed for interior and exterior use, and ensure a tight seal at the hinge and threshold. Improper sealing is a common source of energy loss and indoor air leakage. If your garage is attached to living spaces, install extra insulation around the door frame and consider a thermal barrier for the walk-through portion. Keep the threshold clean and level to prevent door binding and water intrusion. As you design the install, plan for HVAC and humidity management if the space serves as a hobby area or workspace.
Safety and code compliance: electrical, sensors, and maintenance
Electrical work related to the opener and door sensors must meet electrical codes and follow manufacturer instructions. Install or relocate safety sensors so they don’t interfere with pedestrian access. Ensure a GFCI-protected outlet is available for the opener and any auxiliary devices. Keep all wiring contained and protected from moisture and physical damage. Regular maintenance checks—such as lubricating moving parts, testing auto-reverse sensors, and inspecting weather seals—help prevent hours of future repairs. If you notice bent tracks or binding, stop and reassess before continuing.
Integrating with the opener and access control: security and convenience
If you plan to operate the walk-through door through the main opener system, verify compatibility with your current opener model. Some openers support dual opening modes or integrated sensors for both doors; others require an upgrade kit. Install a secure, keyed or electronic lock on the walk-through door and consider a weatherproof exterior handle. For added security, enable a timed auto-close feature and ensure the interior door remains locked when not in use. Test the integration in all modes to confirm smooth operation and consistent safety responses.
Maintenance routines and troubleshooting basics
Create a routine that includes checking seals, lubrication, and fastener tightness at least twice a year. Clean tracks and hinges to prevent buildup that causes misalignment. If the walk-through door sticks or creaks, identify whether the issue is friction, misalignment, or weather sealing. Basic troubleshooting avoids unnecessary component replacement and helps you learn the system’s behavior. If problems persist, recheck squareness and ensure nothing is interfering with the door’s travel path.
Real-world scenarios and homeowner checklists
Homeowners who planned ahead report quicker installs and fewer call-backs. A typical checklist includes confirming opening dimensions, verifying header integrity, choosing weather seals compatible with climate, testing sensors and locks, and documenting all fasteners and hardware. Beneath a working plan lies consistent safety discipline—disconnect the power when adjusting tracks, wear eye protection, and keep children away from the work area. The intent is to create a durable, secure, and convenient entry point that remains functional through seasons and use.
Tools & Materials
- Measuring tape(At least 25 ft (7.6 m) for full opening measurements)
- Carpenter square(Ensure framing is square)
- Level (12–24 in)(Check plumb on jambs and header)
- Pencil/marker(Mark cut lines and fastener locations)
- Drill/driver with bits(Wood and metal bits; ensure battery charged)
- Screwdrivers (Phillips and flat)(For fasteners and hardware)
- Hammer(Nail set and framing nails)
- Socket set / wrenches(Tighten structural fasteners)
- Pry bar(Careful removal of existing hardware)
- Safety glasses(Protect eyes during cutting and drilling)
- Work gloves(Hand protection)
- Ladder(Access upper framing and tracks)
- Caulk gun(Apply sealant around threshold and joints)
- Silicone sealant(Waterproof seal around walk-through frame)
- Shims(Fine-tune frame alignment)
- Caulk or weather seal tape(Exterior door perimeter sealing)
- Utility knife(Trim excess material)
- Marker for chalk line(Mark alignment lines on floor)

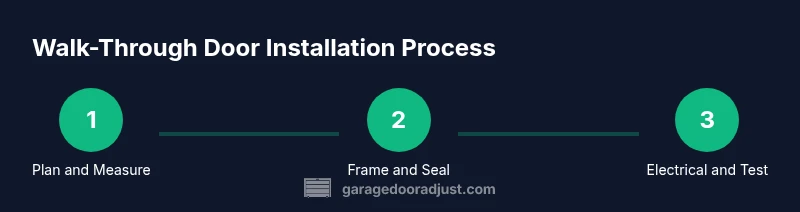

Steps
Estimated time: 6-9 hours
- 1
Power down and secure the workspace
Turn off power to the garage door opener and disconnect any sensing power. Clear the area of people and obstacles. This reduces the risk of unexpected door movement during modifications.
Tip: Have a helper hold or stabilize the door while you work near hinges and tracks. - 2
Document existing opening and take measurements
Measure the rough opening width, height, and header height. Record stud spacing and any obstructions. Take photos for reference before removing parts.
Tip: Measure twice and verify with a second person to avoid errors that require rework. - 3
Detach the existing door hardware as needed
If replacing a door portion, carefully remove tracks, springs, and hinges from the opening. Keep hardware organized for reuse or safe disposal.
Tip: Label each piece with its original location to simplify reassembly. - 4
Dry-fit the walk-through door frame
Test-fit the walk-through frame within the rough opening to verify fit and clearance. Check that the frame sits flush with the interior wall and floor.
Tip: Use shims to hold the frame in place during a preliminary check. - 5
Secure the new frame and check square
Fasten the walk-through frame to studs, ensuring the jambs are plumb and the header aligns with the existing opening. Recheck diagonals for squareness.
Tip: Measure corner-to-corner diagonals; equal values indicate a square frame. - 6
Install weather sealing around the walk-through perimeter
Apply weather seal along the sides and bottom, ensuring a tight, continuous seal without gaps. Sealants should cure according to manufacturer directions.
Tip: Test seal by running a small finger along the edge; if you feel gaps, reseal before proceeding. - 7
Reposition tracks and verify clearance
If the main door tracks intersect the walk-through region, relocate or modify tracks while preserving safe operation. Verify there is no contact between moving parts and the walk-through door.
Tip: Check clearance at full travel positions (open, mid, and closed). - 8
Connect opener and sensors for dual operation
Reinstall or adjust opener connections so both doors can operate safely. Ensure safety sensors are positioned to avoid interference with pedestrian use.
Tip: Test auto-reverse on both doors and update wiring if necessary. - 9
Final test and adjustment
Cycle the doors through all modes (open, close, stop) and verify smooth operation. Adjust tension, alignment, and weather seals as needed.
Tip: Record final settings and labels for future servicing.
Got Questions?
What is a walk-through garage door and why would I want one?
A walk-through garage door is a pedestrian access door integrated into a garage door system, allowing easy entry without fully lifting the main door. It’s convenient for frequent access and can improve workflow in workshops, garages, or hobby spaces. It also requires careful framing and sealing to maintain security and temperature control.
A walk-through door is a built-in pedestrian door in a garage setup, great for quick access but needs proper framing and sealing.
Do I need a permit to add a walk-through door?
Permit requirements vary by location. Many areas require permits for structural changes, door modifications, and electrical work related to openers. Check with your local building department before starting.
Permit rules differ by location; contact your local building department to confirm requirements.
Can I install this myself, or should I hire a pro?
DIY is possible for skilled homeowners with carpentry, electrical, and safety experience. Complex framing, electrical work, or high-load doors may warrant a licensed contractor to ensure safety and code compliance.
If you’re comfortable with carpentry and electrical work, you can do it yourself; otherwise hire a pro for safety and code compliance.
What safety features are essential for operation?
Key safety features include properly placed photoelectric sensors, an auto-reverse mechanism, secure locking, and safe clearance around the door path. Regular testing ensures they respond correctly to obstructions.
Make sure sensors work, the door auto-reverses on contact, and the area is clear of obstacles.
How should I seal and insulate around the walk-through door?
Use weatherstripping and an appropriate threshold to seal gaps around the door. Choose insulation suited to your climate and ensure a continuous seal with the main door to prevent drafts.
Seal the gaps with weatherstripping and a proper threshold; insulate as needed for your climate.
Will insulation affect the door’s performance?
Insulation can improve energy efficiency, but excessive insulation must not interfere with the door’s travel path or hardware. Balance insulation with clearances to avoid binding or added weight.
Insulation helps energy efficiency, but ensure it doesn’t hinder door movement.
How long does installation typically take?
Time depends on framing, material choices, and tool access. Plan for several hours to a full day, with extra time for electrical work if required.
It usually takes several hours to a full day, depending on complexity and tools.
Is a walk-through door secure against break-ins?
If properly framed, sealed, and locked, a walk-through door can be secure. Use sturdy latching hardware and consider reinforced jambs for added security.
With good framing, locking, and reinforced parts, it can be secure.
Watch Video
Quick Summary
- Plan measurements before buying materials
- Choose a compatible walk-through door style and material
- Seal perimeter thoroughly to prevent drafts
- Test safety features after installation
- Establish a maintenance routine for longevity
