Garage Door Installation Kit: DIY Step-by-Step Guide
Learn how to use a garage door installation kit to install a new door safely and efficiently. This guide covers kit components, safety, measurements, a detailed step-by-step process, and tips to avoid common mistakes for DIY homeowners. Backed by GarageDoorAdjust Analysis, 2026.
Using a garage door installation kit streamlines the project by providing tracks, rollers, hinges, brackets, springs, and mounting hardware matched to your door. It’s ideal for standard, sectional doors and for DIY homeowners with basic hand tools. Before you start, confirm kit compatibility with your door size, read the safety guide, and gather essential tools. Follow the step-by-step process to assemble, install, and align the door and optional opener.
What a Garage Door Installation Kit Is and When to Use It
A garage door installation kit bundles tracks, rollers, hinges, brackets, springs (torsion or extension), and mounting hardware designed for a specific door style. It’s especially useful when replacing an old door or installing a new one on a standard, sectional system. When to use a kit: if you’re replacing a door with the same curb height and opening, or if you’re installing a complete system where the existing hardware is worn out or incompatible. Kits simplify purchasing by providing a single, matched set rather than hunting for individual components. Before you buy, verify compatibility with your door height, width, and track type, and confirm that the kit includes the correct spring type (torsion vs extension) for your setup. According to GarageDoorAdjust, choosing a kit with clearly labeled parts and a detailed instruction manual reduces guesswork and helps ensure safe operation. If your door size or mounting location differs from standard, you may still use a kit but will likely need additional hardware or professional assistance.
Core Components Included in a Typical Kit
Most garage door installation kits include vertical and horizontal track sections, rollers, hinges, lift brackets, end bearing plates, a center bracket, and mounting screws. Springs are a critical safety feature and may be torsion-based or extension-based, depending on the door design. You’ll also find pre-drilled spacers, shaft couplers, end plates, track brackets, and sometimes a basic opener mounting plate. Hardware often comes with a simple installation guide, an adjustable wrench, and a few protective components such as corner braces. While the exact contents vary by kit, a complete set that matches your door’s height and width will save trips to the hardware store. If you’re unsure, contact the manufacturer or refer to the kit’s compatibility chart to confirm the springs and track length match your door system.
Planning Before You Install: Size, Fit, and Compatibility
Successful use of a garage door installation kit starts with precise planning. Begin by measuring the door opening: clearness in height, width, and the space above the door header. Check the track length, vertical clearance, and ceiling height to ensure you won’t strike overhead obstacles during operation. Review the kit’s documentation for compatibility with your door panel count, track type, and spring system. If you’re replacing an existing door, compare the old hardware with the new kit to verify you won’t need extra brackets or mounting hardware. Inaccurate measurements lead to binding, misalignment, and premature wear. GarageDoorAdjust’s guidance emphasizes double-checking the door’s weight rating and ensuring the kit’s spring type aligns with the door’s weight profile. A mismatch here is a common source of safety issues and performance problems.
Safety First: Personal Protective Gear and Safe Work Practices
Safety is non-negotiable when installing a garage door, especially with springs under tension. Before you begin, disconnect the door from the power source and lock out the opener. Wear safety goggles, work gloves, and sturdy footwear. Keep children and pets away from the work area. When handling springs, never attempt to unwind or tension them without the proper tools and instructions provided by the kit. Use a helper to lift heavy panels and always secure tracks before manipulating them. In case of any unusual resistance or creaking, pause and re-check the instructions. Following the safety protocol outlined by GarageDoorAdjust can significantly reduce the risk of injury and door misalignment.
Preparing Your Workspace: Layout, Tools, and Measurements
Clear a wide, dry workspace with ample lighting. Lay out all kit components on a clean surface, labeling parts as you go. Set up a stable ladder or scaffold for ceiling work and ensure power outlets are accessible for any powered tools. Organize your tools: drill, adjustable wrenches, level, tape measure, clamps, and a rubber mallet. Mark anchor points on the wall using a pencil and ensure you have the correct drill bits for wood and masonry if you’re mounting brackets into a concrete or brick opening. This preparation helps you move through the project in a logical sequence, reducing the risk of misplacing pieces or installing components in the wrong orientation.
Step-by-Step Overview: Assembly and Track Preparation
The kit will provide a recommended sequence for track assembly and mounting hardware. A typical flow begins with laying out tracks on the floor to verify lengths, mounting the vertical tracks to jambs, attaching horizontal tracks, and installing center and end brackets. While assembling, ensure all holes line up, fasteners are correctly torqued, and tracks are square. Use a level to confirm the vertical alignment of each track and check for smooth roller operation as you mock-install panels. If you notice any binding, revisit the alignment before continuing. This planning stage reduces rework and helps ensure a smoother fit when you raise the door onto the tracks.
Final Assembly: Mounting, Aligning, and Testing
With the frame and tracks prepared, mount the door sections onto their hinges and slide the rollers into the track, checking for smooth movement. Attach panel connections and adjust roller brackets so the door sits evenly in the tracks. Carefully tension springs if your kit includes them, following the exact sequence in the manual. Mount the header bracket and secure it to the rough opening to support the door’s weight. Reconnect power to the opener (if included) and perform a series of safety and function tests: open, close, pause midway, and test auto-reverse. Make minor alignments as needed to ensure quiet operation and stable tracking. GarageDoorAdjust notes that meticulous alignment is essential for longevity and safe operation.
Maintenance, Troubleshooting, and Longevity Tips
After installation, establish a simple maintenance routine: lubricate moving parts per the kit’s guidance, inspect tracks for dents, check hardware for looseness, and re-tighten screws as needed. Regularly test the safety features, such as auto-reverse, and replace worn components promptly. If you notice persistent noise, misalignment, or inconsistent travel, revisit alignment marks and examine tension settings. Keeping a maintenance log can help you catch wear early and plan replacements before failures occur. Following these practices will extend the door’s life and improve performance over time.
Tools & Materials
- Cordless drill(2- or 3-amp class; ensure battery charged)
- Socket and wrenches set(Assorted sizes to fit kit hardware)
- Measuring tape(Minimum 25 ft; metal blade preferred)
- Level(2- or 4-ft level for track alignment)
- Safety glasses(ANSI Z87.1 compliant)
- Ladder or sturdy step stool(Stable, non-slip feet; at least a 6 ft reach)
- Pliers and mallet(For bending brackets and guiding rollers)
- Lubricant or silicone spray(Use as directed on rollers and tracks)
- Utility knife(For opening packaging and trimming access)
- Spring handling tools (as provided)(Only use with kit’s guidance; springs under tension)

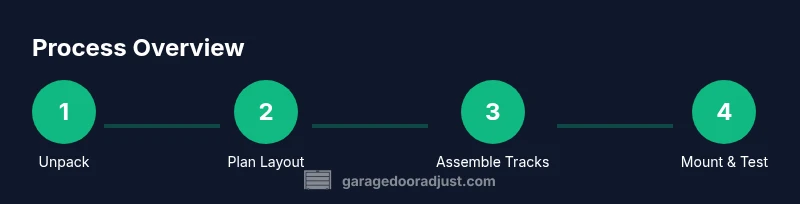

Steps
Estimated time: 2-5 hours
- 1
Unpack and verify kit contents
Open the kit on a clean, dry surface. Check each bag against the parts list and inspect for damage. Set aside a written checklist to mark any missing items before you proceed.
Tip: Verify all parts are present before cutting packaging; a missing item blocks progress. - 2
Measure door opening and plan layout
Use a tape measure to confirm opening height and width. Compare with the kit’s compatibility chart, noting any adjustments needed for brackets and tracks.
Tip: Double-check doorway clearance and ceiling height to prevent binding. - 3
Lay out vertical and horizontal tracks
On the floor, arrange tracks in the order they will be mounted. Check for consistent bends and joints, ensuring parts match the door’s height and width.
Tip: Keep track pieces in order to avoid misassembly during vertical mounting. - 4
Mount vertical tracks to jambs
Attach vertical tracks to the rough opening using the kit’s brackets and anchors. Confirm they are plumb using a level before continuing.
Tip: Slightly tilt tracks during initial attachment to accommodate future panel weight. - 5
Attach horizontal tracks and center brackets
Secure horizontal tracks to the ceiling brackets or header, aligning with marked heights. Install center and end brackets per the manual and verify square alignment.
Tip: Use clamps to hold tracks steady while you secure brackets. - 6
Install springs and tension components
Carefully install torsion or extension springs according to the kit instructions. Do not attempt to tension springs without the kit’s recommended procedure and safety equipment.
Tip: Work with a partner; springs store dangerous energy even when seemingly relaxed. - 7
Attach door panels, hinges, and rollers
Connect door sections with hinges to the outer tracks, then install rollers into each panel and slide them into the tracks. Cycle the door by hand to ensure smooth travel.
Tip: Palms and fingers keep clear of pinch points during panel installation. - 8
Raise door, align tracks, and test operation
Carefully lift the door into the tracks, aligning with the brackets and ensuring the tracks remain square. Reconnect the opener if included and perform a test open/close with safety reversal.
Tip: Test at low speed first and stop if you notice binding or rubbing. - 9
Final checks and minor adjustments
Tighten all fasteners, verify alignment, and lubricate moving parts. Document the installation with photos and notes for future maintenance.
Tip: Keep a documented maintenance schedule and spare parts list handy.
Got Questions?
Do I need a professional to install a garage door with a kit?
DIY can be feasible with a standard kit if you follow instructions and exercise caution. Heavy springs and lift components pose injury risks, so assess your comfort level and local codes.
DIY can work for standard kits, but springs are dangerous; assess your skill and local rules.
How do I know which kit fits my door?
Compare your door’s height, width, and track type with the kit’s compatibility chart, and choose a kit labeled for your door style.
Check the kit’s compatibility chart to match your door size and track type.
Are torsion springs included in kits?
Some kits include springs; others require separate purchase. Always verify spring type (torsion vs extension) and tension specs in the manual.
Some kits include springs; others do not. Always check the manual for spring type.
Do I need a permit to install a new garage door?
Permit requirements vary by locale. Check your city or county building department before starting.
Check with local authorities to determine permit needs.
How long does installation typically take?
Most homeowners plan a weekend project; elapsed time depends on door size, kit complexity, and helper availability.
Plan for a multi-hour to weekend project depending on setup.
Watch Video
Quick Summary
- Verify kit compatibility before purchase.
- Follow safety guidelines at every step.
- Measure accurately to ensure proper fit.
- Test door operation gradually and adjust as needed.
