Replace Window in Garage Door: A Step-by-Step Guide
Learn a safe, reliable method to replace a window in your garage door. This comprehensive guide covers measurement, pane selection, installation, weatherproofing, and long-term care for a durable, well-insulated result.
You will be able to replace a damaged or foggy window in your garage door and restore insulation and light. This guide covers measuring the opening, selecting a compatible pane, and installing it securely with weatherproof seals. You’ll learn about safety steps, where to buy replacement panes, and how to verify a proper fit before final testing.
Understanding why you might replace a window in a garage door
A window in a garage door can crack or fog over time due to temperature fluctuations, impact, or seal failure. Replacing it can restore light, reduce drafts, and improve security without replacing the entire door. According to GarageDoorAdjust, replacing damaged windows can restore insulation and light, helping to maintain comfortable indoor temperatures. Before you begin, ensure you have a proper replacement pane and a door in solid structural condition. Measuring the opening precisely helps avoid costly returns or misfits. This task is approachable for a confident DIY homeowner, but a warped frame or damaged hardware signals the need for professional help. Remember that a poorly fitted pane can cause rattling, leaks, or safety hazards when the door operates. Planning ahead minimizes risk and saves time during installation.
Safety first: prerequisites and precautions
Safety should always come first when replacing a garage door window. Start by unplugging the door opener and removing any remote access that could cause the door to move unexpectedly. Wear heavy–duty gloves and safety glasses to protect against sharp edges and broken glass. Keep children and pets away from the work area. If the door is mounted on a wall with pulleys or spring balance, avoid prying around the spring housing and consider consulting a professional for any sign of metal wear or frame damage. A clean, well-lit workspace reduces the chance of dropping glass during removal. If you feel unsure at any point, stop and reassess before proceeding.
Determine window type and required fitment: measure accurately
Windows come in tempered glass or durable acrylic; some doors use laminated glass for extra safety. Start by inspecting the existing pane for thickness and mounting style. Measure the opening at multiple points—top, middle, and bottom for width; left, center, and right for height. Use the smallest measurement to order a new pane, accounting for a tiny tolerance to prevent binding. Note the frame profile and any glazing points that secure the glass. Accurate measurements ensure a proper seal and reduce the risk of leaks or rattling after installation.
Plan your pane selection and frame compatibility
Choose a pane material that balances safety, weight, and insulation. Tempered glass is widely used for its strength, while acrylic panes are lighter and less prone to shattering. Consider tinting or UV coating to reduce glare and heat transmission. Verify thickness compatibility with the door frame and glazing beads—thicker panes may require slightly wider grooves or different glazing points. If your door uses double-pane construction, match the existing insulating gap width to maintain efficiency. Don’t forget to consider thermal breaks and edge seals that prevent drafts around the perimeter.
Replacing the window: a high-level overview of the process
The replacement workflow typically involves removing the old pane, cleaning the sash, seating the new pane, securing it with glazing points, and applying a weatherproof seal around the perimeter. If the frame is damaged, you may need to repair or replace the sash before inserting the pane. While the steps are straightforward, the specifics vary by door model and frame style. Keep a clean workspace and organize fasteners and glazing points in the order you’ll use them to stay efficient during installation.
Handling glass safely and mounting the frame
Gently remove the old glass using gloves and protective eyewear. If the pane is large, get a second set of hands to help prevent breakage. Clean the glazing beads and slot areas before seating the new pane. Position the pane squarely within the sash, then insert glazing points at regular intervals to hold it in place. Avoid overtightening bead screws, which can crack the glass or stress the frame. This stage benefits from a helper and a calm, methodical approach to avoid mishaps.
Sealing and weatherproofing the new pane
Apply a high-quality, paintable or clear sealant around the perimeter to seal against air and moisture. Use painter’s tape to mask edges and create clean lines if you’re applying sealant along the visible frame. Reinstall weatherstripping or replace worn seals to restore energy efficiency and reduce drafts. Allow the sealant to cure fully before operating the door. Inspect the seal after the first few door cycles to confirm that there are no gaps or seepage.
Testing the installation and troubleshooting common issues
With power restored, test the door’s operation slowly to listen for rattling or rubbing around the new pane. If you notice misalignment, recheck the pane’s seating and glazing bead fit. Leaks around the frame indicate insufficient sealing; reapply sealant and verify the weatherstrips. If the pane fogs or shows distortion, ensure the pane’s thickness and edgework match the frame demands and that glazing points are evenly distributed. Address issues promptly to avoid long-term damage.
Maintenance tips and long-term care after replacement
Regularly inspect the pane for chips or cracks and check the sash for warping. Clean the window with a non-abrasive cleaner and avoid harsh chemicals that could degrade seals. Revisit weatherstrips every season, replacing worn items to preserve energy efficiency. Document the pane type, size, and install date for future maintenance—this makes any future replacements faster and more accurate.
Tools & Materials
- Replacement window pane (tempered glass or acrylic)(Ensure size matches opening with a tolerance of ±1/8 inch)
- Measuring tape(Minimum 6 feet long; metric equivalent is fine)
- Flat straightedge/ruler(For accurate width/height checks)
- Glazing points or frame adhesive(To secure the pane in the sash)
- Glazing putty or sealant(Weatherproof seal around the pane)
- Putty knife(Scrape old glazing and clean beads)
- Silicone sealant and caulk gun(For perimeter sealing and curing)
- Gloves(Protect hands from sharp edges)
- Safety glasses(Eye protection during removal)
- Soft mallet or rubber hammer(Use only if needed to seat panel gently)
- Masking tape(Guard edges during sealing)

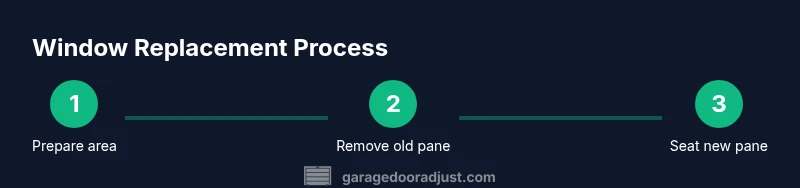

Steps
Estimated time: 60-120 minutes
- 1
Prepare the work area
Clear the workspace around the door and lay drop cloths. Disconnect power to the opener and ensure no motion will occur during the replacement. This reduces the risk of injury and glass breakage.
Tip: Have a second person assist for handling large panes. - 2
Remove the old pane
Carefully remove any glazing beads or frames holding the glass. Wear gloves and safety glasses, support the pane with both hands, and lower it slowly to avoid tipping.
Tip: Support corners to prevent chip-outs. - 3
Inspect the sash/frame
Check for warped, cracked, or rotten wood/aluminum; verify the frame is square and true. Address damage before proceeding to ensure a secure replacement.
Tip: Use a square to confirm frame alignment. - 4
Measure the opening accurately
Take width at top, middle, and bottom; take height at left, center, and right. Use the smallest measurement for pane ordering and maintain consistent margins.
Tip: Record measurements in inches or millimeters for your supplier. - 5
Select and prepare the replacement pane
Choose tempered glass or acrylic with matching thickness. Dry-fit the pane to ensure it fits the sash before applying any sealant.
Tip: Do not trim the pane in place; handle carefully to avoid cracks. - 6
Seat the pane and secure it
Place the pane in the sash, insert glazing points at even intervals, and tap gently with a soft mallet if needed. Ensure the pane is level and centered.
Tip: Avoid overtightening glazing points, which can crack glass. - 7
Seal the perimeter
Apply a continuous bead of silicone or glazing sealant around the edge. Press the sealant into any gaps and smooth for a clean finish.
Tip: Mask edges to achieve straight, neat lines. - 8
Reinstall sash hardware and weatherstripping
Reconnect any hardware you removed and reinstall weatherstripping. Ensure the door slides smoothly without binding.
Tip: Test several cycles to confirm no interference. - 9
Test and finalize
Plug in or power on the opener and operate the door slowly to confirm proper operation and seal. Check for drafts around the pane and adjust seals as needed.
Tip: Document install date and pane specs for future reference.
Got Questions?
Do I need to hire a professional to replace a garage door window?
If you have the right tools, steady hands, and the frame is in good condition, you can replace the window yourself. If the frame is damaged, the sash is warped, or the door’s balance is off, hire a pro to avoid safety hazards.
If your door frame is sound and you’re comfortable with measurements and glazing, you can DIY. Otherwise, consider a professional for safety and proper alignment.
What types of windows can I use in a garage door?
Tempered glass is most common for durability, while acrylic is lighter and safer to handle. Laminated glass adds extra strength and reduces break risk. Choose a pane that matches the door’s thickness and frame profile.
Most doors use tempered glass or acrylic. Pick a pane that fits your frame and provides the safety features you want.
How do I measure for a replacement pane?
Measure width and height at multiple points and record the smallest width and height. Use inches or millimeters consistently and bring these numbers to your supplier to ensure a proper fit.
Measure at the top, middle, and bottom for width and the left, center, and right for height, then use the smallest measurements for ordering.
Is replacing a garage door window safe?
Yes, when you disconnect power, wear PPE, and follow proper steps. If you feel unsure at any point, stop and consult a professional.
Yes, but only if you follow safety steps and have the right tools. If in doubt, call a pro.
How long does replacement typically take?
Most replacements take about 1-3 hours depending on frame condition and pane type. Allow extra time for weatherproofing and sealing.
Typically between one and three hours, plus time for sealing and testing.
What should I do about weather seals after replacement?
Reinstall or replace weatherstripping to restore energy efficiency. Ensure a tight seal all around the frame.
Recheck the weather seals and replace them if they’re worn to keep drafts out.
Watch Video
Quick Summary
- Measure precisely and order for the smallest opening dimension
- Choose pane material with safety and insulation in mind
- Seal carefully to prevent drafts and leaks
- Test operation after replacement to confirm smooth function
- Document replacement details for future maintenance
