Garage Door High Lift Track: A Homeowner's Step-by-Step Guide
A homeowner-focused guide to diagnosing, adjusting, and maintaining the high lift track on a garage door. Learn safety tips, tools, step-by-step instructions, and maintenance to keep doors balanced, quiet, and reliable.
You will align and inspect a garage door high lift track to ensure smooth, safe operation. You’ll need a ladder, helper, wrenches, a level, and eye protection. Before starting, disconnect the garage door opener, secure the door in the down position, and clear the workspace. This guide covers alignment, fasteners, and test checks for proper function.
What is a high lift track and why it matters
The high lift track is the vertical-and-horizontal guide that carries a garage door as it moves from the closed to the fully open position. It plays a critical role in door balance, spring tension, and overall travel. According to GarageDoorAdjust, the track alignment influences how the door distributes its weight across the entire travel arc, which affects noise, balance, and the life of springs and rollers. When the track is out of plumb or the fasteners are loose, you may notice binding, sticking, or a door that seems to “drift” when opening. Understanding the high lift track helps homeowners diagnose problems quickly and avoid costly misalignment that can damage components over time.
Safety first: prerequisites and risk awareness
Before you touch the track, prioritize safety. Do not operate the door while you’re working on the system, and always disconnect the garage door opener to prevent accidental movement. Wear eye protection and gloves, and ensure the work area is clear of people and pets. Garage Door tracks are mounted to the wall with heavy bolts; improper handling can cause the door to snap shut or the track to shift unexpectedly. GarageDoorAdjust Analysis, 2026, emphasizes that many injuries occur during DIY repairs when the door is supported only by a person’s grip or a wobbly ladder. Take time to secure the door in the down position with a temporary prop or a helper.
How alignment affects door balance and travel
A misaligned high lift track disrupts the door’s balance and can put extra stress on torsion tubes, springs, and the opener. When the track isn’t perfectly vertical, rollers ride unevenly, increasing wear and creating more noise. The goal of adjustment is to restore square alignment with the vertical jambs and ensure the rollers move smoothly through the entire travel path. This reduces binding, lowers opener strain, and prolongs component life while improving safety.
Common misalignment symptoms and how to verify
Common signs include: the door binding or sticking near the top of travel, uneven gaps along the sides of the door, excessive noise during operation, or the door drifting up or down when released from the opener. To verify, check if the track is plumb using a level placed on the track’s surface, verify that mounting bolts are snug (not overtightened), and inspect for bent or cracked track sections. If the track shows obvious damage, replacement may be necessary rather than simple adjustment.
Preparation: workspace, safety gear, and reference points
Set up a clean work area under the door with a stable ladder and a helper if possible. Gather tools: a level, wrenches, screwdrivers, a rubber mallet, blocks of wood, marker, tape measure, and protective eyewear. Mark mounting positions with chalk to help you return to the original alignment if needed. Having reference points on the wall and door jamb helps you assess true vertical alignment during fine-tuning.
How alignment relates to spring balance and opener stress
The high lift track works in concert with the spring balance to raise and lower the door. If the track is out of alignment, the spring and rollers will compensate, creating extra resistance that can hasten wear or trigger false ‘open’/‘close’ signals from the opener. Proper alignment distributes load evenly and minimizes uneven wear on rollers, brackets, and axles. Maintaining the correct over-travel clearance also helps avoid rubbing on frame hardware.
Common mistakes and how to avoid them
Two frequent DIY errors are over-tightening mounting bolts and misreading plumb with the door partially open. Over-tightening can create stress fractures in the track or mounting points, while misreading plumb leaves you chasing a moving target. Always tighten bolts in small increments after each adjustment and re-check plumb with a level at multiple points along the track. If you’re unsure, pause and consult a professional.
Final recommendations and maintenance mindset
Regular inspection every 6-12 months helps catch issues before they become serious. Clean the track, lubricate with silicone-based lubricant, and replace worn rollers or brackets promptly. The GarageDoorAdjust team recommends documenting any adjustments with notes and photos so you can compare over time and spot drift early.
Tools & Materials
- Stable ladder(Reach high lift track safely; ensure it locks fully)
- Level (laser or spirit)(Check vertical plumb of track)

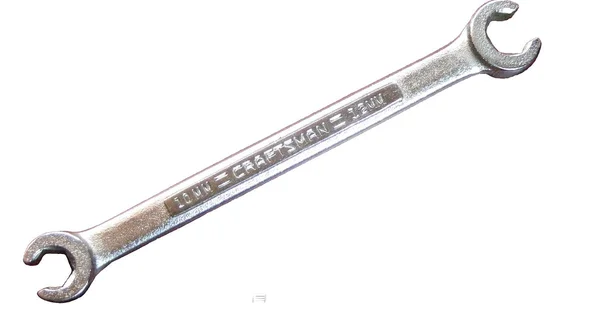

- Combination wrenches(Loosen/tighten mounting bolts)
- Screwdrivers (Phillips and flat)(Adjust screws for minor fine-tuning)
- Rubber mallet(Gentle taps to reposition track)
- Blocks of wood or plywood shims(Support and shim track alignment)
- Tape measure or ruler(Measure gaps and track position)
- Marker or chalk(Mark reference points on wall)
- Safety glasses(Protect eyes from debris)
- WD-40 or silicone lubricant (optional)(Lubricate rollers and hinges if sticky)

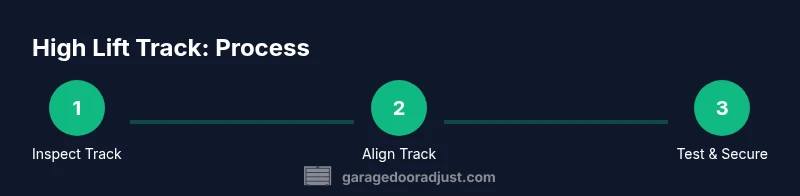

Steps
Estimated time: Total time: 60-120 minutes
- 1
Secure the door and disconnect power
Place a helper if possible and ensure the door is fully in the down position. Disconnect the garage door opener from power to prevent accidental movement while you work. Set a clear working area and wear safety gear.
Tip: Never work under a moving door; lockout power to avoid surprises. - 2
Inspect track mounting and identify misalignment
Visually inspect the high lift track for bends, cracks, or loose bolts. Use a level to verify vertical plumb and note any deviations from square with the jambs. Mark any misaligned sections for reference during adjustment.
Tip: Take photos from multiple angles before adjusting. - 3
Loosen mounting bolts enough to allow movement
Loosen bolts slightly so the track can shift without detaching. Do not loosen all mounting points at once; work incrementally to keep alignment reference intact. Apply a light protective block if you need to reposition the track without stressing the brackets.
Tip: Loosen by 1/4 to 1/2 turn at a time and recheck plumb. - 4
Adjust the track to achieve true vertical alignment
Gently shift the track using the rubber mallet and shims to bring it back to plumb. Check against the wall reference marks and re-verify with the level. Ensure the track is parallel to the door jamb and not skewed.
Tip: Move in small increments and recheck level after each adjustment. - 5
Tighten mounting bolts and re-test run
With track aligned, retighten mounting bolts progressively to avoid shifting. Slowly operate the door manually through its full range to feel for binding or mis-tracking. Listen for new scraping sounds and observe roller movement.
Tip: Do not over-tighten; overtightening can strip threads or warp the track. - 6
Reconnect power and test safety features
Reconnect the opener power and test auto-reverse, limit switches, and full open/close cycles. Watch for smooth travel without stopping abruptly or catching on the frame. Confirm all safety features function as designed.
Tip: If the door reverses unexpectedly, re-check alignment and spring balance. - 7
Document and plan ongoing maintenance
Record the dates and findings of your inspection and any adjustments. Schedule a semi-annual check to maintain alignment and lubrication of rollers and hinges. Replace worn components as needed to preserve safety and efficiency.
Tip: Keep a simple log to track wear patterns over time.
Got Questions?
What is a high lift track in a garage door system?
The high lift track guides the door’s movement from the vertical to the horizontal sections and maintains alignment with the springs and opener. It’s essential for smooth operation and proper balance. Misalignment can cause binding, noise, and extra wear on components.
The high lift track guides the door from vertical to horizontal and keeps everything balanced; misalignment can cause noise and binding.
Why would a high lift track become misaligned?
Tracks can shift from heavy use, loose mounting bolts, accidental bumps, or unequal spring tension. Over time, mounting brackets can sag, causing the track to lean or twist and create binding or pulling on one side.
Misalignment happens due to wear, loose bolts, or uneven spring tension, causing binding and leaning.
Can I adjust the high lift track myself?
Basic alignment and safety checks can be performed by a confident homeowner with proper precautions and tools. If you encounter bent tracks, damaged brackets, or uncertain spring tension, stop and call a professional.
Yes for simple alignment if you follow safety steps; stop if there’s damage.
What safety gear should I use?
Wear safety glasses, gloves, and sturdy closed-toe shoes. Use a stable ladder and have a helper when possible. Turn off the opener and keep hands clear of moving parts.
Eye protection, gloves, sturdy shoes, and a stable ladder are essential.
How do I know if a track needs replacement?
If the track is bent, cracked, heavily rusted, or shows severe misalignment after adjustments, replacement is safer than repair. Damaged rollers or brackets should also be replaced to restore function.
Bent or cracked tracks usually require replacement.
How often should I inspect the high lift track?
Perform a quick visual check and operate the door every 6 months. Look for loose bolts, misalignment, or unusual noises, and address issues promptly to prevent major failures.
Do a quick check every six months and call a pro if you’re unsure.
Watch Video
Quick Summary
- Identify misalignment with a level and reference marks
- Adjust in small increments and recheck plumb
- Secure power and test safety features after each adjustment
- Use protective gear and document changes for future maintenance
- Consult a pro if track damage is evident
