Garage Door Control Replacement: Step-by-Step Guide
A comprehensive, safe guide to replacing a garage door control panel or wall switch. Learn compatibility, wiring, programming remotes, testing safety Features, and maintenance for reliable operation.
Goal: Replace a faulty garage door control panel or wall switch and restore safe, reliable operation. You’ll verify compatibility, disconnect power, remove the old control, install the replacement, and reprogram remotes. Then test the opener, safety sensors, and reversal limits. Before you start, gather the right tools and follow safety precautions. The GarageDoorAdjust team recommends checking the manual for model-specific steps.
Why replace a garage door control panel
There are several reasons homeowners replace a garage door control panel, including a nonresponsive wall switch, erratic opener behavior, or the need to upgrade to a newer model with enhanced safety features. A control replacement can also resolve compatibility issues with modern remotes or smart-home integration. The control panel is the primary user interface for the opener and interacts with sensors, the motor, and safety features. According to GarageDoorAdjust, starting with the correct model and following the manufacturer’s wiring diagram reduces the risk of damage to the door or opener. Take time to confirm amperage requirements and ensure that the new unit matches the existing wiring harness. The safety of your family depends on a correctly functioning control, so prepare your workspace with good lighting and a clear, dry surface. In many homes the control sits high on the wall; use a sturdy step stool or ladder, and keep the area free of clutter. If the device feels warm or smells burnt, stop and replace with the power disconnected.
Compatibility and selecting the replacement control
Before buying a replacement wall control, verify compatibility with your opener brand and model. Start by locating the opener’s model number on the unit or in the manual, then cross-check the control’s mounting pattern, connector type, and voltage requirements. Some makers publish universal kits, while others require brand-specific panels. If you use a third-party replacement, ensure it supports safety features such as auto-reverse and manual release. GarageDoorAdjust analysis shows that most compatibility issues arise from mismatched connector types or wrong voltage, which can prevent programming or cause operation to be unpredictable. When possible, choose a kit that includes a mounting plate, screws, and a wiring diagram. Read the included installation instructions and confirm that the kit includes any necessary remote or keypad pairing instructions. Avoid mixing components from different brands unless the documentation explicitly allows it.
Safety first: power off, prep, and workspace setup
Safety is non-negotiable when replacing a garage door control. Begin by unplugging the garage door opener from its power outlet or switching the dedicated circuit breaker to the off position. Use a non-contact voltage tester to confirm no live voltage on the wires you’ll handle. Clear the work area of tools and keep children and pets away. If your garage has a sensor beam at the door, ensure you don’t inadvertently disturb it while reaching for wires. Stand on a stable ladder and wear protective gloves. Have a service manual or the replacement kit’s wiring diagram on hand. Label wires or take a photo before disconnecting anything so you can match them correctly on the new panel. Schedule the replacement for a time when you can test the system immediately after wiring, so there’s no delay in verifying operation.
Removing the old wall control panel and mounting the new one
Start by removing the wall plate screws and gently pulling the old panel away from the wall. If there’s a cover plate, remove it first to expose the terminal screws. Note which wire goes to which terminal by labeling or taking a picture. Disconnect the wires one by one, keeping them organized. Align the new control’s mounting holes with the wall, and secure it with the supplied screws. If the new panel uses a different mounting pattern, you may need the included mounting plate or an adapter kit. Before you snap the faceplate back on, double-check that the wires aren’t pinched and that the terminal screws are snug but not overtight. Reattach the faceplate and set the control unit aside for wiring steps in the next section.
Wiring the replacement control: color code, connectors, and safety checks
Follow the replacement kit’s wiring diagram precisely. Connect the common line to the appropriate terminal, then attach the safety sensor and any legacy wiring for the opener motor. When possible, keep wires tidy with cable clips and route them away from the moving door track. Use the correct wire gauge for outdoor or indoor use, and seal any exposed terminals with electrical tape as needed. If you encounter unfamiliar color codes, reference the diagram and your old configuration. Perform a quick continuity check with a multimeter if you have one, to ensure there are no shorts. After wiring, gently tug on each connection to confirm it sits securely. A loose connection is a frequent cause of intermittent operation or failure to program.
Programming remotes, keypad, and the receiver (if included)
If your replacement kit includes a new remote or keypad, follow the manufacturer’s pairing procedure. Typically you’ll press and hold a learn/pairing button on the opener while clicking a button on the remote. Ensure you erase any previous pairings if you are replacing the entire control system. Some models require you to enter a programming code or to perform a sequence of button presses in a specific order. After pairing, test each remote at varying distances to confirm reliable operation. If your system includes a keypad, program your PIN and test its function, including the lockout feature if your model supports it. If the opener relies on a receiver module inside the unit, ensure it’s properly seated and connected.
Testing the system: door operation, safety sensors, and limits
Power up the system and test the basic open/close cycle from the wall control first. Listen for smooth operation and verify the door stops against the safety sensors without reversing prematurely. Check the door’s travel limits from fully closed to fully open and adjust if necessary according to the manual. Test the auto-reverse function by placing a small object on the door’s path; the door should stop and reverse. If the door won’t reverse, recheck the wiring for the safety sensor circuit and ensure the wiring is intact. Finally, confirm the manual release works by pulling the emergency handle and confirming the door can be moved by hand when the opener is unplugged. Document any odd noises, jerky movement, or delay in response for future troubleshooting.
Troubleshooting common issues after replacement
If the wall control seems unresponsive, recheck the power source, ensure the breaker hasn’t tripped, and confirm the wiring matches the diagram. A non-responsive control may also result from a mispaired remote or keypad, so re-run the pairing steps. If the door stops mid-travel, inspect the track for obstructions, confirm proper balance, and verify the limit settings on the opener. Look for frayed wires or corroded terminals and replace any damaged components. Use the included reset or relearn procedure to restore the system to factory defaults if needed. When in doubt, consult the manual or contact customer support for your specific kit.
Maintenance and long-term care for your garage door control
To extend the life of the new control, keep the wall area clean and dry, check screws every few months, and recheck the wiring connections after heavy use or temperature changes. Replace batteries in remotes and keypads as needed and ensure the remote has a clear path to the opener. Periodically test safety features, including auto-reverse and beam sensors, and note any changes in performance. Store documentation and the replacement kit’s wiring diagram in a safe place for future upgrades. By following these practices, you’ll reduce the likelihood of future control failures and improve overall door reliability.
Tools & Materials
- Replacement garage door wall control kit (model compatible with your opener)(Includes mounting plate and wiring diagram)
- Screwdriver set (Phillips #2 and flathead)(For wall plate screws and mounting)
- Non-contact voltage tester(Confirm power is off before touching wires)
- Stepladder(Access to wall control area)
- Wire stripper/cutter(Prepare wires for connections)
- Electrical tape(Seal exposed conductors)
- Multimeter(Optional for continuity checks)
- Safety gloves(Hand protection)
Steps
Estimated time: 60-90 minutes

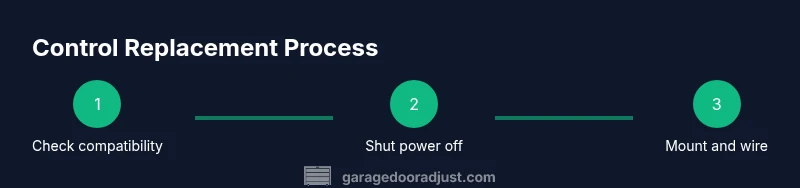

- 1
Power down and prep
Power off the opener at the wall or the main breaker. Use the voltage tester to confirm no voltage on exposed wires. Clear the area, set up a stable ladder, and lay out tools within easy reach.
Tip: Double-check power off with the tester before touching any wires. - 2
Remove old wall control
Unscrew the wall plate, gently pull the panel away, and expose terminal screws. If needed, remove a cover plate to access connectors. Photograph or label each wire to guide reassembly.
Tip: Take a quick photo to reference wire placements during reinstallation. - 3
Label and disconnect wires
Label each wire with tape or a marker. Disconnect wires one by one, keeping them organized in the same arrangement as the original panel.
Tip: Keep screws in a labeled container to avoid misplacement. - 4
Mount the new panel
Align the new control’s mounting holes with the wall. Secure with the provided screws. If a different mounting plate is needed, attach it per the kit instructions.
Tip: Check for a straight, flush fit before tightening fully. - 5
Connect wires to the new panel
Attach each wire to the corresponding terminal as shown in the wiring diagram. Keep wires tidy and away from the door’s moving parts.
Tip: Use the proper wire gauge and avoid over-tightening terminals. - 6
Program remotes/keypad
If your kit includes remotes or a keypad, initiate pairing as described in the manual. Erase old pairings if replacing the whole control.
Tip: If there’s no pairing button, consult the manual for the exact steps. - 7
Restore power and test basics
Plug the opener back in or reset the breaker. Test the wall control for open/close cycles and listen for smooth operation.
Tip: Test from both wall control and remotes to verify reliability. - 8
Test safety features
Place an object on the door path to test auto-reverse. Verify beam sensors and limit switches respond correctly and adjust as needed.
Tip: If the door doesn’t reverse, recheck wiring around the safety circuit. - 9
Document and finish
Record model numbers, wiring layout, and reset codes. Store the manual and kit documentation for future maintenance.
Tip: Keep a copy of this guide with your garage tools for next time.
