How to Install and Maintain an Insulated Roll Up Door
Learn how to select, install, and maintain an insulated roll up door for your garage. This guide covers insulation types, safety, and step-by-step installation tips for homeowners.
With an insulated roll up door, you will improve energy efficiency and reduce drafts in a attached garage. This guide shows how to assess needs, select a door, and safely install or upgrade insulation. You’ll learn about insulation ratings, weather sealing, and maintenance steps to keep the door operating smoothly.
What is an insulated roll up door?
An insulated roll up door combines a sturdy exterior with a foam-filled core to minimize heat transfer between your garage and the outside environment. These doors are typically available in steel or aluminum panels and roll up into a compact housing above the doorway. The insulation not only helps keep temperatures stable but also reduces noise and improves moisture resistance. Insulated doors come in various thicknesses and panel configurations, so you can choose a balance between strength, weight, and energy performance. When you see a door advertised as insulated, expect foam or similar material sandwiched between exterior panels to slow heat exchange and limit air leaks around the edges. For homeowners, this often translates to more comfortable garages and lower heating or cooling needs, especially if the space is used as a workshop or a workspace.
Why insulation matters for energy efficiency in garages
A well-insulated garage reduces heat loss during cold months and minimizes heat gain when it’s hot outside. The insulation helps maintain a more consistent temperature inside, which can reduce the workload on your home’s heating and cooling system and improve comfort for any projects you run in the garage. Beyond temperature control, insulation can dampen outdoor noise and reduce drafts that creep under the door edges. According to GarageDoorAdjust, insulated roll up doors can contribute to noticeable comfort improvements in attached garages. While not a substitute for a full home retrofit, a well-insulated door is a practical upgrade that addresses common energy inefficiencies without major remodeling.
How insulation types affect performance
Insulation in roll up doors is usually a foam core, with polystyrene or polyurethane being common choices. The core affects both thermal resistance and door weight. A thicker or higher-quality foam typically yields better thermal performance and greater structural rigidity, which also influences how smoothly the door operates over time. The door’s exterior material (steel or aluminum) and the finish will affect durability and maintenance needs. In practice, polyurethane cores often provide superior insulation per inch of thickness and can improve door balance, making the door easier to lift and lower. When selecting a door, consider climate, the door’s exposed hours, and how often you use the space. A door with robust weather seals around the edges will maximize energy savings and protect against wind-driven moisture.
Features to look for when buying
Key features that impact performance include: a solid insulation core, weatherstripping along the sides and bottom, and a tight seal around the door’s perimeter. Look for doors with reinforced tracks and corrosion-resistant hardware to ensure longevity. A good insulated roll up door should balance well, move smoothly on its tracks, and include safety features such as edge and photoelectric sensors if an electric opener is used. Some models offer additional dampening or lazy-wind spring systems to reduce noise and effort. For DIY enthusiasts, choosing a door with clear installation instructions and accessible hardware can simplify assembly and adjustment. Always verify compatibility with your opening height and width, as well as headroom for the door’s mechanism.
Preparing your space and measuring correctly
Before buying or installing, measure the rough opening for width and height, and check headroom and side room. Draft a plan that accounts for tracks, brackets, and the space needed for any insulation panels to sit without interference. If you are upgrading from a non-insulated model, evaluate whether the existing frame can support the new door’s weight and mounting requirements. Clear the area of tools, debris, and any obstacles, and ensure power to any existing opener is turned off during installation. Accurate measurements minimize returns and misfit parts, and help you select the correct door height and track length. If you’re working in a climate with heavy snowfall or strong winds, verify your door’s design will withstand local conditions and still seal properly.
Step-by-step overview before you start installation
Create a detailed plan that includes: opening dimensions, track layout, weather seals, and the required fasteners. Gather all tools and the door kit before starting to avoid interruptions. If you are replacing a door, document the current setup so you can replicate or adapt it on the new unit. Review the manufacturer's installation manual for torque specs and compatibility notes. Finally, set up a safe temporary blocking arrangement to prevent door movement while you assemble and align components. A well-planned approach reduces on-site surprises and ensures a smoother installation.
Common installation scenarios: new build vs upgrade
For new builds, factory-fitted openings can simplify installation because openings are sized to exact door dimensions. Upgrading an existing door may involve modifying or replacing tracks, brackets, and safety sensors. In either case, ensure the framing is square and the opening remains plumb during installation. If you uncover hidden damage to framing or old hardware, address it before proceeding. An upgrade may also involve replacing weather seals, adjusting tracks for proper alignment, and testing the balance system to ensure smooth operation. When in doubt about structural integrity, consult a professional to avoid unsafe outcomes.
Maintenance routines and safety checks
Routine maintenance helps your insulated roll up door perform reliably over time. Lubricate moving parts with a silicone-based product suitable for metal surfaces, and inspect weather seals for cracks or gaps that could allow drafts. Check the tracks for obstructions and ensure brackets remain tight. Periodically test the door’s balance and safety features if you have an automatic opener, including auto-reverse and photo-eye sensors. Clean the surface to prevent corrosion and keep lubricants away from sensors. Regular inspections catch wear early, reducing the risk of sudden failures and costly repairs.
Troubleshooting common issues
If the door sticks or binds, inspect track alignment and the weather seals for warping or debris. If the door is slow to rise or fall, verify the balance and spring tension with the manufacturer’s guidelines, and consider professional assistance for spring work. Uneven gaps at the bottom edge suggest misalignment or warped tracks that require adjustment. If the opener fails to respond, check the power supply, remote batteries, and sensor alignment. Finally, if insulation seems compressed or indented, confirm that the panels are seated correctly and that fasteners are tightened to spec. Addressing issues promptly ensures the door retains its insulation performance and safe operation.
Tools & Materials
- Measuring tape(Accurate width, height, and headroom measurements)
- Protective eyewear(Safety first during installation)
- Cordless drill with bits(Drive screws for tracks and hardware)
- Level(Keep tracks perfectly plumb)
- Pliers and adjustable wrench(Tighten brackets and hardware)
- Rubber mallet(Gentle nudges to seat components)
- Silicone-based lubricant(Lubricate moving parts (not bearings))
- Weather seal kit(Bottom and side seals for energy efficiency)
- Wire cutters and safety gloves(Handling springs or cables safely)
- Ladder or scaffold(Access high sections of the opening)
- Torque wrench (optional)(Precise torque on fasteners if specified)

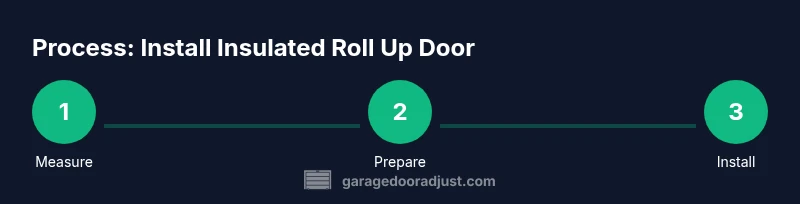

Steps
Estimated time: Estimated total time: 6-10 hours
- 1
Measure opening and plan fit
Measure width, height, and headroom of the rough opening. Confirm door height and track length match the opening and that there is adequate space to accommodate insulation panels. Create a simple layout diagram to guide the installation.
Tip: Take multiple measurements and document them with photos to avoid misfits. - 2
Prepare workspace and safety setup
Clear the garage area, disconnect power to any existing opener, and lay out the tools. Protect floors with a drop cloth and ensure lighting is adequate. Have a helper ready to assist with heavy panels.
Tip: Wear eye protection and gloves; springs can cause injury if mishandled. - 3
Remove existing door components
If upgrading from a non-insulated unit, carefully detach old tracks, brackets, and panels. Document mounting locations as you remove parts to ease reassembly. Keep screws organized by type and length.
Tip: Take photos during removal to reference during reassembly. - 4
Install new track system
Position and fasten the new tracks level and plumb. Use shims as needed to eliminate any misalignment, then secure with the appropriate fasteners. Recheck track alignment after mounting the first panels.
Tip: A square level and a second pair of hands help ensure accuracy. - 5
Hang insulated door panels on tracks
Lift and place insulated panels onto the tracks, ensuring each panel seats fully and aligns with adjacent sections. Secure panels according to the manufacturer’s instructions. Verify smooth panel movement as you go.
Tip: Work from bottom to top to maintain balance and reduce risk of drop injuries. - 6
Install springs and balance system
Install the balance system per the door’s manual and ensure correct spring tension. This step is hazardous; if unsure, consult a professional. Double-check all fasteners for tightness and symmetry.
Tip: If you sense unusual resistance or noise, stop and recheck alignment before continuing. - 7
Attach bottom bar and weather seals
Fit the bottom bar and install weather seals along the sides and bottom to maximize insulation. Ensure seals compress with the door in the closed position. Trim seals to size if needed for a tight fit.
Tip: Keep seals clean and free of debris for best performance. - 8
Install opener (optional) and safety features
Mount the opener if using one and connect sensors. Program remotes and test auto-reverse and safety eyes. Verify all wiring is secure and away from pinch points.
Tip: Follow the manufacturer’s instructions precisely to ensure safety features function correctly. - 9
Test, adjust, and finalize
Run the door through multiple cycles, checking balance, track alignment, and seal integrity. Fine-tune spring tension and limit switches if necessary, and confirm smooth stops. Clean up and store tools.
Tip: Record any adjustments for future maintenance and scheduling.
Got Questions?
Do I need to hire a professional to install an insulated roll up door?
Installing an insulated roll up door can be challenging, especially when springs and balance systems are involved. If you’re not confident in carpentry, metalwork, or handling high-tension components, hiring a licensed installer is the safest route. Always follow local codes and manufacturer instructions.
Installing such doors can be risky; if unsure, hire a professional to ensure safety and proper operation.
What is the difference between insulated and non-insulated doors?
Insulated doors use a foam core to slow heat transfer, improve energy efficiency, and reduce noise. Non-insulated doors lack this core, making them lighter and usually cheaper but less effective at sealing out cold or heat.
Insulated doors have foam cores that improve energy efficiency and comfort; non-insulated doors don’t provide the same sealing.
How long does installation typically take?
Install times vary by opening size and chosen door type, but allot several hours to complete a proper installation and alignment. If you’re upgrading from an older system, expect additional time for removal and reattachment of hardware.
Most installations take several hours depending on opening size and kit complexity.
Can an insulated roll up door fit a standard single-car garage?
Yes, insulated roll up doors are available in standard and custom sizes to fit typical single-car and double-car openings. Always verify your opening dimensions and headroom before purchasing.
Most standard garages can be accommodated with the right door size and track setup.
What maintenance does an insulated door require?
Regularly inspect weather seals, tracks, and hardware for wear. Lubricate moving parts as recommended, and test safety features if using an opener. Address misalignment or damaged insulation promptly to maintain performance.
Keep seals intact, lubricate moving parts, and test safety features regularly.
Are there safety concerns I should be aware of?
Garage doors can be dangerous due to moving parts and high-tension components. Ensure power is disconnected during installation and follow all manufacturer safety guidelines. If anything feels off, stop and call a professional.
Yes—take safety seriously. If unsure, don’t proceed and seek professional help.
Where can I learn more about energy savings with insulated doors?
Energy savings depend on climate and usage. An insulated door reduces heat exchange and drafts, contributing to a more comfortable space and potentially lower energy bills when used with proper seals.
Insulated doors help reduce heat loss and drafts, benefiting energy efficiency.
Watch Video
Quick Summary
- Choose the right insulation type for climate and use.
- Plan, measure, and organize before starting the install.
- Prioritize safety and consider professional help for springs.
- Regularly inspect seals and tracks for peak efficiency.
