Install and Insulate a 10x10 Garage Door
Step-by-step guide for homeowners to install and insulate a 10x10 garage door, boosting energy efficiency and door performance. Tools, steps, safety, and maintenance tips from GarageDoorAdjust.
You will install and insulate a 10x10 garage door, upgrading energy efficiency and comfort. You’ll need the door kit, basic power tools, safety gear, and a helper for heavy lifting. Follow the step-by-step process to ensure precise measurements, correct mounting, and safe operation of your insulated door system. This quick guide helps homeowners avoid common mistakes and stay within a reasonable time frame.

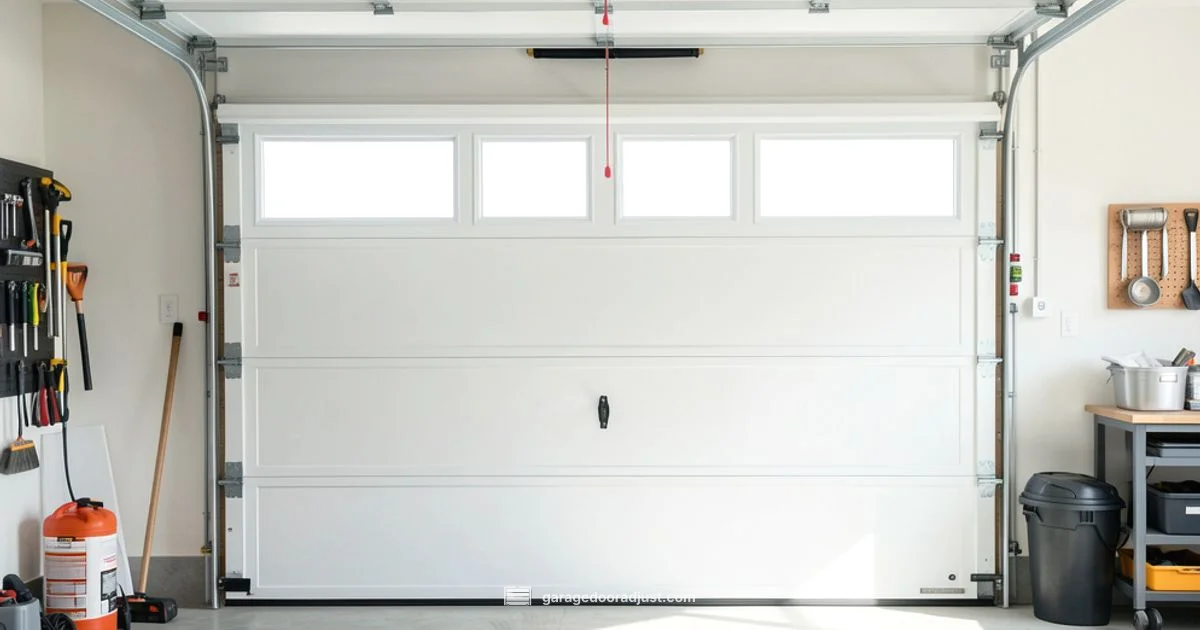

Why a 10x10 insulated garage door is a smart upgrade
A 10x10 insulated garage door is more than a large exterior panel. By using insulated core materials and tighter seals, it helps regulate temperature between the garage and living spaces, reduces energy losses, and lowers noise from external sources and the door itself. For homeowners, this translates into more comfortable conditions in attached garages, lower heating and cooling costs, and a more durable door assembly that resists warping in extreme weather. According to GarageDoorAdjust, opting for insulation improves overall performance and comfort, especially in climates with seasonal temperature swings. A well-insulated door also supports better sound control and longer door life because the panels shift less with wind and movement. When you plan a 10x10 upgrade, think about the overall system: door panels, tracks, springs, weather sealing, and the opener’s compatibility. A cohesive approach yields the best returns on investment and a more reliable operating experience.
Insulation options for 10x10 doors
Insulated doors use core materials like foam panels or composite cores sandwiched between exterior skins. Foam cores typically provide a balance of rigidity and thermal resistance, while composite cores may offer enhanced moisture resistance. The choice often depends on climate, budget, and desired noise reduction. Look for doors with continuous seals along the sides and bottom to minimize drafts. Consider how the door’s skin material—steel, aluminum, or composite—affects durability and maintenance. For most homeowners, polyurethane foam cores deliver strong rigidity with good energy performance, though installation should be done by following the manufacturer’s guidelines. Regardless of core type, a consistent weather seal along the header and jambs dramatically improves overall insulation performance and reduces heat transfer during hot summers and cold winters.
Sizing, compatibility, and choosing the right model
A 10x10 door is a common size for many two-car garages, but compatibility depends on existing tracks, springs, and framing. Measure the width and height of the rough opening, check for straight and plumb walls, and verify headroom for door movement and torsion spring clearance where applicable. If you’re replacing an old door, document the current hardware positions and confirm new components line up with existing tracks to avoid misalignment. When selecting a model, ensure the insulation layer is protected by durable skins and that the panel thickness won’t impede track travel. Finally, confirm compatibility with your existing opener or budget for an upgraded unit that works under the same mounting footprint.
Planning the installation: tools, prep, and workspace
Preparation is the difference between a smooth install and a frustrating project. Clear the workspace, protect the floor from scratches, and set up adequate lighting. Review all instructions from the door manufacturer and lay out every component in labeled sections. Safety begins with disconnecting power to the opener and using gloves, safety glasses, and a sturdy ladder. Organize fasteners, brackets, and weather seals in order of installation. Establish a realistic timeline that accounts for door weight, spring tension (if you're replacing springs), and potential adjustments after the first test cycle. Proper preparation reduces rework and ensures a clean, efficient install.

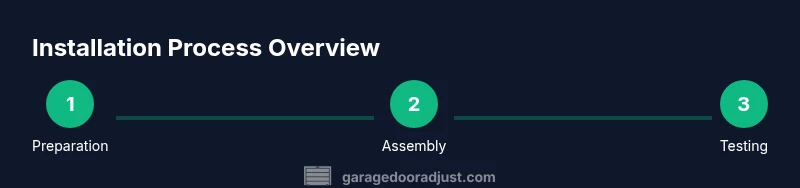

Step-by-step overview: what to expect during installation
This section provides a high-level plan for installing a 10x10 insulated door. Expect to disconnect power, remove or cap the old door hardware, align tracks, and fit insulated panels into the door frame. The process often requires adjusting spring balance, lubricating moving parts, and inspecting seals. After assembly, test the door on manual and motorized modes, adjust track alignment, and verify safety features such as auto-reverse. The goal is a smooth glide, quiet operation, and a tight seal against weather. Refer to the detailed steps below for exact actions and safety cautions.
Common mistakes to avoid during installation
Common missteps include skipping a final level check on tracks, mixing up left/right panels, and failing to test the balance with the door disconnected from the opener. Inadequate weatherstripping can cause drafts and moisture intrusion, while improper spring tension can lead to dangerous door behavior. Avoid forcing panels or bent tracks; always align components before tightening fasteners. If you encounter a misfit, step back and recheck measurements, and don’t hesitate to consult the manufacturer’s guidelines or a professional if you’re unsure about spring systems or heavy door weight.
Maintenance and long-term care after installation
Maintenance preserves insulation performance and smooth operation. Lubricate moving parts per the manufacturer’s recommendations, inspect weather seals for wear, and replace damaged gaskets promptly. Regularly test the door’s balance and safety features, especially if the door is used frequently or experiences temperature swings. Clean the exterior panels with mild detergent and avoid abrasive cleaners that could damage the skin. Schedule seasonal checks for tension, alignment, and lubrication to extend the life of your insulated door and keep energy efficiency high.
Energy savings and climate considerations
Insulated doors reduce heat exchange with the outside environment, which can lower energy bills in heated or cooled spaces. In climates with large temperature differences, insulation becomes more noticeable in comfort and habitability, especially when the garage adjoins living spaces or a workshop. For best results, pair insulation with tight weather stripping around the jambs and door edges. Weather sealing also helps prevent moisture intrusion, which can degrade insulation performance over time. The cumulative effect of insulation, weather sealing, and proper maintenance contributes to a quieter, more controlled garage environment.
Tools & Materials
- Measuring tape (min. 25 ft)(Accurate opening dimensions and clearances)
- Cordless drill/impact driver(Fastens tracks, brackets, and panels)
- Socket set and wrenches(Torque and secure hardware)
- Level (20 in or longer)(Preserve square angles for tracks)
- Ladder or scaffold(Safe access to headers and tracks)
- Pliers and wire cutters(Spring and cable adjustments)
- Utility knife(Trim weather seals or panels)
- Caulking gun and weather seal(Seal gaps around the frame)
- PVC foam insulation kit (foam boards or sprayed foam)(Core insulation for panels)
- Safety gear (gloves, safety glasses)(Protect hands and eyes)
- Dust mask or respirator(Ventilation when working with spray foam)
- Lubricant spray for rollers(Keep moving parts smooth)
- Shop towels and cleaner(Clean surfaces before assembly)
Steps
Estimated time: 2-6 hours
- 1
Disconnect power and secure area
Begin by unplugging the garage door opener and placing a temporary restraint on the door to prevent accidental movement. Verify no power is reaching the opener to avoid electric shock. This initial safety step protects you during heavy lifting and alignment tasks.
Tip: Double-check the outlet and ensure no remote controls can actuate the door during work. - 2
Remove old components or stabilize the frame
If you’re replacing panels, remove the existing door skin sections carefully. For a refurbishment, inspect tracks, brackets, and springs for wear, bending, or corrosion. Stabilize the frame so it remains square and free of loose fasteners before continuing.
Tip: Label or photograph current positions to aid reassembly. - 3
Measure and verify opening dimensions
Take precise measurements of width, height, and headroom to confirm the new door will fit. Check for any protruding shts or obstructions that could hinder track mounting. Document measurements for reference during installation.
Tip: Always measure twice and cut once—precision matters for smooth operation. - 4
Install vertical tracks and header brackets
Position and fasten vertical tracks plumb to the jambs, then attach header brackets to support the top track. Use a level to ensure tracks are perfectly vertical. Tighten bolts securely but avoid over-tightening which could cause misalignment.
Tip: Check alignment from multiple angles to ensure true plumb lines. - 5
Attach horizontal tracks and install rollers
Mount the horizontal tracks to the door sections and attach rollers to the hinge points. Ensure each roller moves freely within its track and that the door sections align across the entire height. This setup enables smooth opening and closing.
Tip: Test roller movement manually before lifting weighty panels. - 6
Install insulation core and panel skins
Insert foam core insulation into the door panels according to the manufacturer’s instructions, then secure outer skins. Ensure seams are tight and any fasteners are flush with the surface. This step defines thermal performance and structural rigidity.
Tip: Carefully trim excess foam or skin material to avoid gaps. - 7
Reassemble and hang door on tracks
With help, lift door sections into the tracks and align with the header. Attach to rollers and ensure the door sits evenly across the opening. Reconnect any safety scissor or balance components per the manufacturer’s specs.
Tip: Have a second person assist to prevent pinching or dropping panels. - 8
Seal, balance, and test the system
Apply weather seals to the sides and bottom, then balance the door by adjusting springs or balance cables as needed. Reconnect the opener and run a controlled test cycle with safety reverse checks. Confirm there are no unusual noises or binding.
Tip: Document tension settings for future maintenance. - 9
Final safety checks and cleanup
Inspect all fasteners, lubricate moving parts, and confirm that all safety features function correctly. Clean the workspace and dispose of packaging responsibly. Schedule a follow-up check after a few uses to catch any settling issues.
Tip: Keep a maintenance log and set reminders for seasonal checks.
Got Questions?
Do I need to replace the opener when installing a new insulated door?
Not always. If your existing opener is compatible with the new door’s weight and track system, you can reuse it. If the newer door is heavier or has different tracking requirements, upgrading the opener may be safer and more reliable.
You may not need a new opener if your current one fits and runs smoothly, but upgrading could improve safety and efficiency.
Is DIY insulation feasible for a first-timer?
A motivated homeowner can retrofit insulation with careful planning, precise measurements, and strict adherence to safety. The most challenging parts involve springs and tracks, so consider professional help for those steps if unsure.
It can be doable, but pay attention to spring systems and track alignment; don’t push beyond your comfort level.
What maintenance is required after installation?
Inspect weather seals twice a year, lubricate moving parts, and perform a balance check every few months. Keep the tracks clean and verify the opener safety features operate correctly during cycles.
Regular checks keep your door efficient and safe over time.
How much energy can insulation save in a typical attached garage?
Insulation reduces heat transfer and drafts, which can lower energy use in heated or cooled spaces. Actual savings depend on climate, door usage, and the door’s insulation quality.
Savings vary, but insulation generally improves comfort and reduces drafts.
Is a 10x10 size considered standard for most homes?
Yes, a 10x10 door is a common size for many two-car garages and fits a wide range of openings. Always verify your opening dimensions before purchase.
Many homes use 10x10 doors, but check your measurements first.
What safety precautions should I take during installation?
Wear protective gear, disconnect power to the opener, and never work under a door supported only by a single spring. Follow manufacturer instructions and keep children and pets away from the workspace.
Safety is critical; always follow instructions and use protective gear.
Watch Video
Quick Summary
- Choose insulation that matches climate needs and budget.
- Accurate opening measurements prevent misfit and binding.
- Proper weather sealing dramatically improves energy performance.
- Balance and safety checks are essential before every test run.
- Document steps and maintain a routine maintenance plan.
