How to Install an Entry Door in Your Garage: Step-by-Step
Learn how to install an entry door in your garage with a complete, homeowner-friendly guide. Plan, measure, fit, seal, and finish for a secure, energy-efficient garage entry—backed by GarageDoorAdjust expertise in 2026.
Goal: properly install an entry door in a garage, ensuring a secure frame, proper weather sealing, and code-compliant hinges. This guide covers measuring and preparing the rough opening, choosing materials, step-by-step installation, and finishing touches. You’ll need basic carpentry tools, a drill, a level, shims, fasteners, and weatherproofing supplies. Follow the steps for a durable, energy-efficient door that keeps out drafts.

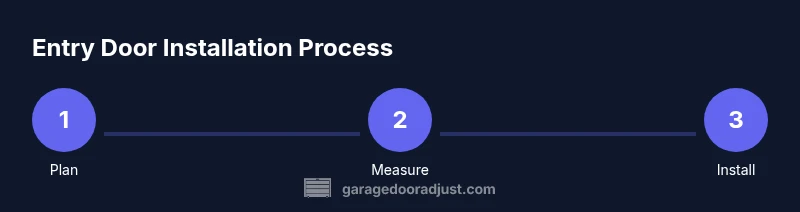

How to install entry door in garage: Planning and compliance
Planning the install starts with a precise assessment of the existing opening, the door size you’ve chosen, and the local building codes. According to GarageDoorAdjust, starting with a clear plan that accounts for rough opening dimensions, framing, weatherproofing, and hardware reduces rework and ensures a safer, more reliable result. The GarageDoorAdjust Team recommends verifying whether a permit is required in your area and reviewing the manufacturer’s installation instructions. In 2026, code guidance emphasizes energy efficiency and secure framing, so plan for proper sealant, insulation, and fasteners. This stage is the foundation of a durable installation and helps prevent future headaches during sealing, trim, and latch adjustments. By documenting measurements and decisions now, you’ll save time and avoid costly corrections later.
- Plan for structural integrity: ensure the rough opening is square and plumb.
- Check for rot or damage in framing and address it before proceeding.
- Review the door’s prehung status and hinge arrangement to minimize later adjustments.
- Confirm weatherproofing needs (caulk, flashing, weatherstripping) before installation.
- Keep a small project log with measurements and decisions to reference during steps.
Tip: Keep the workspace clean and dry to avoid misreading measurements due to debris or moisture. GarageDoorAdjust notes that meticulous planning reduces rework and promotes safe, precise work. If you’re unsure about local permit requirements, contact your city building department or a licensed contractor. This guidance aligns with GarageDoorAdjust Analysis, 2026, which emphasizes planning and compliant installation for energy efficiency and security.
note”:null},
toolsMaterialsPerformers
Tools & Materials
- Measuring tape(prefer 25–30 ft for framing checks)
- Pencil and carpenter’s square(for marking and ensuring square corners)
- Hammer and pry bar(remove trim and fixtures without damage)
- Utility knife(trim shims, cut weatherstripping as needed)
- Circular saw or handsaw(trim jambs if needed for a snug fit)
- Drill with assorted bits and driver(drive screws and bore pilot holes as needed)
- Level (3–4 ft recommended)(check vertical and horizontal alignment)
- Shims (plastic/wood)(for door alignment and plumb)
- Caulk and weatherstripping(seal joints and gaps around door frame)
- Door hardware kit (hinges, latch, screws)(match the door model and hinge spacing)
- Safety gear (gloves, eye protection)(protective gear for all cutting and lifting steps)
- Plywood scraps or wedges(for improvised shimming and support)
Steps
Estimated time: 2-4 hours
- 1
Assess the opening and plan
Inspect the rough opening for plumb, level, and square. Document width and height at multiple points because openings can vary. Compare opening dimensions to the door frame to confirm a proper fit. If you see rot or significant gaps, address them before proceeding.
Tip: Take photos of the opening from multiple angles to guide trimming and shimming later. - 2
Remove the old door and trim
Carefully remove the existing door and any trim without damaging the surrounding wall. Clean the opening of debris, nails, and loose material. If the jamb exists, assess whether it can be reused or must be replaced for a solid install.
Tip: Use a pry bar gently to lift trim without splitting wood; work gradually around the frame. - 3
Prepare the rough opening
If needed, trim jambs to achieve a uniform sightline and ensure the opening remains square. Check that the header is solid and not bowing. Remove obstructions in the threshold or sill area and clear debris.
Tip: Use a level across the top and sides to verify true squareness before proceeding. - 4
Dry-fit the new door
Place the door slab and frame into the opening without fastening. Look for consistent gaps at the sides and top, then adjust with shims to achieve a level, square fit. Ensure the door can swing freely without rubbing the floor or frame.
Tip: Only snug-fit initially—don’t drive fasteners yet; you want to verify alignment first. - 5
Mark hinge locations on the jamb
With the door in place, mark hinge locations on the frame so you can pre-drill pilot holes. Verify hinge placement aligns with the hinge leaves on the door. This step ensures smooth operation after installation.
Tip: Double-check top hinge alignment with the door’s top edge to avoid binding. - 6
Attach hinges to the door
Secure hinges to the door according to manufacturer instructions. Use the correct screws and avoid overtightening. Attach the hinge pins loosely enough to permit minor adjustments during hanging.
Tip: Keep hinge screws short and white-laded to prevent binding in the bore. - 7
Hang the door and shim
With help if needed, place the door into the opening and secure it with temporary screws. Use shims behind hinges and at the latch side to achieve plumb and level. Recheck swing clearance and gap uniformity.
Tip: Iterate a few times to guarantee the door remains square through opening and closing cycles. - 8
Seal, finish, and test
Apply weatherstripping around the perimeter, seal joints with caulk, and install exterior trim or flashing as required. Re-check operation, latch alignment, and weather seal. Test for drafts and adjust any gaps.
Tip: Render any surface finishing after confirming the door sits squarely and operates smoothly.
Got Questions?
Do I need a permit to install a new garage entry door?
Permit requirements vary by location. In many cases, a homeowner can perform non-structural door installations, but major framing changes or structural work may require a permit. Check local building codes or consult a licensed contractor before starting.
Permit requirements vary by area; check local codes and consult a pro if unsure.
Can I install the door myself, or should I hire a pro?
If you have basic carpentry skills, the right tools, and time, you can install a standard door yourself. For complex openings, major frame work, or security concerns, hire a professional.
If you’re comfortable with basic carpentry, you can do it yourself; otherwise consider a pro.
What are common mistakes during garage door installation?
Common mistakes include incorrect measurements, misaligned hinges, poor weatherproofing, and skipping safety checks. These can cause binding, drafts, or security issues.
Common mistakes are mismeasuring, misalignment, and skipping weatherproofing.
What weatherproofing materials work best for garage doors?
High-quality weatherstripping, such as foam or rubber seals, along with silicone or acrylic caulk for joints, provides durable protection against drafts and moisture.
Quality weatherstripping and caulk help seal gaps and keep moisture out.
How long does installation typically take for a DIY project?
Most DIY installations take 2-4 hours, depending on opening condition, door type, and how much framing work is needed. Allocate extra time for finishing, weatherproofing, and adjustments.
Most homeowners finish in a few hours, depending on the opening and door style.
Watch Video
Quick Summary
- Plan thoroughly before starting to avoid rework
- Measure twice, cut once for a perfect fit
- Secure hinges and align the door accurately
- Weatherstrip and seal to prevent drafts
- Test operation and adjust for a smooth opening
