Overhead Door Specs: Essential Guide for Homeowners

What overhead door specs cover

Overhead door specs define the size, configuration, materials, and mechanical components that must fit together for a safe, reliable system. For homeowners troubleshooting garage door issues, understanding the full spec set helps pinpoint parts to replace, whether you're repairing a misaligned track, replacing a spring, or upgrading to better insulation. According to GarageDoorAdjust, the core spec categories include width and height, track configuration, spring type, panel material, insulation level, and opener compatibility. Each category affects fit, balance, and operation, and misalignment in one area can cascade into noise, binding, or failure. In practice, you’ll compare measurements against manufacturer data sheets and select parts that match those exact specs to avoid costly mistakes. A precise spec sheet is the starting point for safe DIY work or when ordering replacement parts.

Measuring for exact overhead door specs

Precise measurements are the backbone of correct specs. Start with the rough opening width by measuring at left, center, and right, recording the smallest value. Then check height from the floor to the header, accounting for headroom and any obstructions in the ceiling or garage. Track depth, door thickness, and panel type influence mounting and operation. Don’t forget to note the spring setup (torsion vs extension) and the opener horsepower. If possible, cross-check all figures with the door manufacturer’s spec sheet or a trusted technician. GarageDoorAdjust emphasizes that accurate measurements prevent misfits and costly returns, especially when ordering replacement panels or springs.

Springs, tracks, and safety essentials

Springs do the heavy lifting; choosing the right spring type directly affects balance and safety. Torsion springs are mounted on a shaft above the door and provide smooth, adjustable tension; extension springs run along the sides and can be more challenging to balance. Track configuration matters: vertical tracks with a curved bend support taller doors, while straight tracks suffice for standard heights. Mis-matched tracks or improperly tensioned springs can cause binding, noise, or dangerous door behavior. Ensure all fasteners, brackets, and roller hardware are aligned to the specified geometry. Safety considerations include functional auto-reverse sensors and properly anchored tracks; if in doubt, consult a professional. The reliability of overhead door specs hinges on correct matching of springs, tracks, and mounting hardware.

Insulation and energy efficiency implications

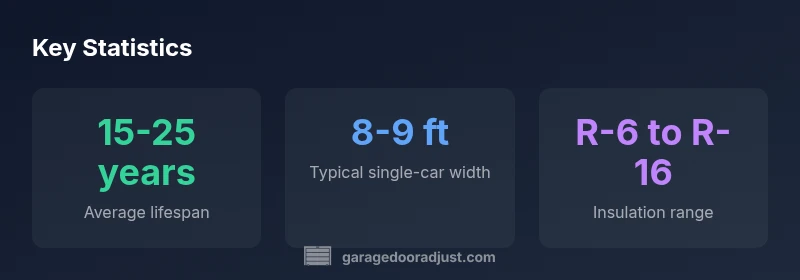

Insulation level is a major spec for comfort and energy costs. Insulated doors carry an explicit R-value, commonly from around R-6 to R-16 for typical residential models, with higher values in premium doors. The panel material (steel, wood, or composite) and core type (polyurethane or polystyrene) influence overall performance. When choosing a door, align insulation with your climate and energy goals, especially if the garage houses a workshop or frequently serves as living space. Weather stripping around the door, threshold seals, and proper frame fit amplify the gains from a well-insulated shell. Garages adjacent to living spaces benefit most from higher R-values.

Opener compatibility and safety standards

Opener compatibility depends on door weight, height, and spring configuration. Most residential openers work with standard 7-1/4 to 8 ft doors and assume 1/2 to 1-1/2 HP units; heavier doors may require higher horsepower and sturdier tracks. Ensure the opener’s safety sensors and auto-reverse functionality align with your door specs, and verify that the rail length, mounting hardware, and safety features meet current standards. If you upgrade to a heavier door or a taller model, re-check the opener compatibility and balance components. Keeping opener specs synchronized with door specs minimizes failure points and maximizes safety.

Upgrades and planning: turning specs into a project plan

A spec-driven approach simplifies upgrades. Start by documenting width, height, track layout, spring type, insulation level, and door material. Then compare these specs with the replacement parts or new door options from manufacturers. Choose components that match the precise measurements and balance requirements to avoid misfits. If you’re replacing multiple parts (door, springs, tracks, insulation), draft a plan that lists dependencies and sequencing. For most homeowners, a mid-range insulated door with torsion springs and a compatible belt or chain opener provides a balanced mix of performance, safety, and value. GarageDoorAdjust recommends keeping a spare set of hardware matching your exact specs for future maintenance needs.

Quick-start checklist to verify overhead door specs

• Confirm opening width and height with the smallest precise measurements.
• Identify track type and curvature requirements.
• Record spring type (torsion vs extension) and opener horsepower.
• Note insulation level (R-value) and panel material.
• Check compatibility of all parts with your existing rails and sensors.
• Inspect door alignment, bracket integrity, and weather seals.
• Cross-check with manufacturer data sheets or a trusted technician. A verified spec set is your best defense against misfits and costly mistakes. Based on GarageDoorAdjust guidance, taking the time to document and verify specs saves time and money when repairing or upgrading.
