Garage Door Opener Genie Installation: A Complete How-To
Learn to install a Genie garage door opener with a clear, safety-first approach. This guide covers planning, hardware, wiring, rail mounting, programming remotes, and testing for a secure, efficient setup.
You will install a Genie garage door opener with a safety-first approach, covering rail mounting, motor carriage, wiring, sensor alignment, and remote programming. This guide provides a complete step-by-step process and safety precautions to help you complete the installation confidently and correctly.
Genie Opener Installation Overview
Installing a Genie garage door opener is a practical upgrade that adds convenience and security to daily life. The process involves selecting the right model, preparing a safe workspace, and following manufacturer instructions for mounting, wiring, and programming. This section explains how to assess compatibility with your door and available ceiling space, how to plan the layout, and what hardware typically ships with a Genie kit. By understanding the big picture, you’ll avoid common missteps and set yourself up for a smooth install. The GarageDoorAdjust team emphasizes careful planning, labeling components, and keeping a clean, well-lit workspace to reduce errors during the project.
Genie Model Selection and Compatibility
Choosing the right Genie opener depends on door weight, height, and existing track arrangement. Review the door’s open/close forces, the number of cycles per day, and whether the current rail allows for a new trolley and rail assembly. Genie offers several models with different horsepower ratings and rail lengths; ensure the chosen unit includes a compatible rail kit for your ceiling clearance. Consider features like battery backup, Wi-Fi connectivity, and integrated safety sensors. Always confirm compatibility with your door size and existing hardware before purchasing.
Precautions and Planning Before You Start
Safety is non-negotiable when installing heavy equipment overhead. Disconnect power to the garage outlet and ensure the vehicle is away from the door. Clear the area beneath and around the door to prevent trips or accidental contact with moving parts. Gather all tools in one place, and review the installation manual to understand the sequence. Create a simple checklist for the steps you’ll complete and mark off each task as you finish to stay organized. The GarageDoorAdjust team recommends consulting local regulations or a professional if you’re uncertain about electrical connections or structural mounting.
Rail Assembly, Bracket Mounting, and Ceiling Support
The rail assembly is the backbone of the system, so precise alignment matters. Start by mounting the header bracket to the ceiling, then attach the rail sections following the kit’s push-fit or screw-down method. Use a level to ensure the rail is perfectly straight and square to the door’s vertical plane. Secure all brackets with the recommended fasteners and avoid overtightening, which can deform components. Close watch for gaps or misaligned rollers, as these issues cause binding or noisy operation. The Genie rail system should glide smoothly along the track once correctly installed.
Motor Carrier, Belt, and Sprocket Alignment
Attach the motor carrier to the rail as specified by Genie instructions, ensuring the carriage tracks parallel to the door. Install the belt or chain drive components, checking for uniform tension. Misalignment here can wear belts, strain gears, or cause the door to stop unexpectedly. Before connecting the door to the carriage, verify that all fasteners are snug and that the trolley engages the rail without binding. Take a moment to rotate the wheels manually to confirm the system moves freely across its full travel range.
Electrical Wiring, Safety Sensors, and Battery Backup
Power is required for the opener, but it must be wired safely and code-compliant. Route the power cord or hard-wire in accordance with local codes, avoiding shared or overloaded circuits. Install safety sensors on each side of the door near the floor, aligned at eye level with the door track. If your Genie model includes battery backup, install the battery pack in the designated compartment and connect it correctly. Finally, secure all wiring with clips or ties so nothing dangles or interferes with moving parts.
Programming Remotes, Keypad, and Wall Buttons
Program the remote controls and wall control according to the Genie instruction sheet. Typically, you’ll pair the remotes by pressing a learn button on the motor unit, then pressing the remote’s button to confirm the pairing. If your model supports a keypad or smart features, follow the same learning sequence for those devices. Label each remote with its intended door or location to avoid confusion, and test all controls at multiple distances to confirm reliable operation.
Testing, Final Adjustments, and Maintenance
With the system wired and programmed, perform a full test: door opening and closing, auto-reverse on contact with an obstacle, and all safety sensor functions. Listen for unusual noises, binding, or jerky movement, and adjust tension or alignment as needed. Make sure the door stays in balance and does not drift when operated by hand. Finally, document the model number and maintenance schedule, and create a quick maintenance checklist for future reference. Routine lubrications, sensor cleaning, and visual inspections extend the life of your Genie opener.
Tools & Materials
- Power drill with assorted bits(Phillips and Torx bits; #2 Phillips commonly used)
- Measuring tape(At least 10 feet for ceiling layout)
- Level(2-foot or longer for rail alignment)
- Wrench set (adjustable)(For brackets and mounting hardware)
- Screwdrivers (Phillips and flat)(Variety of sizes)
- Pliers and wire stripper(For basic wiring and sensor connections)
- Ladder (6-8 ft)(Stable, tall enough to reach ceiling mounting)
- Safety glasses and gloves(Personal protective equipment)
- Stud finder(Optional for ceiling anchors)
- Genie opener hardware kit including rail, motor, trolley(Ensure kit is compatible with your model)
- Electrical tester or multimeter(Check outlet functionality if wiring is modified)
- Voltage-rated extension cord(If outlet is hard to reach)

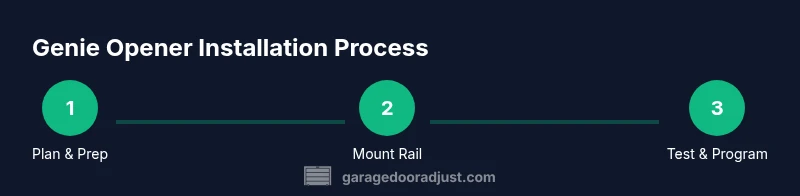

Steps
Estimated time: 60-120 minutes
- 1
Prepare workspace and verify safety
Begin by unplugging the power outlet and clearing the garage of obstacles. Inspect the ceiling space for clearance and secure the ladder on a stable surface. Confirm you have all parts listed in the Genie install manual before proceeding.
Tip: Label each loose component as you unpack to avoid misplacing parts. - 2
Unpack and organize components
Lay out the motor head, rail sections, brackets, and hardware. Pair components with the model instructions, noting any model-specific differences. Create a simple layout on the floor so you can follow the assembly sequence smoothly.
Tip: Keep fasteners in separate containers to prevent cross-mixing. - 3
Mount the header bracket and rail
Attach the header bracket to the ceiling at the marked location, then connect the rail sections, aligning them straight with the doorway. Use a level to verify perpendicular alignment to the door opening and tighten securely.
Tip: Do not overtighten brackets, which can warp mounting surfaces. - 4
Install the trolley and carriage
Slide the trolley onto the rail and secure the carriage according to the kit instructions. Ensure the carriage moves smoothly along the rail without binding and that it aligns with the door’s centerline.
Tip: Manually slide the trolley back and forth to check for smooth travel. - 5
Electrical connections and sensor mounting
Run the power cord to the outlet or wire per local codes. Mount safety sensors on either side of the door, level with the bottom of the rail. Verify sensor alignment with a straight line to the door edge.
Tip: Avoid routing wires near moving parts to prevent wear. - 6
Connect the motor and test drive
Attach the motor to the rail and engage the belt or chain drive per instructions. Perform a low-test by powering the unit and confirming the door moves along the track without resistance.
Tip: If the door doesn’t move freely, recheck alignment and clear any obstruction. - 7
Program remotes and keypad
Use the learn button on the motor to pair remotes and wall controls. Test each control at multiple distances and ensure the door responds promptly. Label remotes for convenience and safety.
Tip: Record the programming steps for future troubleshooting. - 8
Final testing and maintenance planning
Run full open/close cycles, test auto-reverse with an obstacle, and verify sensor operation. Make any minor adjustments to alignment or tension, then create a maintenance schedule for lubrication and checks.
Tip: Schedule annual inspections to catch wear before it causes failure.
Got Questions?
Is professional installation required for Genie Openers?
Professional installation is not strictly required, but electrical work and ceiling mounting can be challenging and risky. If you’re unsure about wiring, mounting to structural supports, or door balance, hire a licensed technician. Always follow local codes and manufacturer instructions.
You can install it yourself if you’re comfortable with electrical work and ceiling mounting; otherwise, consider a professional to ensure safety and proper setup.
Will Genie opener work with my existing door?
Compatibility depends on door weight, height, and track configuration. Verify model specifications in the Genie kit and match them to your door’s characteristics. If in doubt, consult the manual or GarageDoorAdjust guidance before purchasing.
Check your door’s weight and track setup against Genie’s model specs to confirm compatibility.
How do I program remotes for Genie openers?
Most Genie remotes are paired by pressing a Learn button on the motor unit and then pressing the remote button to confirm. Repeat for each remote or keypad. Test from various distances to ensure reliable operation.
Use the Learn button on the motor, then press the remote to pair it, and test at different distances.
What safety features should I verify after installation?
Ensure auto-reverse is active, sensors align correctly, and the door responds to manual movement when unplugged. Check the door balance and inspect for any binding or unusual noises during operation.
Make sure auto-reverse works, sensors are aligned, and the door is balanced and quiet.
How long does Genie opener installation typically take?
Typical installation ranges from 60 to 120 minutes for a standard setup, depending on ceiling height, wall configuration, and your familiarity with tools. Plan for extra time if you’re adapting to an older system.
Most installs take about one to two hours, depending on complexity and your experience.
Watch Video
Quick Summary
- Plan and verify compatibility before purchasing.
- Mount and align rails precisely for smooth operation.
- Safety sensors and electrical work must meet local codes.
- Program remotes and test thoroughly before regular use.
- Maintain the system with regular inspections and lubrication.
