Design a Garage Door: A Homeowner’s Step-by-Step Guide
Learn how to design a garage door that blends curb appeal with durability and energy efficiency. This expert guide covers door types, materials, insulation, weather sealing, safety features, and working with contractors to bring your design to life.
Designing a garage door means selecting a durable material, appropriate insulation, and safe hardware that fit your opening and climate. This guide provides a step-by-step approach you can follow to finalize dimensions, style, and performance goals.
Design Intent and Goals
When you set out to design a garage door, start with a clear set of objectives: curb appeal, durability, energy efficiency, and safety. Consider how the door will complement your home’s architecture and how often you’ll use the space. Define performance goals such as insulation level, wind resistance, noise reduction, and ease of operation. Document these goals in a simple design brief you can share with contractors. Aligning design intent with structural realities from the start prevents costly changes later. According to GarageDoorAdjust, a well-defined design brief reduces rework and confusion in both the planning and implementation phases.
- Clarify style goals (modern, traditional, craftsman) and how they harmonize with the rest of the house
- List required performance features (insulation, security, quiet operation)
- Note any local code considerations and permitting requirements
Site Constraints and Opening Assessment
Before choosing materials or a door type, measure the existing opening and surrounding structure with care. Record width, height, headroom, and backroom (the space behind the door when open). Check for any obstructions such as recessed lighting, overhead pipes, or sloped ceilings that could affect track routing or motor installation. Assess the condition of the door frame and rough opening; if a retrofit is planned, identify reinforcement needs. This step ensures your final design is realistic and installable in your garage. The GarageDoorAdjust team emphasizes that precise measurements are the foundation of a successful design.
- Use a laser measure or a steel tape for accuracy
- Measure at multiple points (top, middle, bottom) to catch irregularities
- Document any deviations from standard openings and plan corrective steps
Door Types and Structural Design Considerations
The most common design for residential garages is a sectional door with vertical panels and horizontal tracks. Tilt-up doors are less common today but may suit certain styles or retrofits. Think about the door’s panel configuration, panel material, and how the door will distribute weight. Consider the required headroom and backroom for tracks and springs, and ensure the design accommodates safe operation. Weight distribution, spring type, and mounting hardware all influence performance and maintenance needs. Preparing a design that accounts for structural limits from the outset helps prevent misfits and operational issues later. GarageDoorAdjust notes that selecting the right door type is half the battle in achieving long-term reliability.
- Choose a door type that matches access frequency and climate
- Plan spring system and track layout compatible with the opening
- Ensure the design allows for routine maintenance access
Materials and Aesthetics
Material choice defines not only the door’s look but its maintenance profile and longevity. Steel doors offer strength and security with low maintenance, while wood doors provide timeless character that may require more care. Aluminum and fiberglass composite doors balance weight and durability with modern aesthetics. Surface finishes, texture, and color must harmonize with the home exterior. Aesthetics should flow from architectural style to door hardware, weatherstripping, and glazing (if any). Document finish options, durability expectations, and maintenance requirements in a materials matrix to compare options objectively. The GarageDoorAdjust guidance emphasizes matching texture and color warmth to surrounding materials for a cohesive curb appeal.
- Create a color and texture swatch board
- Consider maintenance needs over the door’s expected lifespan
- Map hardware finishes to exterior fixtures (lighting, handles, hinges)
Insulation and Energy Efficiency
Insulation reduces thermal transfer, minimizes energy loss, and improves comfort in adjacent spaces. Polyurethane and polystyrene cores provide strong R-value per inch, while denser materials increase door stiffness and reduce sound transmission. The design should specify insulation thickness, core material, and whether a thermal break is needed for climate control. Weather seals around the perimeter must complement the insulation strategy to prevent drafts and moisture ingress. While high-performance insulation adds upfront cost, the long-term energy savings and interior comfort often justify the investment. GarageDoorAdjust’s approach focuses on a balanced design: insulation performance aligned with climate, opening size, and daily use.
- Match insulation to climate and room usage
- Specify continuous edge seals and bottom weatherstripping
- Ensure compatibility with garage heating or cooling plans if applicable
Weather Sealing, Moisture Control, and Climate Management
Perimeter weatherstripping, door bottoms, and side seals play a crucial role in keeping out drafts and moisture. A well-sealed door reduces comfort issues, prevents mold risk in humid climates, and protects stored items. Design the seal geometry to complement the headroom and track system while allowing sufficient clearance for operation. For doors with glazed panels, consider UV protection and glaze maintenance. Regularly review seal wear and plan for replacement intervals in the design brief. As part of the design, note weatherseal types, material compatibility with door skin, and anticipated exposure to rain, snow, or dust. The right seals also help minimize energy losses and noise intrusion.
- Specify durable, weather-resistant seals compatible with door skin
- Plan for seasonal inspections and seal replacement scheduling
- Consider moisture-prone environments and adjust materials accordingly
Hardware, Safety Features, and Automation
Hardware choices influence both function and safety. Track systems, rollers, hinges, and torsion or extension springs must be selected to match the door weight and opening size. Safety features such as pinch resistance, anti-drop devices, and photoelectric sensors are essential in modern designs. If automation is part of the plan, choose a compatible opener with manual release, battery backup, and integrated safety features. Document all hardware choices and safety components in the design spec to ensure compatibility with installation services and code requirements. The GarageDoorAdjust team highlights that well-chosen hardware improves reliability and reduces service calls.
- Define opener compatibility and safety features from the outset
- Ensure there is a manual release mechanism accessible in an emergency
- Plan preventive maintenance checks for tracks and springs
Sizing, Fit, and Clearances for Installation
Accurate sizing reduces risk of misfit and operational failures. Confirm the rough opening dimensions, jamb clearances, and the space around the door for safe operation. Include allowances for weatherstripping, insulation thickness, and mounting hardware. If retrofitting, identify any structural reinforcement needed to support a modern door and its hardware. The goal is to finalize dimensions that guarantee a smooth, quiet operation and reliable seal when closed. Always cross-check with manufacturer installation specs and your local building code guidance.
- Create a precise spec sheet with opening + wall clearances
- Verify compatibility with chosen track and spring system
- Include backup plans for non-standard openings

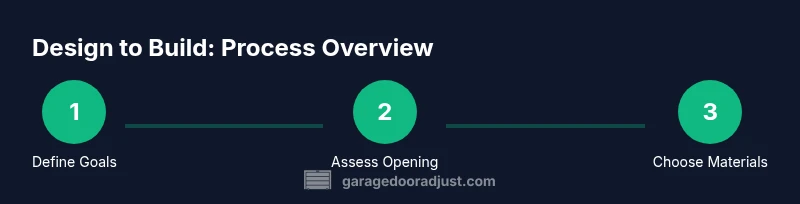

The Design Process Workflow: From Concept to Build-Ready Plans
A robust design process moves from concept through documentation to a build-ready plan. Start with a concept sketch and a materials matrix, then create a 3D mockup or CAD sketch if available. Translate choices into a bill of materials, hardware list, and installation sequence. The design should include a code compliance checklist, a maintenance plan, and a fall-back option if a chosen component becomes unavailable. By documenting the entire workflow, homeowners can communicate clearly with contractors and avoid misinterpretations. GarageDoorAdjust emphasizes formalizing decisions in a single design brief shared across stakeholders.
- Develop a concept board with style, color, and texture ideas
- Produce a bill of materials and installation sequence
- Create a concise design brief for contractors
Working with Contractors and Code Compliance
Engaging a contractor begins with a clear, detailed scope of work. Share your design brief, material choices, insulation targets, and safety requirements. Verify that the plan aligns with local building codes, wind-load requirements, and opener safety standards. Secure all necessary permits before installation and request documentation of compliance. Obtain multiple quotes and check references for workmanship quality and warranty terms. The GarageDoorAdjust team recommends a collaborative approach: treat contractors as partners who can validate design feasibility and suggest practical improvements.
- Present a well-organized design brief and specs
- Confirm permit requirements and code compliance
- Compare quotes and check warranties
Maintenance Planning and Future-Proofing Your Design
Design for longevity includes choosing durable finishes, corrosion-resistant hardware, and accessible components for future maintenance. Plan for periodic inspection of seals, tracks, springs, and opener components. Consider future upgrades such as improved insulation, weatherproofing, or smarter openers. Document a simple maintenance schedule and budget for periodic replacement parts. The aim is to minimize long-term headaches and keep your door performing reliably for years. The plan should include a maintenance calendar and replacement part guidance.
- Build in maintenance milestones and part replacements
- Choose materials with long-term durability and low maintenance needs
- Prepare for future upgrades without major redesigns
Tools & Materials
- Measuring tape (steel, 25 ft or longer)(Essential for precise opening dimensions; select metric or imperial as needed)
- Laser or carpenter’s level(Used to verify plumb, level, and alignment across components)
- Carpenter’s square(Helps confirm right angles at corners and square openings)
- Chalk line and marking pencil(For marking alignment lines and cut boundaries)
- Pencils, notebook, and design templates(Record measurements, decisions, and references)
- Swatches for color and finish(Helpful for visualizing exterior aesthetics with your home)
- Weatherstripping samples(Compare material options for durability and seal quality)
- Safety gear (gloves, glasses)(Protect hands and eyes during measurements and handling)
- Camera or smartphone for documentation(Capture existing opening details and design concepts)
- Digital scale or calipers (optional)(Useful for precise thickness checks if custom panels are considered)
- CAD or sketching software access (optional)(For precise design visuals and a shareable spec sheet)
- Notched shims or spacers(Assist with temporary alignment during mockups)
Steps
Estimated time: 3-6 hours
- 1
Define goals and budget
State your design goals, preferred aesthetics, insulation targets, and safety requirements. Create a simple budget range and determine which features are non-negotiable. This baseline guides every later decision and keeps the project focused.
Tip: Document priorities visually with sketches and a quick pros/cons list. - 2
Measure the opening accurately
Measure width, height, headroom, and backroom at multiple points and record the smallest clearances. Note any irregularities in the rough opening that could affect Track systems or panel fit.
Tip: Take photos and sketch the opening for contractor reference. - 3
Choose a door type and panel configuration
Select between sectional, tilt-up, or other compatible designs based on opening constraints and maintenance expectations. Decide panel count and surface texture that complements your home.
Tip: Consider future upgrades like additional insulation or glazing options upfront. - 4
Select materials and finish
Pick materials (steel, wood, aluminum, composite) with appropriate finishes and weather resistance. Consider maintenance needs and how finish wears over time in your climate.
Tip: Request swatches and test a sample under sun exposure before finalizing. - 5
Determine insulation level and weather sealing
Define the insulation core and thickness concept, and map weatherstripping around the perimeter. Ensure the seal design minimizes air leakage and moisture ingress.
Tip: If climate is extreme, prioritize a robust bottom seal and edge seals. - 6
Plan hardware and safety features
Choose tracks, springs (torsion or extension), rollers, hinges, and safety devices. Confirm sensor placement and manual release accessibility.
Tip: Prioritize anti-pinching designs and code-compliant safety sensors. - 7
Draft a design spec sheet
Compile all decisions into a concise spec sheet: dimensions, material, insulation, hardware, finishes, and safety features. This becomes a reference for builders.
Tip: Include a photo reference or CAD sketch to avoid misinterpretation. - 8
Review permits and code requirements
Check local building codes, wind-load requirements, and opener safety standards. Determine permit needs and which documents to present to authorities.
Tip: Consult a local pro early to avoid delays and ensure compliance. - 9
Request quotes and evaluate compatibility
Ask multiple contractors for proposals based on your spec sheet. Check that proposed openers, springs, and tracks are compatible with your chosen door system.
Tip: Ask for warranty terms and a maintenance plan in each quote. - 10
Finalize design visuals
Lock in color, texture, hardware finishes, and any decorative elements. Produce final renderings or a CAD snapshot to share with installers.
Tip: Validate color consistency across exterior elements and lighting. - 11
Prepare for installation planning
Set a realistic installation window, confirm site access, and ensure the necessary permits are in hand. Review safety procedures with installers ahead of time.
Tip: Have a contingency plan for weather-related delays. - 12
Create a maintenance and upgrade plan
Document a schedule for inspections, seal checks, lubrication, and potential future upgrades. This keeps performance high and avoids surprise failures.
Tip: Keep a simple log of service dates and parts replaced.
Got Questions?
What is the best material for a durable garage door design?
The best material depends on climate, budget, and maintenance willingness. Steel offers durability and security with low maintenance, wood provides traditional aesthetics with higher upkeep, and composites offer a balance of look and low maintenance. Consider matching your chosen material to your home's exterior styling.
The best material depends on climate and upkeep you’re willing to commit to. Steel is durable, wood has classic appeal, and composites balance look with low maintenance.
How do I measure my opening accurately for a new door?
Measure width and height at multiple points: top, middle, and bottom for width, and left-to-right at several heights for height. Note any variations and record the smallest clear opening. This prevents misfits and ensures the door fits and seals properly.
Measure the opening at several points to catch any variation. Record the smallest clear width and height to avoid ordering a door that won’t fit.
Do I need a permit to install a new garage door design?
Permit needs vary by location. Check with your local building department and your contractor to confirm whether a permit is required for door replacement or structural changes.
Permit needs depend on your area. Check with your local building department and your contractor to be sure.
Can I design a door to match my home’s architectural style?
Yes. Align door materials, finishes, and hardware with your home’s architectural language. Consider panel profiles, textures, and color to achieve a cohesive look from street to interior space.
Absolutely. Choose materials, textures, and colors that echo your home's architecture for a cohesive look.
What maintenance should I plan for the designed door?
Establish a routine for inspecting weather seals, lubricating moving parts, and verifying safety features. Schedule annual checks and address any wear before it impacts performance.
Set up annual checks for seals and moving parts, and address wear early to maintain performance.
Are there safety features required by code for garage doors?
Most codes require automatic safety sensors, pinch resistance, and a manual release. Verify your design includes these features and that installation will meet applicable standards.
Automatic sensors, pinch protection, and a manual release are commonly required; ensure your design includes them.
Watch Video
Quick Summary
- Define clear goals and constraints early.
- Measure openings with precision and document irregularities.
- Choose door type and materials that align with climate and aesthetics.
- Incorporate insulation, weather sealing, and safety from the start.
- Prepare a build-ready design brief for contractors.
