LiftMaster Belt-Drive Garage Door Opener: A Complete How-To
Learn how to install, tune, and maintain a LiftMaster belt-drive garage door opener with a clear, safety-focused approach from GarageDoorAdjust. Includes belt setup, sensor alignment, remote programming, and troubleshooting tips.
Goal: install or service a LiftMaster belt-drive garage door opener safely and reliably. You’ll need a compatible LiftMaster belt-drive kit, basic hand tools, a sturdy ladder, safety glasses, and a power source. This step-by-step guide from GarageDoorAdjust covers mounting, belt tension, wiring, sensor alignment, and remote programming to deliver quiet, smooth operation.
What is a LiftMaster Belt-Drive Garage Door Opener?
LiftMaster belt-drive garage door openers use a polyurethane belt that runs over pulleys to lift and lower the door, instead of a metal chain. This design reduces noise and vibration, making it ideal for garages adjacent to living spaces. LiftMaster integrates security features, compatibility with MyQ smart controls, and optional battery backup. When selecting a LiftMaster belt-drive system, match horsepower (HP) and rail length to your door's weight and height. A properly chosen unit delivers smooth starts, gentle reversals, and reliable safety features. According to GarageDoorAdjust, belt-drive models are a popular choice for homeowners seeking quiet operation without sacrificing performance.
Why Belt Drive over Chain or Screw Drive
Belt-drive openers run more quietly and with less vibration than chain or screw-drive models. They tend to have smoother starts and stops, which reduces wear on door springs and tracks over time. The trade-off is higher upfront cost and occasionally more complex installation. For most standard residential garages, a LiftMaster belt-drive option offers a comfortable balance of quiet operation, reliability, and smart features. If your garage is connected to living spaces or you want a premium user experience, belt-drive is usually the recommended path.
Key Features of LiftMaster Belt Drive Openers
- Quiet operation thanks to the polyurethane belt and smooth-start technology.
- DC motor with soft-start and soft-stop controls for gentler door movement.
- MyQ smart home compatibility for remote control, scheduling, and monitoring.
- Built-in battery backup on select models for power outages.
- Enhanced security with rolling code technology and secure remote pairing.
- Durable construction and steel gear systems designed for long service life.
These features collectively make LiftMaster belt-drive openers a strong choice for most residential garages.
Installation Overview: What You Need
Before you start any installation, plan for a clean workspace, ensure the power is off, and confirm you have a compatible LiftMaster belt-drive kit matched to your door size. Gather basic hand tools, a sturdy ladder, a level, a tape measure, and safety equipment like gloves and eye protection. You’ll also need the wall control, photo-eye sensors, and remotes supplied with your kit. Review the installation manual for torque specs, rail lengths, and wiring diagrams. If your garage has no overhead mounting space or you have an unusually heavy door, you may need professional help to ensure safe operation.
Safety, Wiring, and Sensor Alignment Fundamentals
Safety sensors must be properly aligned and mounted on opposite sides of the door opening. After wiring the opener, verify the limit switches set the door to stop at the fully closed position and that the travel limits are correct for opening and closing. Use a voltage tester, follow color-coded wire schematics, and avoid pinching wires in tracks or brackets. Always disconnect power before handling electrical connections and never bypass safety features. For belt-drive systems, ensure belt tension follows the manufacturer’s recommended spec to avoid slippage and noisy operation.
Maintenance and Troubleshooting Common Issues
Regular maintenance extends belt life and preserves quiet operation. Inspect the belt for fraying or cracking, verify the trolley travels smoothly along the rail, and check the safety sensors for misalignment or dirt. If the door makes unusual noises or stops unexpectedly, recheck belt tension, track alignment, and limit/light settings. Remote pairing issues can usually be resolved by re-syncing the remotes and re-running the learned code sequence. Always test the auto-reverse feature with a small object to confirm safety.
Cost, Warranty, and Maintenance Best Practices
Costs for LiftMaster belt-drive openers vary by model, horsepower, and installation requirements. In general, expect that higher-end belt-drive units offer more features and longer warranties, while installation complexity can influence overall price. Always review the warranty terms for belt wear, motor life, and sensor coverage. Schedule periodic maintenance, clean and lubricate moving parts per the manual, and replace worn components promptly to preserve performance and safety.
Tools & Materials
- LiftMaster belt-drive opener kit compatible with your door(Ensure kit matches door weight and rail length)
- Ladder (6-8 ft)(Secure placement on a stable surface)
- Drill with bits(For mounting brackets and fasteners)
- Screwdrivers (Phillips and flat-head)(For screws and small hardware)
- Socket wrench set(Torque-critical bolts and brackets)
- Pliers and wire strippers(Wiring of sensors and power")
- Tape measure and level(Rail alignment and door centering)
- Safety glasses and gloves(Personal protection)
- Stud finder(Helpful for locating ceiling joists)
- Wire nuts and electrical tape(Secure and insulate connections)
- Marker or pencil(Mark drilling points and alignment)
- Lubricant for tracks/belt(Light lithium grease or silicone spray)

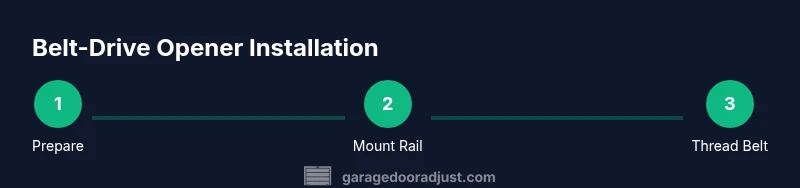

Steps
Estimated time: 90-150 minutes
- 1
Power down and secure the workspace
Begin by unplugging the opener or cutting power at the circuit breaker. Clear the area, remove pets and kids, and tape off the area to prevent accidental operation during work. This first step reduces the risk of injury.
Tip: Double-check that the power is off using a test tool before touching any wiring. - 2
Remove or prepare the existing mounting
If replacing an old unit, disconnect and remove it carefully. If this is a first-time installation, mount the ceiling bracket to a solid joist. Ensure the bracket is plumb and square before proceeding.
Tip: Use a level to ensure the bracket is perfectly vertical; a crooked mount causes belt misalignment. - 3
Install the ceiling rail and align with the door
Attach the rail assembly to the mounting bracket and verify proper clearance above the door opening. The rail should run parallel to the wall and smoothly track with the door’s path.
Tip: Mark the rail position on the ceiling so you can check alignment after belt installation. - 4
Thread the belt and secure the trolley
Place the Belt onto the motor pulley following the manual, then thread it through the trolley as directed. Check for even belt tension across the length of the track.
Tip: Avoid twisting the belt and ensure it seats fully into pulleys to prevent slip. - 5
Mount the motor unit and connect electricals
Lift the motor unit into place and fasten it to the ceiling bracket. Connect the power cord, limit switches, and any safety sensor wiring per the diagram. Do not force connectors.
Tip: Respect color-coded wires; take a photo of existing connections before removing them for reference. - 6
Install safety sensors and align endpoints
Position the photo-eye sensors on opposite sides of the door opening and ensure a clear line of sight. Check that the safety beam lights glow steadily and that alignment is precise.
Tip: If the LEDs do not illuminate properly, adjust the sensor position slightly and retest. - 7
Program remotes and set up MyQ controls
Follow the manufacturer’s steps to pair remotes, wall control, and any smartphone integration. Test each remote from different distances and confirm secure operation.
Tip: Always re-check remotes after wiring changes to confirm the learning sequence is complete. - 8
Test full operation and adjust limits
Reapply power and run a full test: open and close the door, observe the auto-reverse, and fine-tune limit switches for full closure without crushing.
Tip: Test with a lightweight object to verify safety reversal works correctly. - 9
Lubricate and finalize
Lubricate moving parts of the rail and pulley system sparingly. Recheck all fasteners and ensure clean, neat wiring.
Tip: Use only light lubricants designed for garage door hardware; avoid over-lubrication which can attract dust.
Got Questions?
Is a LiftMaster belt-drive opener compatible with my existing garage door?
Most standard residential doors are compatible, but you must match horsepower, rail length, and door weight to the model. Check the door height and weight specifications and verify the rail length supported by the kit.
Most standard doors are compatible, but you should match horsepower and rail length to your door weight and height. Check your door’s specs and the kit guidelines.
How do I program remotes and MyQ with a LiftMaster belt-drive opener?
Begin by clearing old programming if needed, then follow the manual to learn new remotes and pair MyQ via the app. Test each remote at multiple distances to confirm reliable operation.
Clear old programming if needed, then follow the manual to pair remotes and connect MyQ. Test from different distances.
What should I do if the safety sensors won’t align?
Check for proper mounting height, ensure a clear line of sight, and clean lens surfaces. Adjust the sensors until the beam indicator shows a solid status at both ends.
Make sure they’re mounted correctly, clean their lenses, and adjust until both sides show a solid beam.
Can I install a LiftMaster belt-drive opener myself, or should I hire a pro?
A confident DIYer with basic electrical and mechanical skills can install a belt-drive opener, but consider a pro if you’re uncertain about wiring or ceiling mounting. Professional installation adds safety margin and warranty validation.
If you’re comfortable with electrical work and mounting, you can DIY, otherwise hire a pro for safety and warranty reasons.
What maintenance schedule should I follow for belt-drive openers?
Inspect and lubricate rails annually, test safety features monthly, and check belt tension during routine maintenance. Schedule professional service if you notice excess noise or misalignment.
Inspect and lubricate yearly, test safety monthly, and check belt tension during routine checks.
Watch Video
Quick Summary
- Install belt-drive units for quiet, smooth operation.
- Follow safety protocols and verify sensor alignment.
- Program remotes and MyQ controls after wiring.
- Test tension, limits, and auto-reverse before regular use.
- Perform regular maintenance to extend belt life.
