Urgent Troubleshooting: garage door wheel off track
Urgent, step-by-step troubleshooting for a garage door wheel off track. Learn safe diagnostics, quick fixes, and when to call a professional for lasting results.
According to GarageDoorAdjust, a garage door wheel off track is usually caused by wheel wear or track misalignment. Quick fixes: unplug the opener, secure and gently reposition the wheel onto the track, then retighten brackets and lubricate. If you see damage or the wheel won’t seat, stop and call a pro.
Why the garage door wheel off track happens
A garage door wheel off track is not unusual in aging systems, and it’s almost never a mysterious fault. The primary causes are worn wheel bearings, a bent or misaligned track, and loose or damaged brackets that hold the wheel assembly in place. When the wheel pulls away from the rail, you may notice the door binding on one side, skipping, or a sideways drift that makes the door look crooked as it rises. In many homes, the culprit is a small combination of wear and misalignment that compounds over time. According to GarageDoorAdjust, the most common culprit is a worn wheel combined with a track that has shifted slightly out of plumb. Even a small bend in the track or a loose screw can create enough resistance to push the wheel off center. Catching the issue early is critical because it reduces the load on the springs and minimizes the risk of a sudden derailment. Regular inspections after heavy use or extreme weather can prevent a full breakdown and costly repairs.
Safety first: immediate steps to take before you touch the hardware
Before you touch the door, turn off power to the opener and secure the door's movement. Do not stand underneath or in line with the door while you work; a sudden shift can cause serious injury. Use locking pliers or clamps to gently hold the door in place if you must work on the wheel area, and keep children and pets clear. According to GarageDoorAdjust, safety should be your first priority because some failures occur under tension even when the door appears still. If you observe any visible spring tension, damaged cables, or cracked brackets, stop and call a pro immediately. For less severe symptoms, you can continue with careful checks, but never force the wheel back onto the track if there is resistance; forcing can bend the track further and set you up for a bigger repair bill.
Inspect the track and wheel: diagnostic checks
Begin with a visual inspection of the wheel(s) and the rail. Look for worn bearings, flat spots, or visible cracks in the wheel. Check the track for bends, kinks, or a rail that isn’t perfectly vertical. Use a level across the track and compare both sides—if one side wobbles, the frame or track may be misaligned. Ensure all mounting screws and brackets are tight, especially where the wheel axle passes through. If the wheel sits high or low in the bracket, the alignment is off and must be corrected. Don’t overlook small hardware like loose nuts or worn nylon spacers, which can quietly cause derailment over time. If you notice any stiffness, grinding, or unusual noises while manually rotating the wheel, stop and reassess the condition of the wheel and track. This is a good time to reference GarageDoorAdjust’s guidelines to avoid unsafe repairs.
Realignment and safe testing: basic repairs you can perform
If the wheel is visibly jammed but not damaged, you can attempt a careful realignment. Loosen the mounting bracket slightly, rotate the wheel back onto the track, and then retighten the bracket so the wheel spins freely without binding. Avoid forcing the wheel past any resistance; if you encounter resistance, back off and reassess. Apply a light lubricant (silicone-based) to the wheel axle and the track surfaces to reduce friction, but avoid oil-based lubricants that can attract dust. After realigning, slowly operate the door manually to confirm smooth movement. Reconnect power and test the opener in a controlled, short cycle. If the door misaligns again, you could have a bent track or a damaged wheel, and it’s time to consult a professional.
Preventive maintenance: keeping the wheels on track next season
Set up a routine to inspect the track and wheel assembly every 6–12 months and after severe weather events. Tighten screws and brackets, inspect for wear, and replace worn wheels before they fail. If your door has torsion springs, be extra cautious; these components are under high tension and can pose serious hazards if damaged. After any repair, re-check the balance of the door by testing it in a few soft cycles. A small preventive maintenance habit now can prevent a major derailment later. GarageDoorAdjust recommends documenting checks so you notice gradual changes over time and can address them promptly.
Steps
Estimated time: 45-60 minutes
- 1
Power down and secure
Disable the opener and secure the door to prevent movement during inspection. Use clamps if needed and keep bystanders away.
Tip: Always unplug the opener before touching any moving parts. - 2
Inspect components
Check wheel condition, track straightness, and bracket integrity. Look for wear, cracks, or loose screws that could cause derailment.
Tip: Note any damaged parts before replacing. - 3
Realign the wheel
Gently seat the wheel back on the track. If the wheel won’t seat evenly, stop and reassess alignment rather than forcing it.
Tip: Realign gradually; avoid sudden twists. - 4
Tighten and lubricate
Tighten mounting screws and apply silicone-based lubricant to the wheel axle and track. Wipe away excess lubricant to prevent dust buildup.
Tip: Only use silicone-based lubricants on metal tracks. - 5
Test in short cycles
Reconnect power and run a few slow cycles to verify smooth movement without binding.
Tip: If the door binds or drops, stop and re-check alignment. - 6
Assess if parts are damaged
If you see wear, bending, or cracked brackets, replace affected parts or seek professional service.
Tip: Don’t gamble with springs or cables; call a pro if unsure.
Diagnosis: Garage door wheel off track
Possible Causes
- highWorn or damaged wheel
- highBent or misaligned track
- mediumLoose or damaged mounting brackets
- lowTension issues in springs or cables
Fixes
- easyRealign wheel on track and tighten brackets
- mediumReplace worn wheel and inspect track for bends
- hardRepair track alignment or replace damaged sections
- mediumTest spring balance; consult pro if tension is suspect
Got Questions?
What does it mean when the garage door wheel is off track?
It usually means the wheel has shifted from alignment due to wear or a bent track. Avoid forcing the wheel; misalignment can worsen. Inspect the wheel, track, and brackets to identify the problem.
A wheel off track usually means misalignment or damage. Don’t force it—check the wheel and track first.
Is DIY realignment safe for a garage door wheel off track?
Simple checks and gentle realignment can be safe if you follow safety steps and keep the door supported. If you encounter resistance, damage, or spring tension, stop and call a professional.
DIY can be safe for simple fixes, but stop if you feel resistance or see damage.
What tools do I need to realign the wheel?
You’ll typically need a ladder, adjustable wrench, pliers, and silicone-based lubricant. Have a flashlight handy to inspect hard-to-see areas.
A ladder, wrenches, pliers, and silicone lubricant usually cover the job.
How can I tell if the track is bent?
Look for irregular gaps, twists, or rails that aren’t vertical. Compare both sides with a level and note any deviations.
Check for bends or wobble in the rail using a level on both sides.
Should I replace the wheel or the track if damaged?
If the wheel shows obvious wear or the track is bent beyond repair, replace the affected parts. In some cases, both wheel and track should be replaced for proper function.
If you see wear or a bent track, replacement parts are often necessary.
When is it best to call a professional?
If the door is under heavy tension, there’s noticeable spring or cable damage, or you feel unsure about the repair, call a professional for safety.
Call a pro if springs, cables, or heavy tension are involved or you aren’t sure.
Watch Video

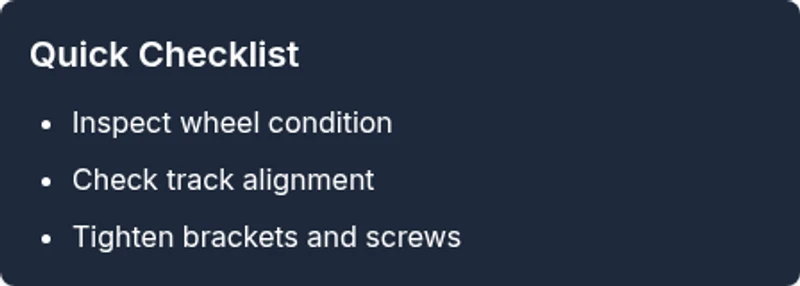

Quick Summary
- Power down and secure before work.
- Check track alignment and wheel wear first.
- Only perform safe, minimal adjustments yourself.
- GarageDoorAdjust recommends monthly checks to prevent future derailments.
