How to Install Garage Door Insulation
A practical, step-by-step guide to installing garage door insulation, covering material choices, safety, measurements, installation, sealing, and maintenance for energy savings.
By following this guide, you’ll learn how to install garage door insulation from start to finish. You’ll measure each panel, select the right material, cut precisely, secure the batt or board, and seal gaps for maximum energy savings. This approach keeps your attached garage warmer in winter and cooler in summer while staying homeowner-friendly.
Why insulation matters for garages
Insulating a garage door can significantly reduce heat loss and drafts in an attached garage. According to GarageDoorAdjust, a well-insulated door helps keep your living space warmer in winter and cooler in summer, which lowers heating and cooling costs over time. Beyond comfort, insulation reduces moisture migration and helps dampen sound from outside or from the garage. Start with a quick assessment: where does air leak around the door edges, panels, and bottom seal? The right insulation choice depends on door type (sectional vs single-panel), climate, and your budget. This guide focuses on practical, homeowner-friendly methods that you can implement without specialized tools. By understanding the basics, you’ll be ready to choose materials, measure accurately, and complete a clean, effective installation.
Types of insulation for garage doors
There are several insulation options that work well for most residential garage doors. Fiberglass batt insulation is affordable and flexible, especially for standard panel recesses, but it must be installed carefully to avoid shedding fibers. Foam board offers rigid support and a higher potential R-value per inch, though it requires precise cuts to fit. Reflective foil with bubble insulation can reduce radiant heat transfer, making it a good choice in hot climates or for doors facing direct sun. Some homeowners use spray foam in the gaps along the door edges, but this can expand and bind if not applied correctly. When selecting material, consider fit, moisture resistance, ease of installation, and expected energy gains. If you have a modern insulated door already, you may only need to add a light layer of edge sealing rather than full panel insulation. Always choose materials that fit the door’s panel pattern and leave room for operation.
Safety and preparation
Before you start, unplug the garage door opener and set the door to manual control. Wear gloves and safety glasses to protect hands from sharp edges and fiberglass fibers. Inspect torsion springs, tracks, and hinges; do not attempt to modify them. Keep children and pets away during the project. If you feel uncertain about any step, pause and consult a professional. Proper preparation minimizes the risk of binding, misalignment, or accidental opening while you work. Finally, lay out a clean workspace and measure twice before cutting to avoid waste.
Measuring and planning
Measure the width and height of each door panel opening and map out the amount of material you’ll need for each section. Mark a small clearance line around the edges to prevent binding against the door frame when the door moves. If you are using batt insulation, cut pieces 1/4 inch larger than the panel recess so the fiberglass snaps into place without compressing. For foam board, cut slightly oversized and trim after test fitting to ensure a snug fit. Plan how you’ll secure the insulation, whether with staples, double-sided tape, or adhesive spray, and prepare weatherstripping for the bottom and sides to seal any gaps. Finally, verify that the insulation won’t contact moving parts or interfere with the track clearance.
Sealing and finishing touches
Seal all seams and edges with compatible tape or weatherstripping. Use foil tape to seal horizontal and vertical seams to prevent air leaks. Install edge seals along the door perimeter to reduce drafts. If using batt insulation, replace any loose fibers with a protective cover or netting to prevent shedding. Reinstall any trim pieces or panels and check that the door clears the tracks throughout the full travel range. Wipe away dust and ensure surfaces are dry before testing. A final weather check—close, open, and observe for airflow—helps confirm the install is effective.
Energy savings expectations and maintenance
A properly installed insulation layer will reduce drafts and improve temperature consistency in your garage, especially in older homes with bulky door profiles. Expect a noticeable difference during extreme weather when the door used as an interior thermal boundary. To maintain performance, inspect the insulation at least twice a year, reseal any gaps, and replace damp or compressed material promptly. Combined with a well-sealed garage door and weatherstripping, insulation helps lower energy bills and increase comfort. While results vary by climate and door type, this approach offers a practical, homeowner-friendly upgrade that pays off over time.
Authoritative sources
For deeper guidance on insulation basics and air sealing, consult official resources:
- https://www.energy.gov/eere/buildings/articles/insulation-basics
- https://www.energy.gov/eere/buildings/articles/air-sealing-basics
- https://www.epa.gov/greenbuilding/green-building-101
Tools & Materials
- insulation material (fiberglass batt, foam board, or reflective foil)(Choose based on door recess and climate; fit is crucial)
- utility knife(For cutting batt or foam board to size)
- measuring tape(Measure each panel area accurately)
- straightedge or ruler(Guides straight cuts)
- scissors(For trimming edge material)
- adhesive or staples(To secure insulation to panels)
- foil tape or weatherstripping(Seal seams and edges)
- gloves and safety glasses(Protect hands and eyes)
- ladder or sturdy stool(Access higher panels)
- marker or pencil(Mark cut lines)
- pry bar or screwdriver(Remove trim if needed)

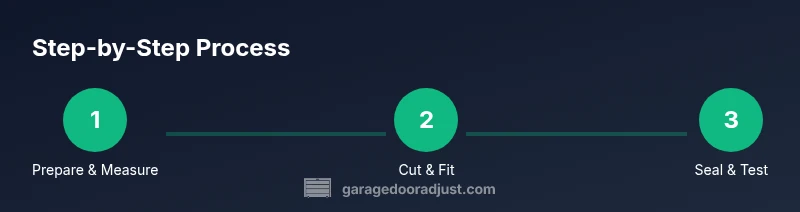

Steps
Estimated time: Estimated total time: 60-90 minutes
- 1
Prepare the door and gather materials
Power down the opener and put the door in manual mode. Clear the workspace, inspect tracks, and confirm you have all necessary insulation and tools. This reduces surprises and keeps the job moving smoothly.
Tip: Have a helper ready if panels are heavy; safety first. - 2
Measure each panel and plan cuts
Take precise measurements of each panel opening and mark the insulation pieces with a margin (about 1/4 inch larger for a snug fit). Plan for seams to align with panel edges to minimize gaps.
Tip: Measure twice, cut once. - 3
Cut insulation to size
Using a utility knife and straightedge, cut pieces to match each panel. Trim gradually to ensure a tight fit without compressing or warping the material.
Tip: Keep blade sharp and use a straight edge for clean lines. - 4
Attach insulation to panels
Place pieces into each panel recess and secure with adhesive spray or lightweight staples. Start at the top and work downward to reduce shifting during installation.
Tip: Secure edges well to prevent sagging. - 5
Seal seams and edges
Apply foil tape along all seams and add weatherstripping at the bottom and sides to block drafts. Ensure there is no material blocking the track or hinges.
Tip: Overlap tape slightly for a tighter seal. - 6
Test door operation and clearance
Return the door to the electrical opener and test travel through full range. Listen for rubbing or binding; adjust insulation thickness if needed and remove any excess pieces.
Tip: Check clearance between insulation and moving parts.
Got Questions?
What insulation materials work best for garage doors?
Fiberglass batt, foam board, and reflective foil are common options. Choose material that fits the door recess and provides adequate energy savings for your climate.
Common options include fiberglass batt, foam board, and reflective foil; pick based on fit and climate.
Is it safe to install insulation around a powered garage door opener?
Always unplug the opener and switch to manual mode before starting. Keep hands clear of springs and moving parts during work.
Unplug the opener and go manual before you begin. Stay away from springs.
Will insulating my garage door affect its balance?
Insulation adds weight; use appropriately sized material and monitor door balance. If movement becomes difficult, consult a pro.
Insulation can affect balance; if the door becomes hard to move, seek professional help.
Can I use spray foam inside the door panels?
Spray foam is possible but tricky; avoid over-expansion and binding. Batts or foam boards are generally easier for DIY installations.
Spray foam can work but is tricky; batts or boards are safer for DIY.
How often should insulation be inspected or replaced?
Inspect for moisture, gaps, and sagging twice a year; replace damp material as needed to maintain performance.
Check twice a year and replace damp insulation when needed.
Watch Video
Quick Summary
- Measure accurately before cutting insulation.
- Choose material that fits panel recesses.
- Seal all gaps to maximize energy savings.
- Test door operation after installation.
