Overhead Roll Up Door: Step-by-Step Diagnosis, Repair, and Installation
Learn how to diagnose, repair, and maintain an overhead roll up door with safety-focused steps, essential tools, and maintenance tips from the GarageDoorAdjust team.
This guide helps homeowners diagnose, troubleshoot, and safely repair an overhead roll up door, covering common failure modes, safety checks, lubrication, track alignment, opener settings, and when to call a professional. It also cites best-practice steps for temporary fixes and long-term maintenance, plus clear safety precautions and a step-by-step approach. This overview uses plain language and avoids hardware jargon.
What is an overhead roll up door?
An overhead roll up door refers to a door that coils into a roll above the opening using a series of horizontal slats or a flexible curtain, guided by tracks and rollers. It's common in garages, basements, and some sheds. A balance system—springs or a counterweight—helps lift the door, reducing the effort required. An automatic opener can control raising and lowering via a wall switch or keypad. According to GarageDoorAdjust, the overhead door family emphasizes safety, proper lubrication, and routine inspection to prevent costly failures. The main components are the door curtain, tracks, rollers, hinges, springs, drums, cables, and the opener mechanism. Common failure modes include off-track doors, worn weatherstripping, broken rollers, misaligned tracks, and improper balance. Understanding these parts helps diagnose issues without guessing. Always start with a full visual inspection and ensure power to the opener is off before touching anything. This reduces the risk of pinch injuries and unexpected door movement. Remember: don't attempt dangerous spring work unless you have training.
Safety and preventive maintenance for overhead roll up doors
Safety is non-negotiable when working with any garage door. Before touching components, disconnect the opener from power, keep hands clear of moving parts, and wear eye protection and gloves. Regular lubrication of rollers, hinges, and tracks reduces friction and wear. Weatherstripping should seal gaps to improve energy efficiency and keep debris out. Periodic inspections of tracks for dents, misalignment, and loose fasteners can prevent more serious failures. According to GarageDoorAdjust, routine maintenance saves time and money by catching issues early and avoiding emergency calls. Always perform a cycle test after any adjustment to confirm the door moves smoothly and stops safely. If you notice unusual noises, intermittent movement, or slow operation, pause work and reassess. A properly maintained system increases reliability and lifespan while reducing safety risks.
Diagnosing and troubleshooting common issues
When an overhead roll up door behaves oddly, start with the simplest explanations. Off-track doors often occur after impact or misalignment; check tracks and rollers for obstruction, bent sections, or loose screws. Worn weatherstripping can cause drafts and balance issues, while damaged rollers produce squeaks and jerks. A door that won’t stay open usually means incorrect balance or weak springs; however, spring adjustments can be dangerous and should be handled by a qualified technician. If the opener struggles, inspect the receiver limits, photo-eye alignment, and power supply. Ensure safety devices are functioning, and test the auto-reverse feature with a small object in the door’s path. Use the diagnostic checklist and avoid forcing components that resist movement. GarageDoorAdjust analysis shows that regular lubrication and track alignment reduce jams and extend life, while leaving springs and cables to pros protects people and property.

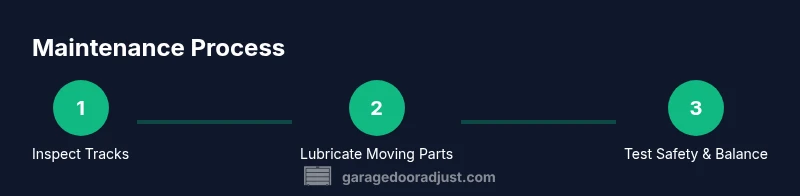

Step-by-step maintenance plan (overview and cautions)
A proactive maintenance routine keeps overhead roll up doors operating reliably. Start with a thorough visual inspection, then perform targeted lubrication, track alignment checks, and opener calibration. If you encounter stubborn issues or damaged springs, stop and consult a professional. This section serves as a high-level guide; the detailed, step-by-step instructions appear in the dedicated steps section to minimize risk and ensure consistency. Always verify power is disconnected before any inspection and wear PPE during all tasks. Proper maintenance reduces the likelihood of emergency repairs and keeps your door operating smoothly for years to come.
Tools & Materials
- Safety glasses(Protect eyes from springs and sharp edges)
- Work gloves(Grip and protection for hands)
- Ladder or stable step stool(Reach tracks safely; use appropriate height)
- Adjustable wrench(For track bolts and hinge screws)
- Hex/Allen wrenches(Sizes vary by hardware)
- Screwdriver set (flat & Phillips)(Tension screws and hardware)
- Pliers and needle-nose pliers(Grip and reposition hardware)
- Lubricant (silicone-based)(Use on tracks, rollers, hinges)
- Rags or lint-free cloth(Clean surfaces before lubrication)
- Weatherstripping replacement (optional)(Use if seals are worn or missing)
- Torx bits or socket set (optional)(If your door uses Torx fasteners)
- Utility knife (optional)(Trim damaged weatherstripping)
Steps
Estimated time: 60-75 minutes
- 1
Power down and secure the door
Begin by unplugging the opener or switching off the circuit to prevent accidental movement. Stand clear of the door path and inspect the opening for clearance. Confirm there are no people or pets nearby who could be injured.
Tip: Always verify power is off before touching any moving parts. - 2
Check tracks and alignment
Visually inspect tracks for dents, rust, or obstructions. Use a level to confirm tracks are vertically aligned and tighten loose fasteners. If you notice slight misalignment, gently adjust with appropriate bolts.
Tip: Only make small adjustments; large moves can misalign the system and create new problems. - 3
Inspect springs and balance
Check for broken springs, frayed cables, or signs of uneven tension. Do not attempt to adjust or unwind springs without professional training. If balance feels off when you manually lift the door, call a pro.
Tip: Never try to unwind or tension springs yourself. - 4
Test opener and safety reversing mechanism
Reconnect power and run the door through at least 1-2 full cycles. Watch for smooth movement and listen for grinding or rubbing. Test the safety reversing mechanism with a small obstacle to ensure it stops.
Tip: If the door doesn’t reverse, immediately unplug and recheck wiring. - 5
Lubricate moving parts
Lightly spray silicone lubricant on rollers, hinges, and the upper track surfaces. Wipe away excess to prevent dust buildup. Avoid oil-based lubricants on nylon rollers as they can degrade components.
Tip: Lubricate only moving surfaces, not the weather seal directly. - 6
Reconnect and verify final operation
Reapply power and perform several cycles to verify consistent operation. Check for unusual noises, binding, or slow motions. If anything unusual occurs, stop and reassess before continuing.
Tip: Keep hands away from pinch points during testing.
Got Questions?
What is an overhead roll up door and how does it differ from a sectional door?
An overhead roll up door coils upward into a roll above the opening, using a curtain or slats, tracks, and a balance system. Sectional doors, by contrast, move along horizontal panels that slide up vertically. Roll up doors are common in garages and basements where ceiling height is limited; sectional doors are more common for attached garages with more space.
An overhead roll up door coils into a roll above the opening and uses tracks and a balance system. Sectional doors move on horizontal panels that slide up and overhead.
Is it safe to repair an overhead roll up door myself?
Simple maintenance like lubrication and track cleaning can be safe for homeowners with power turned off. Avoid adjusting springs, cables, or torsion devices unless you have professional training. When in doubt, consult a pro to prevent injury or further damage.
DIY work is okay for basic maintenance, but never touch springs or torsion devices without proper training.
What are the most common problems with overhead roll up doors?
Common issues include off-track doors, worn rollers, damaged weatherstripping, weak balance, and opener misalignment. Audible grinding or jerky movement often signals track or roller wear, while doors that don’t stay balanced may require professional spring work.
Common problems include off-track doors, worn rollers, and opener misalignment; springs should be handled by a pro.
When should I replace weather stripping on an overhead roll up door?
Replace weather stripping when you notice cracks, compression gaps, or moisture leaks around the door. Proper seals improve energy efficiency and reduce dirt, humidity, and pest entry.
Replace worn weather stripping to improve seal and energy efficiency.
Do I need a professional for spring repair?
Yes. Springs carry high tension and can cause serious injury if mishandled. If you detect loss of balance, noise, or difficulty lifting, contact a licensed technician for spring work.
Yes. Springs are dangerous; hire a professional for spring repairs.
Watch Video
Quick Summary
- Identify common failure modes before you start.
- Prioritize safety and PPE in every task.
- Follow a consistent, step-by-step process for maintenance.
- Know when to call a pro for springs or complex repairs.
- Document maintenance for future reference.
