Before and After Garage Door Painting: A DIY Guide
A complete DIY guide to the before and after garage door painting transformation, covering prep, primers, color choices, and finish care for wood, steel, and aluminum doors.
You will learn how to plan, prep, and execute a durable garage door paint project for before and after garage door painting. The guide covers surface prep, primer selection, color and finish choices, and step-by-step painting techniques for wood, steel, and aluminum doors. It also covers safety and weather considerations.
Planning the before and after garage door painting project
When you start a garage door painting project, the first step is planning. According to GarageDoorAdjust, a well-planned paint job yields longer-lasting results for the before and after garage door painting transformation. Begin by identifying your door material—wood, steel, aluminum, or composite—and confirm local weather windows that allow for proper drying. A clear plan reduces surprises, helps you budget, and ensures you select primers and paints that stand up to sun, rain, and temperature swings. Set realistic goals for color, finish, and durability, and outline the sequence of steps you will take. Finally, determine whether you will remove the door for painting or mask it in place, and assign a rough timeline based on cure times and available daylight.
Choosing the right plan and materials
A solid plan includes a materials list, a safety checklist, and a timeline for each stage of the project. Track door dimensions, hinge locations, and weather forecasts so you can optimize dry times. For the before and after garage door painting, decide on a color scheme that complements your home’s exterior and consider light-reflective paints to keep the surface cooler in hot sun. This planning stage also helps you budget for primers, paints, and tools, and it sets expectations for the finish you’ll achieve. Remember, preparation is the difference between a quick patch job and a lasting transformation.
Safety and weather considerations
Painting a garage door involves outdoor exposure, so outdoor safety matters. Protect eyes and skin from splatters, and ensure good ventilation if you use solvent-based products. Check the weather forecast to avoid painting in high humidity, direct sun, or imminent rain. Dry times lengthen in cool or humid conditions, so plan to complete painting within a window when temperatures are steady and above 50°F (10°C). These weather considerations help you avoid streaks, cracking, and peeling.
Surface assessment and testing
Before you begin the actual painting, perform a surface test to determine adhesion and lift. Lightly sand a small area, clean thoroughly, and apply a small patch of primer and paint. If the patch adheres well and dries evenly, you’ve chosen compatible products. If not, revisit your primer type or surface preparation method. This small test can prevent larger problems on the entire door and is a cornerstone of the before and after garage door painting process.
Material selection: primers and paints by door type
Surface type dictates primer and paint choices. Wood doors respond well to high-solids acrylic primers and exterior acrylic latex paints; metal doors benefit from rust-inhibiting primers and 100% acrylic topcoats; aluminum doors should use a bonding primer and a flexible acrylic finish to handle expansion and contraction. For all materials, select a finish that balances durability with ease of cleaning (semi-gloss or gloss is common). The right combination improves adhesion and reduces peeling in future seasons.
Color and finish planning
Choose a color palette that complements your home’s exterior and adds curb appeal. If you’re unsure, test chips on a small, inconspicuous area to visualize the final look and avoid color surprises. Consider a two-tone approach (body and trim) to highlight architectural details. Be mindful of color fastness and UV resistance; darker colors require more careful surface preparation and occasional touch-ups over time. A well-chosen finish also resists staining from dust or exhaust, preserving the door’s appearance for years.
Cleaning up and final checks
Once the paint has cured, perform final checks for drips, missed spots, and hardware alignment. Reattach or replace hardware, seal edges, and wipe away any dust from the door surface. A light cleaning with a soft cloth helps remove dust before the door returns to service. Document lessons learned for future touch-ups and plan periodic inspections to maintain the finish over time.
Common mistakes and how to avoid them
Rushing the prep, skipping primer, or painting in unsuitable weather are the most common errors. Skipping masking can lead to paint on tracks and weatherstripping, increasing cleanup time. Underestimating dry times can cause marring of the finish. By planning thoroughly and following a disciplined sequence, you’ll achieve a durable, attractive result that lasts.
Tools & Materials
- Exterior soap or degreaser(For cleaning dirt, oil, and chalky residue before painting)
- Non-scratch scrub brush(To scrub the door surface without gouging)
- Drop cloths or plastic sheeting(Protect driveway, plants, and pavement)
- Painter's tape(Mask edges and hardware areas)
- Ladder or sturdy step stool(Access high sections safely)
- Safety gear (gloves, goggles, mask)(Protect skin and lungs from fumes and debris)
- Sandpaper (120-220 grit)(Prepare glossy surfaces for adhesion)
- Putty knife and wood filler or epoxy(Fill minor cracks or dents)
- Rust-inhibiting metal primer(For steel or aluminum doors)
- Exterior acrylic latex primer(Promotes adhesion and sealing)
- Exterior acrylic latex paint (satin/semi-gloss)(Durable, easy to clean finish)
- Paint brushes (1-2 inch sash) and foam rollers(Provide even coverage)
- Paint tray and liner(Keep paints organized and clean)
- Spray sealant or topcoat (optional)(Adds extra UV protection for sunny climates)

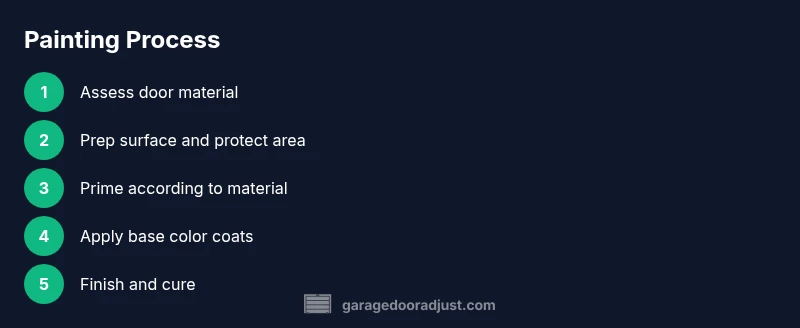

Steps
Estimated time: 3-7 hours total
- 1
Assess materials and plan
Evaluate door material, climate, and color goals. Create a materials list and a realistic timeline that accounts for dry times and weather. This planning reduces surprises and ensures you use compatible primers and paints.
Tip: Document measurements and photos for reference. - 2
Protect workspace and remove hardware
Cover the ground with drop cloths and mask edges, weatherstripping, and hardware with painter’s tape or masking film. If possible, remove the door or separate it from tracks to simplify access.
Tip: Keep hardware in labeled containers for easy reassembly. - 3
Clean and degloss the surface
Wash away dirt, oil, and chalky films; rinse and let dry. Lightly scuff smooth surfaces with sandpaper to improve primer adhesion. A clean, slightly rough surface yields better long-term durability.
Tip: Dry surface completely before priming. - 4
Make repairs and fill imperfections
Fill cracks or dents with appropriate filler. Sand flush and wipe away dust so the surface remains even. Address rust spots on metal doors with rust-inhibiting primer.
Tip: Test a small area first to confirm filler compatibility. - 5
Mask edges and plan primer strategy
Apply primer to bare wood or metal surfaces following the product’s instructions. Edge areas should be primed separately to ensure complete coverage and avoid visible seams.
Tip: Follow the grain direction on wood doors for consistent adhesion. - 6
Apply first coat of primer
Use even strokes with a brush or roller to avoid lap marks. Allow to dry according to the product’s specifications, typically several hours or overnight for several coats.
Tip: Inspect for bare patches and touch up as needed. - 7
Apply base color coats
Apply thin, even coats of exterior acrylic latex paint. Allow each coat to dry fully before applying the next; two light coats are better than one heavy coat.
Tip: Work from top to bottom to prevent drips on finished areas. - 8
Finish with a second coat and cure
Apply a second coat for depth and durability. Let the paint cure in dry conditions before reattaching hardware and exposing the door to weather.
Tip: Avoid rapid temperature changes immediately after painting. - 9
Reattach hardware and perform touch-ups
Carefully reattach any removed hardware and inspect for drips or missed spots. Perform any minor touch-ups as needed and ensure proper alignment of tracks and seals.
Tip: Keep a small touch-up kit handy for future maintenance.
Got Questions?
What type of paint should I use for exterior garage doors?
Use exterior acrylic latex paint with a durable finish; pair it with a rust-inhibiting primer for metal doors and a bonding primer for aluminum. Avoid interior paints that aren’t designed for outdoor exposure. Always choose a sheen that balances washability with masking of surface imperfections.
For exterior doors, pick an exterior acrylic latex with a rust-inhibiting primer if metal, or a bonding primer if aluminum. Exterior paints are best; avoid interior formulas outdoors.
Can I paint over existing finish without sanding?
Some surfaces may allow a clean coat-over, but best practice is to lightly sand glossy areas to improve adhesion. For metal doors, a light scuff with 120 grit and cleaning is usually enough before priming. When in doubt, follow the primer’s guidelines for adhesion.
Lightly sand glossy areas and clean before priming; if unsure, follow the primer's instructions for adhesion.
Do I need to remove the door from the tracks to paint it?
Removing the door is optional but often makes the job easier and safer, especially for larger doors. If you keep it on, ensure robust masking and protection of tracks and surroundings. Reassemble carefully after the paint has cured.
If possible, remove the door to paint it; if not, mask well and take extra precautions around the tracks.
How long does drying and curing take between coats?
Dry times vary with moisture and temperature. Plan for at least several hours between coats in mild weather, and longer if conditions are cool or humid. Do not rush the final cure; ensure the finish is fully set before use.
Expect several hours between coats in good weather, longer in humidity or cold.
Is spray painting better than brushing?
Spraying can produce a smoother finish and faster coverage on large flat surfaces, but it requires more masking and ventilation. Brushing or rolling offers control and reduces overspray for DIY beginners. A two-step approach (spray for flat areas, brush for edges) can work well.
Spray can be smoother but needs masking; brushing is easier for beginners.
How should I clean up after painting?
Wipe brushes and rollers clean according to the paint type, store leftover material properly, and remove masking carefully before the paint fully cures. Dispose of any waste according to local regulations and wash all tools promptly.
Clean tools right away, store remaining paint properly, and remove masking once safe.
Watch Video
Quick Summary
- Plan thoroughly before starting
- Prime and sand properly for durable adhesion
- Choose materials matched to door type
- Paint in suitable weather and follow cure times
- Finish with inspection and touch-ups
