LiftMaster Jackshaft Garage Door Opener: Complete Guide
Learn to diagnose, install, and maintain a LiftMaster jackshaft garage door opener with practical steps, safety notes, and maintenance tips from GarageDoorAdjust.
Installing a LiftMaster jackshaft garage door opener gives wall-mounted power, quiet operation, and more ceiling space for storage. This guide covers compatibility, essential safety precautions, step-by-step installation, wiring basics, and routine maintenance to keep your opener running smoothly. Follow the manufacturer instructions, observe lockout procedures, and confirm safety sensors are aligned after installation.
What is a LiftMaster Jackshaft Garage Door Opener?

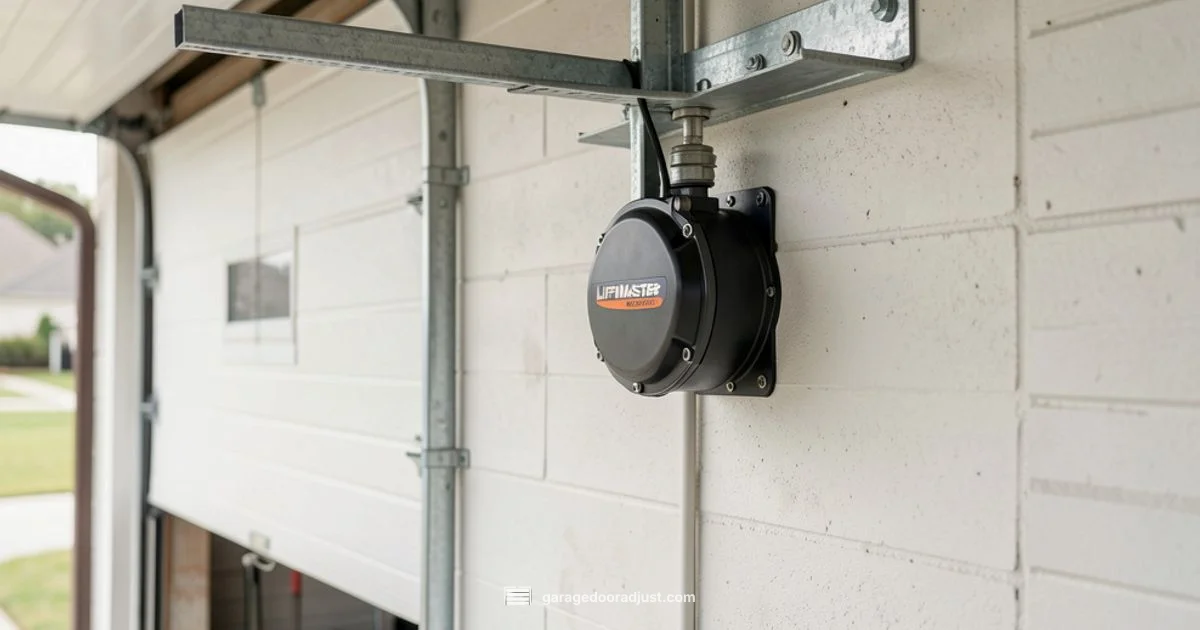

A LiftMaster jackshaft garage door opener is a wall-mounted motor that drives the door through a torque shaft instead of a belt trolley on the ceiling. This arrangement keeps the motor out of sight, reduces ceiling clutter, and tends to produce lower operating noise. For homeowners, understanding how a jackshaft integrates with a torsion spring system helps with correct installation and safe operation. The GarageDoorAdjust team notes that when installed correctly, jackshaft models engage the torsion shaft directly, control command signals precisely, and provide reliable reversal and safety features. Understanding the core components—mounting bracket, torque shaft, limit switches, and safety sensors—helps you plan a safe, correct installation and a straightforward maintenance routine.
Planning and Compatibility: What to Check
Before you begin, confirm your door type, torsion spring arrangement, and mounting surface. Jackshaft systems are commonly paired with standard torsion springs and track layouts, but not all doors are compatible. Check that your ceiling joists can bear the additional load, and ensure there is a clear path for wiring from the control unit to the power supply. The GarageDoorAdjust analysis emphasizes that starting with a compatibility check saves time and reduces risk during installation. If any component looks worn or mismatched, pause and reassess or consult a professional.
Why LiftMaster Jackshaft May Fit Your Garage
A jackshaft opener can deliver smooth, quiet operation and increase headroom for storage thanks to its wall-mounted design. The system directs torque through the door’s torsion shaft, which can improve balance and reduce belt or chain wear on the operator. However, it places more emphasis on precise alignment and solid mounting than ceiling-mounted designs. The GarageDoorAdjust team highlights that proper torque alignment and secure anchoring are essential for dependable performance and safety.
Safety First: Key Precautions and Codes
Dealing with torsion systems means potential hazards including sudden spring movement and pinch points. Always disconnect power before touching any components, wear protective gear, and use a lockout/tagout procedure. Confirm that safety sensors (photo-eye) and auto-reverse functions are properly calibrated after any adjustment. Many regions require electrical work to meet local codes, so consider consulting an electrician if you’re uncertain about wiring or circuit protection.
Maintenance and Troubleshooting: Keeping It Reliable
Regular maintenance helps prevent failures. Keep the torque shaft clean, lubricate moving parts per the manufacturer’s recommendations, and verify that brackets remain tight. If the door sounds off or won’t respond, inspect the limit switches and safety sensors first, then follow the step-by-step troubleshooting guide in the user manual. The GarageDoorAdjust approach emphasizes documenting each maintenance activity so you can notice degradation patterns over time.
Summary: When to Call a Pro and What You’ll Solve
Some installations are best left to professionals, especially when torsion springs or electrical wiring are involved. If you experience persistent misalignment, unusual noises, or a project that requires rebalancing the door, a professional technician can save time and reduce risk. The GarageDoorAdjust team recommends weighing the pros and cons, following the manufacturer’s instructions, and scheduling periodic inspections to maintain peak performance.
Tools & Materials
- Jackshaft opener kit (LiftMaster compatible)(Includes motor unit, drive shaft, mounting hardware.)
- Wall mounting brackets(Heavy-duty brackets rated for torsion system loads.)
- Torque brackets and fasteners(Ensure screws/bolts are corrosion-resistant.)
- Drill with masonry and wood bits(Use for pilot holes and bracket mounting.)
- Screwdrivers (Phillips and flat)(Assorted sizes for bracket and cover screws.)
- Wrenches and socket set(Torque specs from manual must be followed.)
- Level and measuring tape(Accurate alignment prevents binding.)
- Voltage tester(Verify power is off before wiring.)
- Wire nuts, electrical tape, and wire strippers(Safe electrical connections.)
- Lubricant appropriate for metal gears(Apply as directed in manual.)
- Safety gear (gloves, safety glasses)(Protect hands and eyes during install.)
Steps
Estimated time: 3-5 hours
- 1
Verify compatibility and safety
Start by confirming door type, torsion system, and mounting surface. Review the LiftMaster jackshaft installation manual for required clearances and weight limits. If any component is unclear or worn, pause and consult a pro.
Tip: Document door measurements before you modify any hardware. - 2
Power down and isolate the door
Turn off the main power to the garage and lock out circuits as needed. Use a voltage tester to ensure no current is present before touching wiring or controllers.
Tip: Wear gloves to protect against sharp edges during wiring. - 3
Mount jackshaft and brackets
Attach the jackshaft unit to the wall using the provided brackets. Ensure the unit is level and the drive shaft aligns with the torsion shaft. Tighten fasteners to the manufacturer’s torque specs.
Tip: Use a level and pre-drill holes for accurate alignment. - 4
Connect drive belt and control wiring
Install the belt following the manual, and route control wires to the operator terminal. Make sure all connections are secure and insulated. Program the control and ensure the limit switches are accessible.
Tip: Double-check belt tension after initial test run. - 5
Test balance, sensors, and limits
Reconnect power and perform a controlled test. Check automatic reversal with a small obstacle, sensor alignment, and travel limits. Rebalance if the door drifts or binds.
Tip: Run the test in a closed and then open position to confirm full range. - 6
Finalize installation and maintenance plan
Secure all covers, update the user manual, and schedule regular inspections. Create a quick maintenance routine for lubrication, bolt checks, and sensor cleanliness.
Tip: Keep a log of service dates for warranty eligibility.
Got Questions?
Is a LiftMaster jackshaft opener compatible with all garage doors?
Compatibility depends on the door type, torsion system, and mounting surface. Check the manufacturer's guidelines and consult a pro if you’re unsure.
Compatibility depends on your door and torsion setup; check the manual and consider a pro if unsure.
Do I need an electrician to install a jackshaft opener?
Electrical work should meet local codes. If you’re comfortable with wiring and proper safety, you can proceed; otherwise hire an electrician.
If you’re confident with wiring and local codes, you can proceed; otherwise hire a pro.
What safety features should I test after installation?
Test auto-reverse, photo-eye sensors, and door limits. Ensure sensors align and the door reverses on contact.
Test auto-reverse, sensors, and limits; ensure proper alignment.
How often should I lubricate and inspect?
Lubricate moving parts per the manual and inspect mounting bolts and tracks every 6-12 months, or after heavy use.
Lubricate as the manual says and inspect every 6-12 months.
Can I convert an existing chain/belt opener to jackshaft?
Yes, with a compatible jackshaft kit, but verify door weight, torque, and wiring requirements. In some cases, professional installation is advised.
Yes with a compatible kit, but verify specs; consider a pro.
Watch Video
Quick Summary
- Verify compatibility before starting work
- Follow safety protocols to prevent injuries
- Align and tighten brackets accurately
- Test sensors and limits thoroughly
- Document maintenance for longevity
