Garage Door Rubber Threshold: Install, Replace, and Maintain
Learn how to install or replace a garage door rubber threshold, seal out drafts, moisture, and pests, and maintain a durable seal with a practical, step-by-step approach.
By following this guide, you will install or replace a garage door rubber threshold to seal out drafts, water, and pests, restore door alignment, and improve energy efficiency. You'll measure, cut, and secure the threshold with weather-resistant hardware, test clearance, and adjust as needed. The steps cover safety, tool setup, and precise fitting for a durable seal.

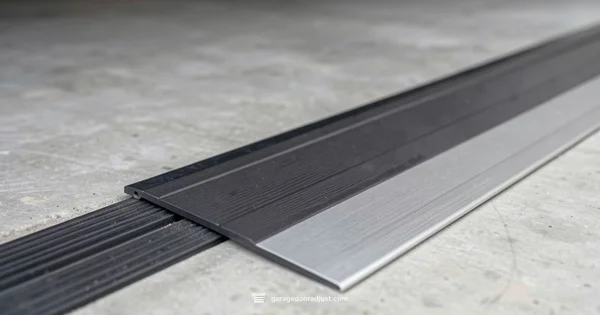

What a garage door rubber threshold does
The rubber threshold at the bottom of a garage door serves several essential roles. It seals the gap between the door and the floor, preventing drafts, rainwater, dust, and pests from entering the garage. A good threshold also works with the door’s weatherstripping to improve insulation and energy efficiency. Over time, exposure to sun, moisture, and traffic can cause the seal to crack, flatten, or become stiff, diminishing its effectiveness. When you inspect your threshold, look for cracks in the rubber, sections that are no longer flush with the floor, or loose ends where moisture can seep in. If your threshold is pre-cut, verify that it matches your door width; if it’s a roll or longer piece, plan to trim it for a precise fit. The installation style matters as well: some thresholds screw into a track or screw holes along the frame; others sit directly on the floor and rely on adhesive or endcaps to stay put. This guide focuses on standard rubber thresholds that fit most single- or double-car garages and emphasizes safety, proper measurement, and clean fit. A well-installed threshold reduces cold spots and helps keep your garage dry, especially after heavy rain or snow.
Materials, fit, and common configurations
Garage door rubber thresholds come in several configurations: full-length sill thresholds that span the entire door width, and shorter end-caps you install at the door sides. Material choices include EPDM rubber, vinyl, or molded rubber blends; EPDM tends to be durable in temperature swings, while vinyl can be more pliable for tight gaps. When choosing a threshold, check the door width and the floor type (concrete, tile, or epoxy). Some thresholds are designed to be flush with a concrete slab, others are raised slightly to accommodate rough floors. End caps and transition pieces help seal joints where the threshold meets vertical jambs. If you’re replacing, you’ll decide between an adhesive-only installation, a screw-fixed variant, or a hybrid approach that uses screws for security with an adhesive seam. Many homeowners prefer pre-cut thresholds sized to common door widths, but best results come from measuring your door opening and cutting or trimming to fit. Regardless of style, ensure the threshold provides a smooth, continuous surface across the doorway so the door can seal evenly when closed. Also consider any maintenance: some thresholds have removable inserts for cleaning or replacement.
Signs it’s time to replace vs repair
Before buying a new threshold, look for telltale signs that the seal has worn beyond simple maintenance. Flattened or cracked rubber reduces compression and allows cold air and moisture to pass under the door. Water intrusion around the sill after rainfall or snowmelt is another red flag, especially near the threshold ends where gaps collect debris. If you notice persistent drafts or an obvious rise in humidity in the attached garage, a replacement may be the best long-term solution. Loose or separated ends indicate the threshold is no longer securely seated and may require resealing or overall replacement. For warped or misaligned doors, threshold replacement alone may not fix the problem; you may also need adjustments to the door track, springs, or weatherstripping. If you’re unsure, perform a simple test: with the door closed, run your hand along the bottom seam to feel for cold air or moisture; if you feel leaks or you detect a damp floor, that’s a strong indicator to replace. In some cases, the threshold can be trimmed to fit but if the underlying floor is uneven, you may need to address the slope or refinish the sill before installing.
Preparation: measuring, cleaning, and safety
Start by cleaning the door sill and the entire threshold area; dust and debris can prevent proper seating and adhesion. Measure the door width with a tape measure at multiple points to account for any non-straight edges, and note any high spots on the concrete floor. If you’re using a roll, unroll and lay it flat away from the door; allow it to relax to minimize warping. Gather the tools you’ll need: a sharp utility knife or threshold cutter, a ruler or straight edge, a marker, a caulk gun with weatherproof sealant, screws or adhesive appropriate for your threshold, and protective gloves and eye protection. Make sure the door is in the closed position and disconnected from any power source if you’re working near the opener to avoid unexpected movement. If you’re replacing an old threshold, remove it carefully, scrape off old adhesive, and clean the sill thoroughly before fitting the new piece. Finally, check the floor surface for cracks or raised patches; addressing these defects will help the new threshold seat evenly.
Step-by-step overview of installation options
There are several viable installation methods for a rubber threshold, depending on the door and floor surface. The most common approach is a screw-fixed threshold with a thin bead of weatherproof sealant along the bottom edge. A second method uses adhesive-backed thresholds that rely on a strong, clean surface and time to cure. A hybrid approach combines both: mechanical fasteners for security and adhesive to seal gaps. No matter which method you choose, the general workflow is similar: position the threshold across the door jamb with clean, level contact, trim to fit, apply sealant at joints and ends, secure with the chosen fasteners, and verify a smooth walking surface. If you are trimming, use a straight edge and cut slowly to avoid chipping. For raised floors or uneven slabs, you may need to shave small amounts and repeatedly test with the door in the closed position. After installing the threshold, recheck the door clearance across the entire width to ensure it seals evenly without rubbing. Finally, install any end caps or transition strips to finish the look and minimize gaps.
Installing with screws, adhesive, or metal track
The final installation step depends on your chosen method. If you’re using screws, align the threshold and mark drill points at regular intervals along the length, then pre-drill pilot holes and drive screws until the threshold sits flush. When using adhesive, spread a thin, continuous bead and press the threshold into place, keeping it level as the adhesive cures. If your door has a metal track or a raised edge, you may need to countersink fasteners and use a compatible sealant to prevent gaps. In all cases, ensure the bottom edge is smooth for a clean seal and that there are no protruding fasteners that could snag the door gasket. After securing, wipe away excess sealant and install end caps to reduce water ingress at the sides.
Post-install testing and maintenance
With the threshold installed, test the door’s movement to confirm it opens and closes without scraping or binding along the threshold. Check for light leaks at all four corners with the door closed, and test with a hose or rain simulation if possible to confirm water resistance. Revisit the seal at the joints after a few days of use and reapply caulk if you notice any gaps or small cracks. Schedule periodic inspections—at least twice a year—to clean the threshold, inspect for wear, and replace any worn end caps. If you live in regions with freezing temperatures or heavy precipitation, consider a seasonal check to ensure the threshold maintains decent compression. Keeping the threshold free of dirt ensures a longer life and more reliable sealing. Finally, document the measurements and the materials used, so future maintenance or replacement is straightforward.
Tools & Materials
- Garage door rubber threshold (EPDM or vinyl)(Choose thickness and length to fit door width; pre-cut thresholds save time)
- Tape measure(Minimum 10 ft; measure at multiple points)
- Utility knife or threshold cutter(Sharp blade; steady hand for clean cuts)
- Marker or chalk line(For precise cut lines)
- Silicone caulk or weatherproof sealant(Apply along edges and joints)
- Screws and drill with bit set(Use corrosion-resistant screws; pre-drill pilot holes)
- Caulk gun(For neat sealant application)
- Safety gear (gloves, eye protection)(Protect hands from sharp edges and debris)

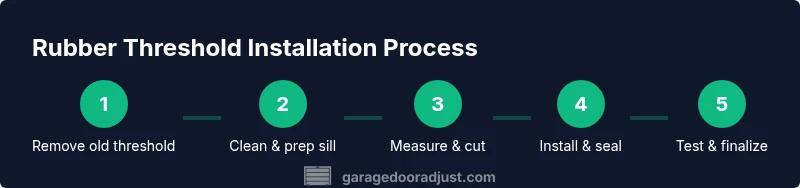

Steps
Estimated time: 60-90 minutes
- 1
Remove old threshold
Carefully lift and pry away the existing threshold. Clean off old adhesive from the sill so the new piece can seat evenly. Inspect the door bottom for warping or damage that might need adjustment.
Tip: Take measurements after removal to ensure you don’t rely on the old size. - 2
Clean and prep the sill
Sweep and wipe the sill to remove dirt and debris. If the floor is slick, roughen it slightly with sandpaper to improve adhesive grip. Dry the area thoroughly before proceeding.
Tip: A clean surface prevents future gaps and makes sealing easier. - 3
Measure the doorway and cut
Measure door width at several points; choose the longest measurement to avoid gaps. Mark the threshold and cut slowly with a sharp utility knife or threshold cutter.
Tip: Cut a little at a time and test fit frequently to avoid overshooting. - 4
Position threshold and mark pilot holes
Place the threshold flush with the door jamb and mark drilling points at regular intervals. Double-check that the surface is level and the bottom edge is continuous across the doorway.
Tip: Use a level to ensure the threshold sits perfectly flat. - 5
Attach threshold
Drive screws at the marked points or apply a thin bead of adhesive along the bottom edge before seating the threshold. Wipe away excess sealant before it cures.
Tip: Avoid over-tightening screws to prevent warping. - 6
Seal edges and install end caps
Apply sealant along the outer edges where the threshold meets the floor and wall. Attach end caps to close gaps and improve moisture resistance.
Tip: End caps dramatically reduce water ingress at the doorway edges. - 7
Test door clearance
Close the door and inspect for rubbing or gaps. Recheck after a few minutes; if needed, trim slightly and re-seal.
Tip: Test with the door in the closed position to confirm full sealing. - 8
Final check and cleanup
Wipe down the area, store tools, and document the materials used for future maintenance. Schedule a periodic check to ensure continued performance.
Tip: Keep a photo record of the threshold for future reference.
Got Questions?
Do I need to remove the old threshold before installing a new one?
Yes. Removing the old threshold ensures a clean, level seating surface for the new piece, which is essential for a good seal. If you leave the old threshold in place, gaps or alignment problems can persist.
Yes. Start by removing the old threshold to ensure a clean, level seating surface for the new piece.
Can I use any threshold with my door and floor?
Choose a threshold that matches your door width, floor type, and climate conditions. Check the product specs for compatibility and cut to fit if needed.
Choose one that fits your door and floor, and check the specs for compatibility.
What maintenance does a rubber threshold require?
Regular cleaning, inspecting for cracks, reapplying sealant when needed, and replacing worn end caps extend its life. Address issues promptly to avoid leaks.
Clean and inspect regularly; replace worn parts as needed.
Will replacing the threshold fix water leaks?
If leaks are caused by wear, a worn seal, or misalignment, replacing or adjusting the threshold can fix leaks. Structural issues with the door may require additional repairs.
Threshold replacement can fix leaks if caused by wear, but other issues may require repair.
How long does threshold installation take?
Most installations take about an hour or two, depending on door condition and fit. Plan for 60-90 minutes for typical setups.
Most installs take about an hour or two, depending on your setup.
Watch Video
Quick Summary
- Measure accurately before cutting.
- Choose the right threshold material for climate and floor.
- Secure and seal for durable performance.
- Test door clearance after installation.
