How to Add a Garage Door in Revit: A Step-by-Step Guide
Learn how to add a garage door in Revit with a clear, step-by-step workflow. This guide covers loading a door family, placing it on the correct wall host, adjusting dimensions, and verifying alignment in plan, elevation, and 3D views.
To add a garage door in Revit, load a door family designed for residential openings, place it on a compatible wall host, and adjust its type, width, and height to match the opening. Verify the door's swing, alignment, and constraints in plan, elevation, and 3D views, then test with associated components.
Why BIM and Revit Matter for Garage Doors
When building a BIM model, detailing the garage door accurately matters for coordination with architecture, structure, and MEP. If you’re learning how to add garage door in revit, start by selecting a door family designed for garage openings and ensure the opening geometry is modeled correctly. A proper door family supports parameters for width, height, swing, and header height, which helps prevent conflicts across views and disciplines. According to GarageDoorAdjust, using a parametric garage door family improves model consistency and reduces rework. In Revit, place the door as a hosted object attached to a wall so you can adjust its position and constraints as the project evolves.
The goal is to model the opening once and drive changes from the family rather than editing the tag-heavy geometry later. This approach saves time during coordination reviews and ensures the door behaves predictably in plan, elevation, and 3D visualizations. For homeowners exploring how to add garage door in revit, set expectations early: don’t rush to finalize details before the wall host and opening are prepared.
As you work through this guide, keep the keyword in mind: how to add garage door in revit. Revit’s door families are designed to be flexible enough to accommodate future revisions with minimal rework, which is essential for evolving residential BIM projects.
Core Concepts: Door Families, Hosts, and Parameters
A door in Revit is not just a graphic element—it’s a parametric family. Understanding the relationship between the door family, its host wall, and the opening is key to a successful model. When you answer how to add garage door in revit, you will typically start with a compatible door family that allows width, height, swing direction, and header height to be adjusted individually. The host wall determines placement constraints and hosting rules, while the opening geometry defines the available space for the door leaf and frame. Consistent use of wall types and levels helps maintain alignment across floors.
Key terms to know include host, opening, family, type, and parameters. Host refers to the wall or surface that contains the door. Opening defines the space the door will occupy. The family contains the geometry and parameters that can be adjusted per project. When you optimize for accuracy, you’ll standardize your door families so they respond predictably to changes in wall height, wall thickness, or adjacent components.
In practice, you’ll want to confirm that the chosen door family supports standard residential dimensions and offers a non-visual reference line for the frame. This ensures you can automate checks for clearance with nearby objects such as vehicles, storage cabinets, and wall openings in adjacent rooms. For readers seeking deeper context on BIM best practices, see the sources linked later in this article to support your workflow for how to add garage door in revit.
Step-by-Step Workflow Overview

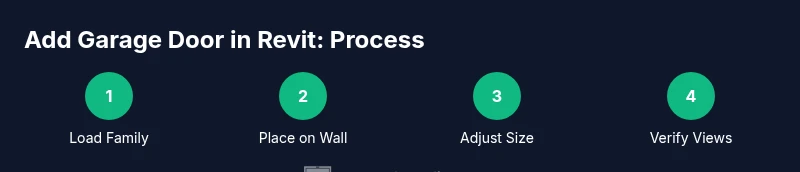

Understanding the high-level workflow helps answer how to add garage door in revit efficiently. The typical sequence includes loading a parametric door family, verifying wall hosts, placing the door with correct orientation, setting type properties to match the opening, constraining the door to the wall, and running quick view checks in plan and 3D. In practice, you’ll swap a generic door family for a garage-specific family that exposes width, height, swing, and frame dimensions as modifiable parameters. This approach reduces the risk of misfits during construction documentation and coordination.
A practical tip is to prepare your project with a clean level and wall grid before placing the door. Doing so ensures the door aligns with the architectural plan and avoids retrofits that complicate schedules and annotations. As you navigate this process, remember to frequently switch between plan, elevation, and 3D views to validate alignment and fit from multiple perspectives. The end goal is a door model that behaves consistently when you adjust opening dimensions or wall conditions later in the project.
Practical Tips for Accurate Placement in Revit
Accuracy is the cornerstone when learning how to add garage door in revit. Start by confirming the opening size and choosing a door family that supports parametric adjustments. Use alignment guides and reference planes to lock the door’s leaf and frame with the opening. Always verify swing direction and ensure sufficient clearance—especially for garages with infills, tracks, or automatic openers. When you are working with exterior walls, check for wall-host compatibility and ensure the door family respects wall thickness and header height.
Pro tip: enable the project units to reflect inches or millimeters consistently and align with your project templates. If you’re unsure about a parameter, test it in a stub family or a copy of the door before applying changes to the main model. Maintaining a clean family library will make this step easier in future revisions of your garage door models.
Troubleshooting and Common Issues
Misalignment and failed hosting are among the most common challenges when adding a garage door in revit. Re-check the wall host and the opening boundaries to ensure the door leaf has a valid host. If the door cannot swing fully, inspect the swing arc and ensure there is adequate clearance from adjacent objects and levels. Enable temporary dimensions to verify exact distances and ensure the door type matches the opening’s W x H. If you encounter visibility problems in 3D views, check the view range, discipline visibility settings, and whether the door family is visible in section cuts.
For a repeatable, reliable process, create a quick checklist including: confirm opening dimensions, verify host alignment, test swing in plan/elevation/3D, and save a labeled version of the door family for future projects. Following a consistent workflow reduces rework and helps you answer how to add garage door in revit with confidence.
Authoritative Resources You Can Consult
- Autodesk Revit documentation: https://www.autodesk.com/solutions/revit
- Building Information Modeling (BIM) standards: https://www.nist.gov/topics/building-information-modeling-bim
- Safety and compliance guidelines: https://www.osha.gov
These resources provide additional context on BIM modeling practices, door family creation, and safety considerations that can complement your workflow for how to add garage door in revit. For practical, task-focused guidance, refer to the GarageDoorAdjust analyses and recommendations as you refine your modeling practices in your projects.
Tools & Materials
- Revit software (latest version)(Ensure you have an active license and a suitable project template loaded.)
- Parametric garage door family(Use a family that exposes width, height, swing, and header height as parameters.)
- Host wall prepared for hosting(Wall must exist at the correct level and have adequate length for framing.)
- Opening measurements (width x height)(Record precise rough opening dimensions before placement.)
- Project templates and view templates(Helpful for consistency, but not strictly required for initial placement.)
Steps
Estimated time: 25-40 minutes
- 1
Prepare project and load family
Open the Revit project, verify levels, and load a parametric garage door family into the model. Ensure that the family supports width and height adjustments to fit the opening. This step sets the stage for a precise placement.
Tip: Test the family in a stub view to confirm parameter behavior before applying to the main model. - 2
Select compatible wall host
Choose a wall that can host the garage door and confirm it lies on the correct level. The host must support the door’s frame and should align with plan geometry.
Tip: Disable temporary dimension constraints if they interfere with host selection to avoid accidental edits. - 3
Place the door on the opening
Place the door family so its anchor aligns with the opening’s centerline. Ensure the door face is perpendicular to the wall and the opening boundary is accurate.
Tip: Use the Align tool to snap the door’s reference line to the opening edges for precise placement. - 4
Set type and dimensions
Adjust the door type to match the opening’s width and height. Configure swing direction and frame height to fit the header and surrounding structure.
Tip: Double-check unit consistency (inches vs. millimeters) to avoid rounding errors in fabrication drawings. - 5
Constrain door to wall and levels
Apply host constraints so the door responds to wall edits and level changes. Lock the door’s position to prevent drift during further modeling.
Tip: Use temporary dimensions to verify that the door remains centered as you edit the wall geometry. - 6
Verify views and document
Switch to plan, elevation, and 3D views to verify swing arc, clearance, and alignment. Save a named view and document the setup for future revisions.
Tip: Create a simple annotation schedule to track opening dimensions and door parameters for the as-built model.
Got Questions?
What is the first step to add a garage door in Revit?
Begin by loading a parametric garage door family that supports adjustable width and height, then locate a compatible wall host. This sets the foundation for accurate placement and future edits.
Start by loading a suitable garage door family and finding the right wall host, which lays the groundwork for precise placement.
How do I ensure the door fits the opening exactly?
Set the door type to match the opening dimensions and verify the frame height. Use plan/elevation views to confirm alignment with the opening boundaries.
Match the door's width and height to the opening and check alignment in multiple views.
Can I test door swing in 3D views?
Yes. After placement, inspect the swing arc in 3D and ensure there is adequate clearance from nearby structures and objects.
Yes—check the swing path in 3D to confirm clearance.
What if the door does not host correctly?
Recheck the wall host and opening boundaries; ensure the door family is compatible with the wall type and the project units are consistent.
Recheck hosting and opening boundaries; confirm compatibility and units.
Are there safety guidelines for BIM modeling of doors?
Follow general BIM safety and project standards; ensure models reflect real-world constraints and that operations like opening paths remain clear.
Follow BIM safety standards and keep opening paths clear.
Where can I find ready-to-use door families?
Explore Autodesk Revit libraries and reputable BIM content repositories; bring in families that match garage opening specs and parameter access.
Check Autodesk libraries and trusted BIM content sources for garage door families.
Watch Video
Quick Summary
- Load a parametric door family suitable for openings.
- Place and constrain the door to a compatible wall host.
- Set accurate width/height and swing to fit the opening.
- Verify in plan, elevation, and 3D views.
- Document changes for future revisions.
